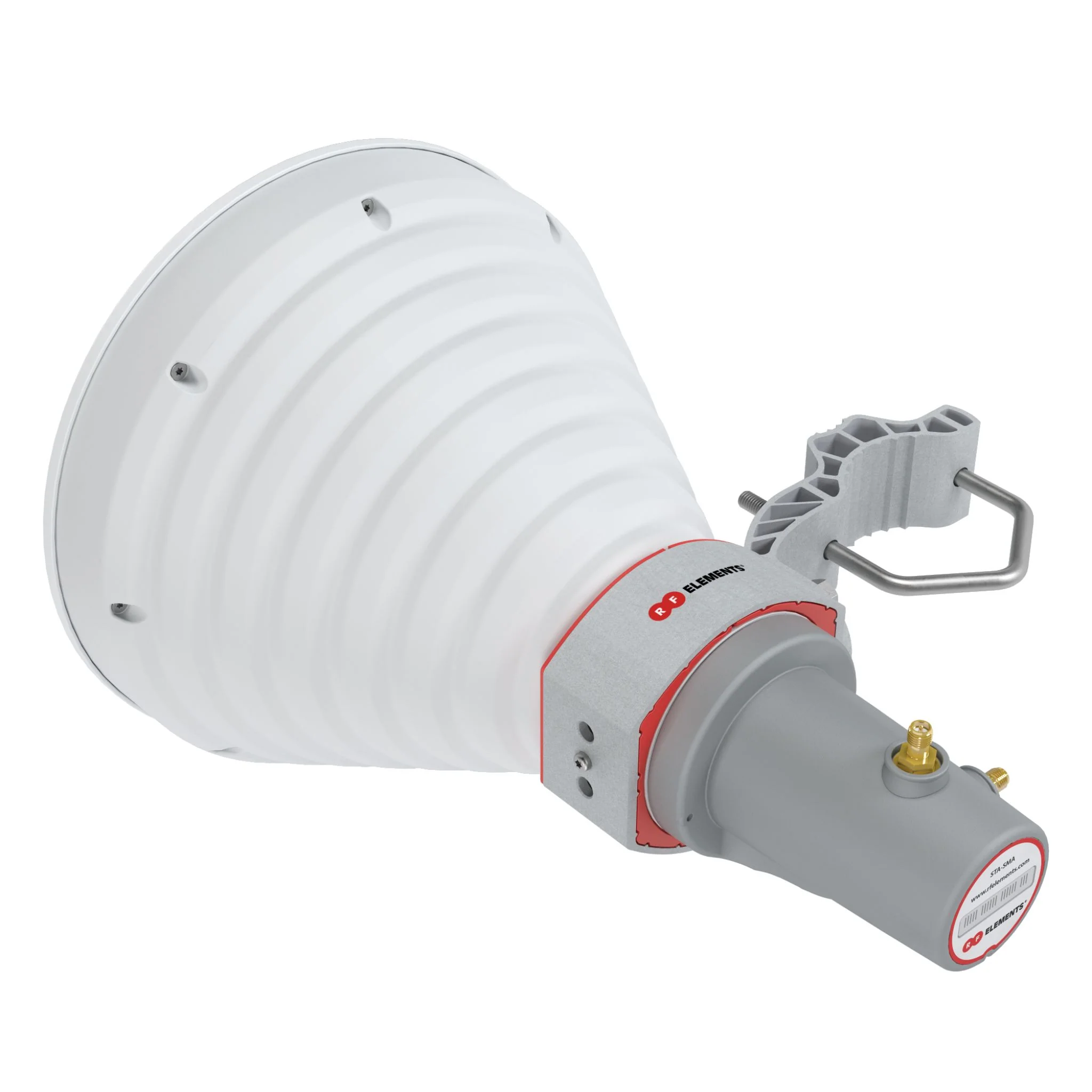

RF elements StarterHorn 5GHz 30 Degree 18dBi Access Point Antenna
Affordable RF elements StarterHorn 5GHz 30 Degree 18dBi Antenna- perfect for APs. Easy to install and compatible with Ubiquiti and other third-party radios.
Tech Specs
Click here for the RF Elements STH-30-USMA datasheet.
| Device Specifications | |
|---|---|
| Product ID | STH-30-USMA |
| Gain | 18 dBi |
| Antenna Connection | Waveguide Port |
| Radio Connection | 2 × RP-SMA female |
| Environmental | IP55 |
| Operating Temperature | -30°C to +55°C (-22°F to +131°F) |
| Wind Survival | 160 km/h |
| Wind Loading | 23 N at 160 km/h |
| Frequency Range | 5150 – 5950 MHz |
FAQs
Q1: What is the RF Elements StarterHorn™ 30° USMA and what is it used for?
A: The RF Elements StarterHorn™ 30° USMA (STH‑30‑USMA) is a high‑performance outdoor horn antenna with a 30° beamwidth, designed for point‑to‑multipoint (PtMP) and sector coverage applications where focused and reliable wireless signal distribution is needed.
Q2: What beam pattern does the StarterHorn™ 30° USMA antenna have?
A: This antenna features a 30° horizontal beamwidth, which provides a balanced combination of reach and sector coverage ideal for medium‑range wireless connectivity and stable sector links across a defined coverage area.
Q3: What does the USMA mounting mean for this antenna?
A: The USMA mount refers to the standard mounting interface that allows the StarterHorn™ 30° antenna to attach securely to a pole or mast. It’s designed for fast, reliable installation in outdoor wireless networks.
Q4: What applications is the StarterHorn™ 30° USMA best suited for?
A: It is ideal for wireless ISP base stations, campus networks, fixed‑wireless access points, and other outdoor PtMP deployments where a focused sector coverage pattern improves signal reach and network performance.
Q5: What physical and environmental features does the StarterHorn™ 30° USMA offer?
A: The StarterHorn™ 30° USMA is built with a rugged outdoor housing engineered to withstand harsh weather conditions. It supports pole or mast mounting, ensuring dependable and long‑lasting wireless performance in diverse environments.
Resources
