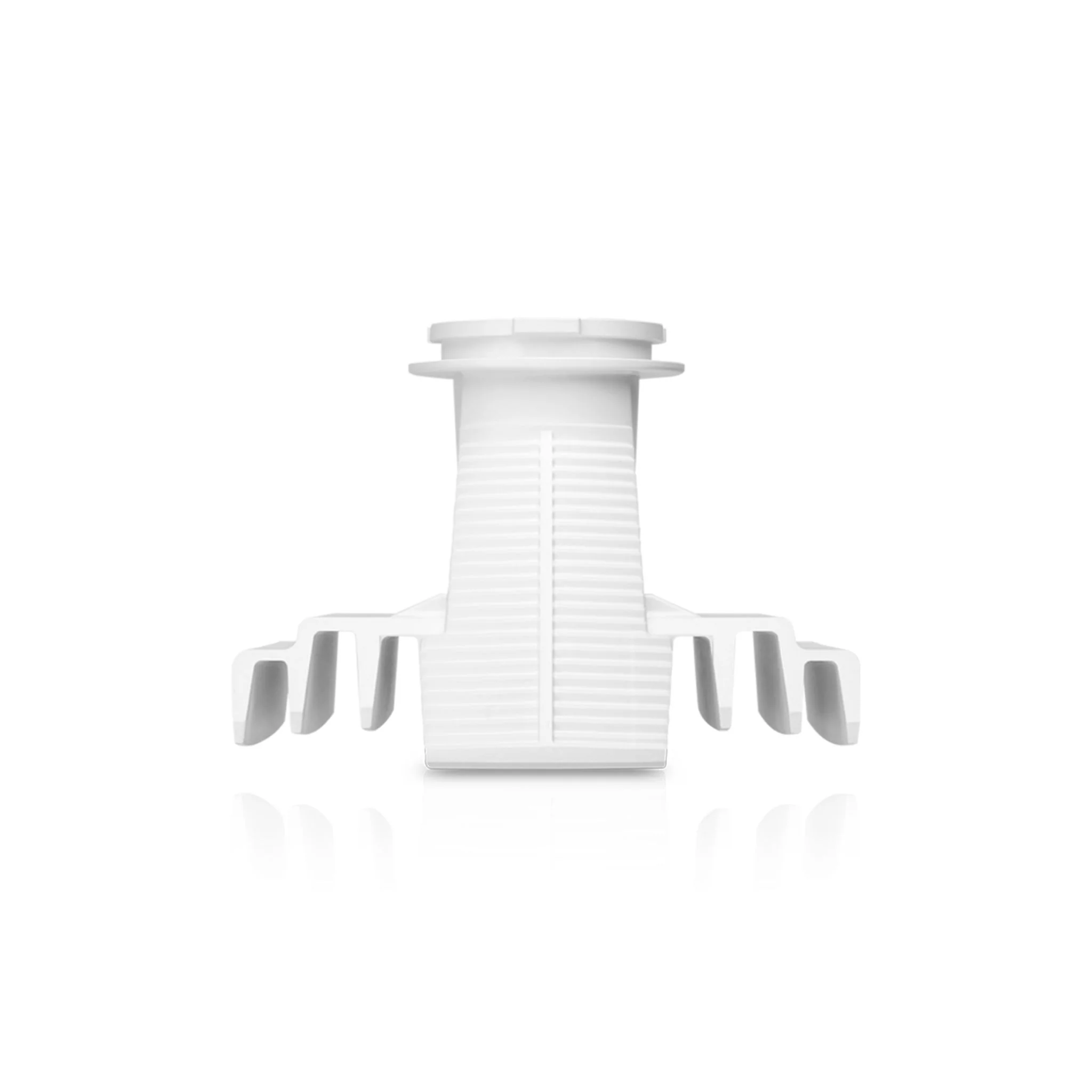

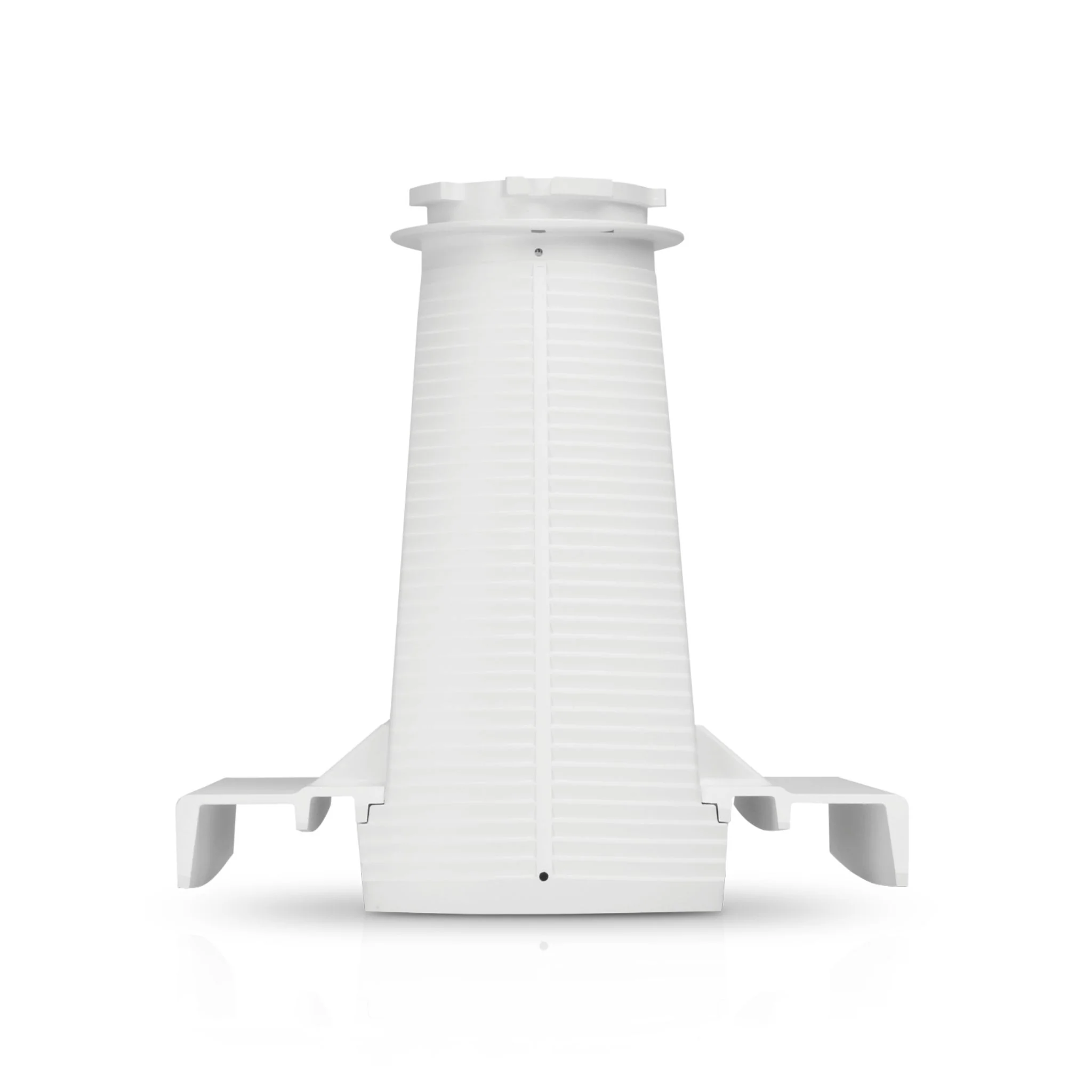

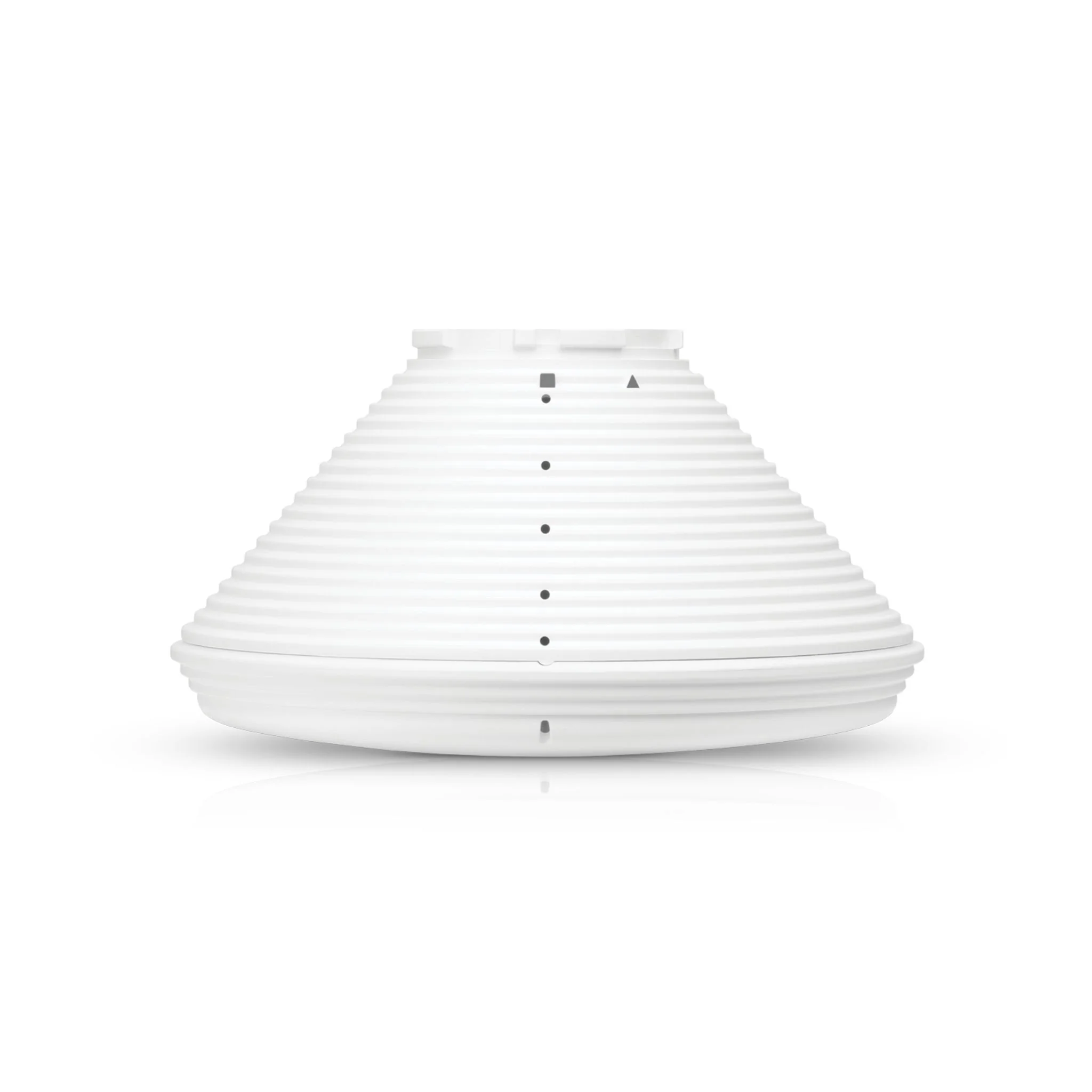

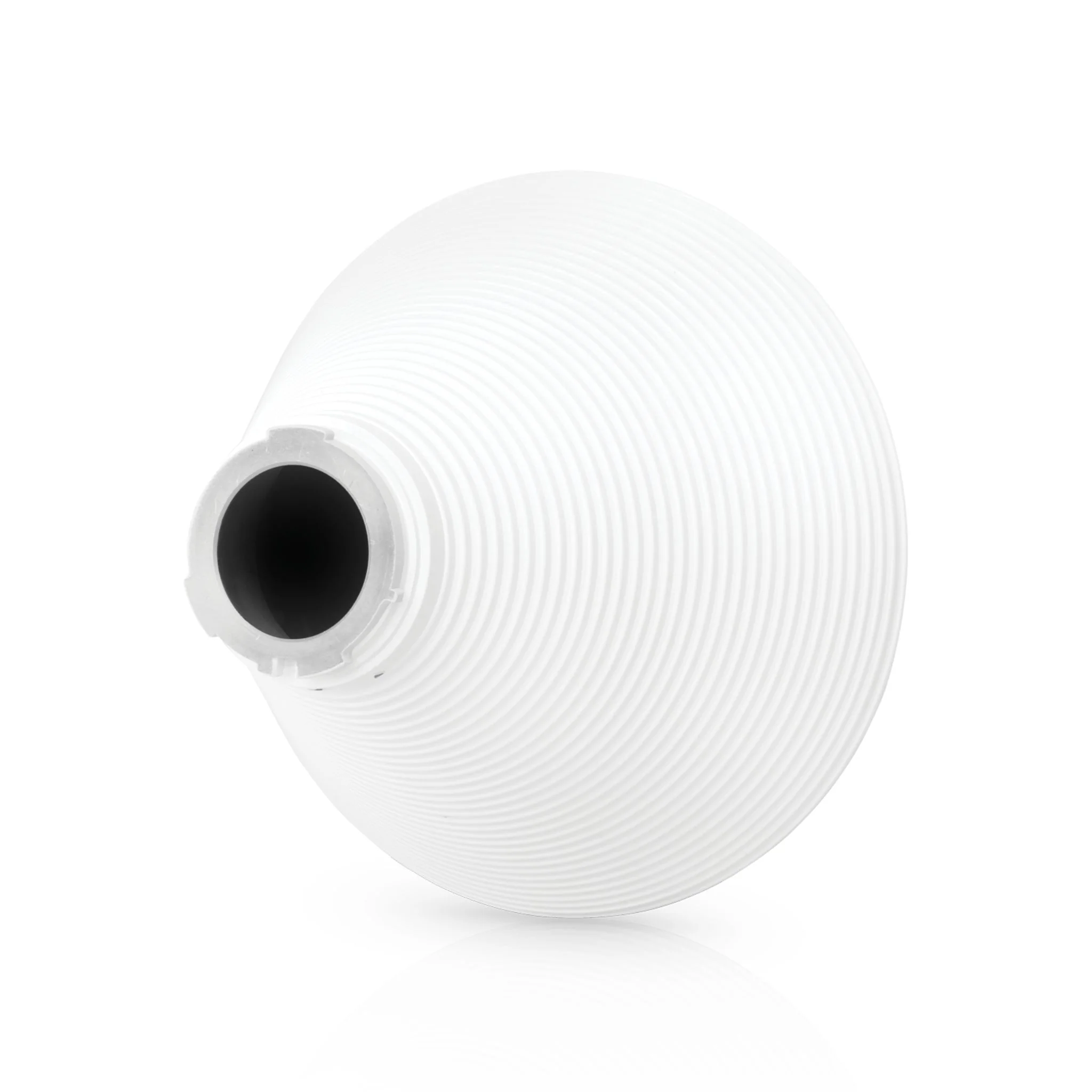

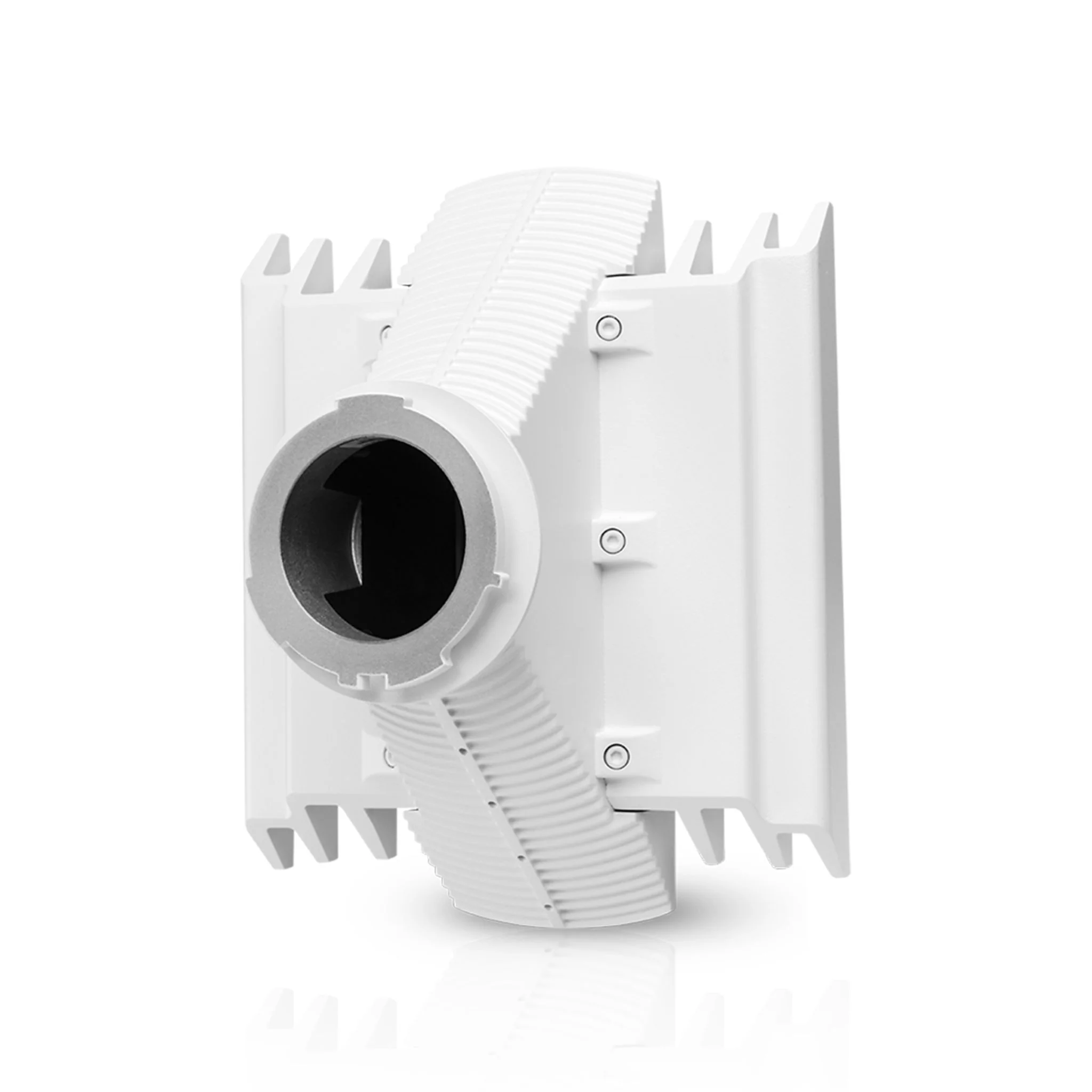

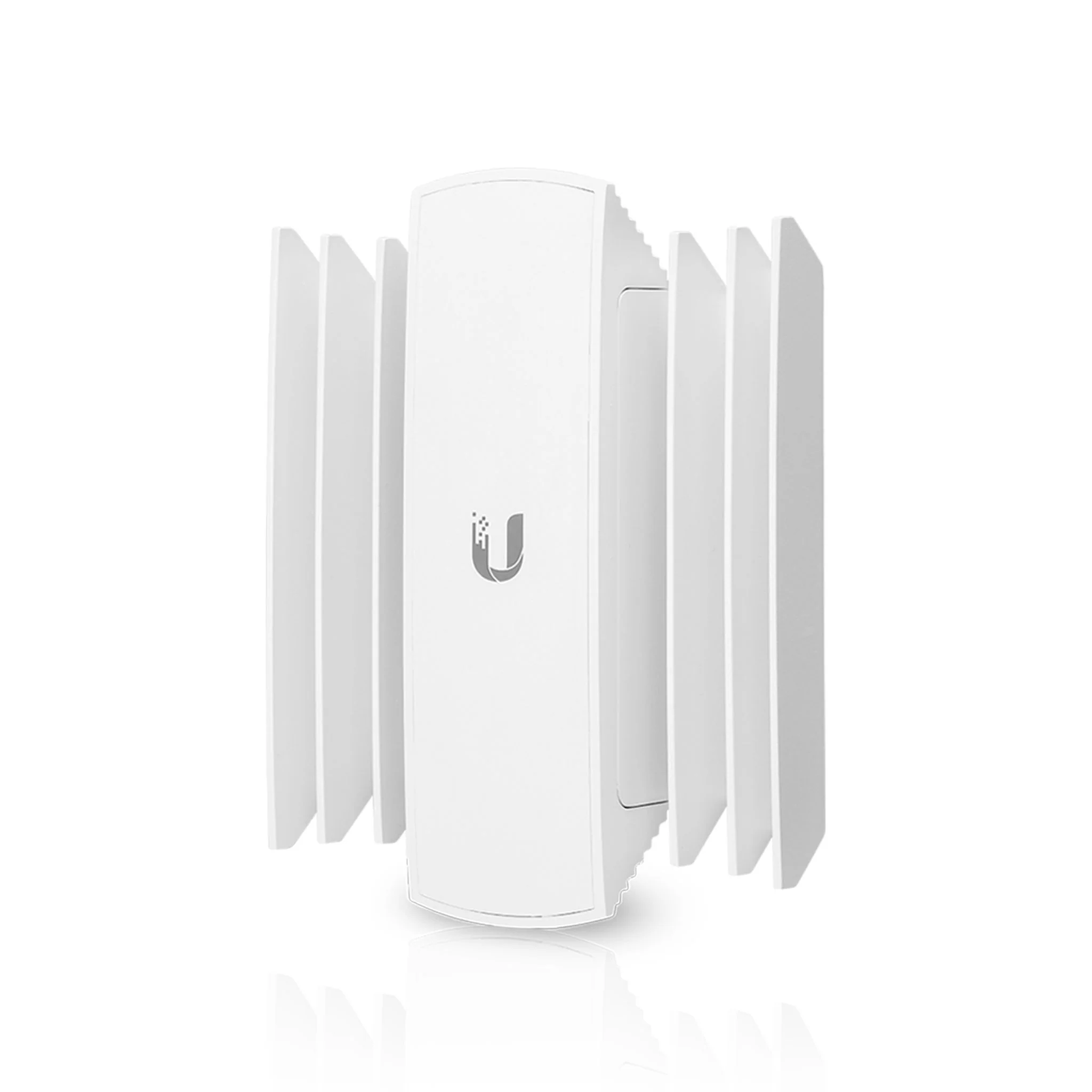

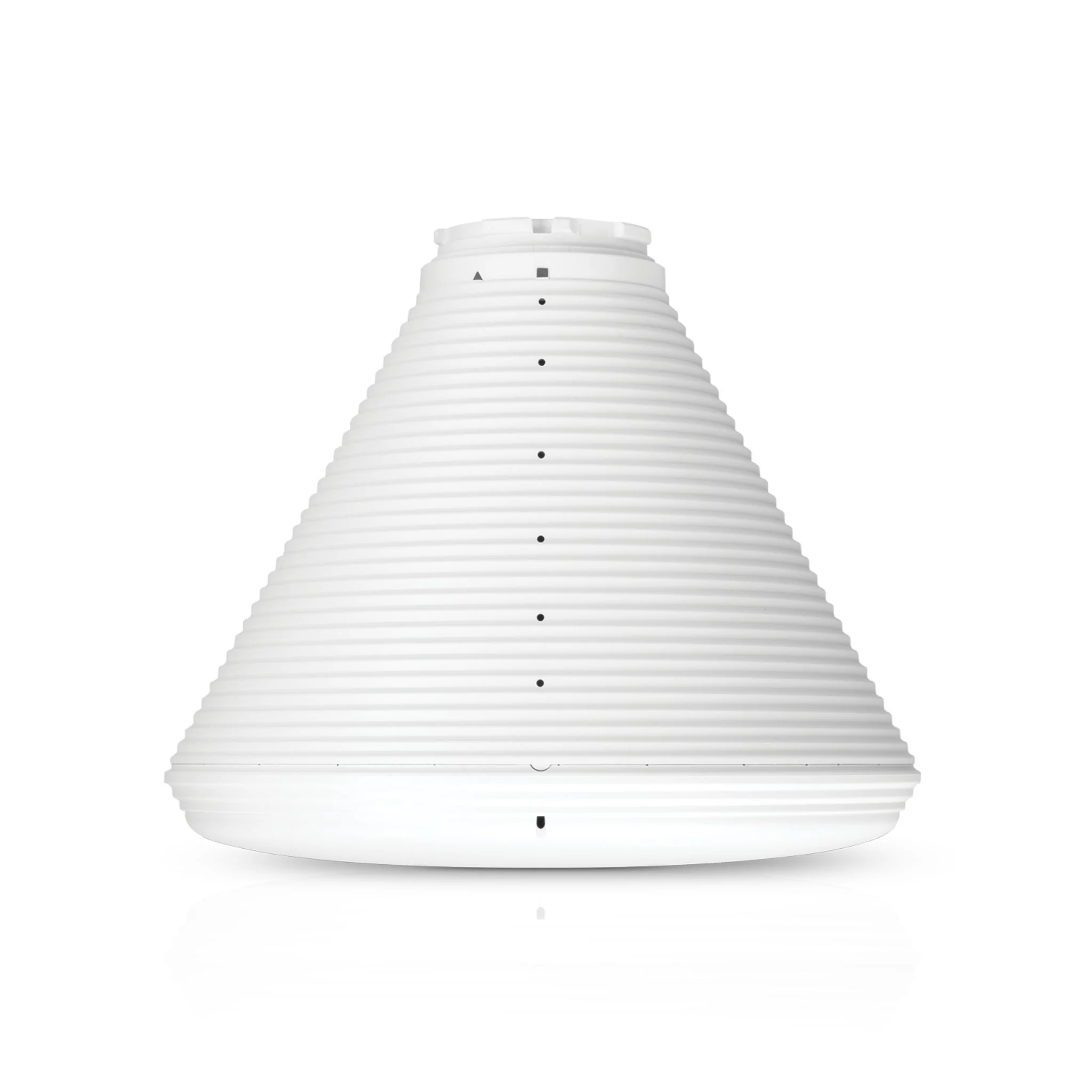

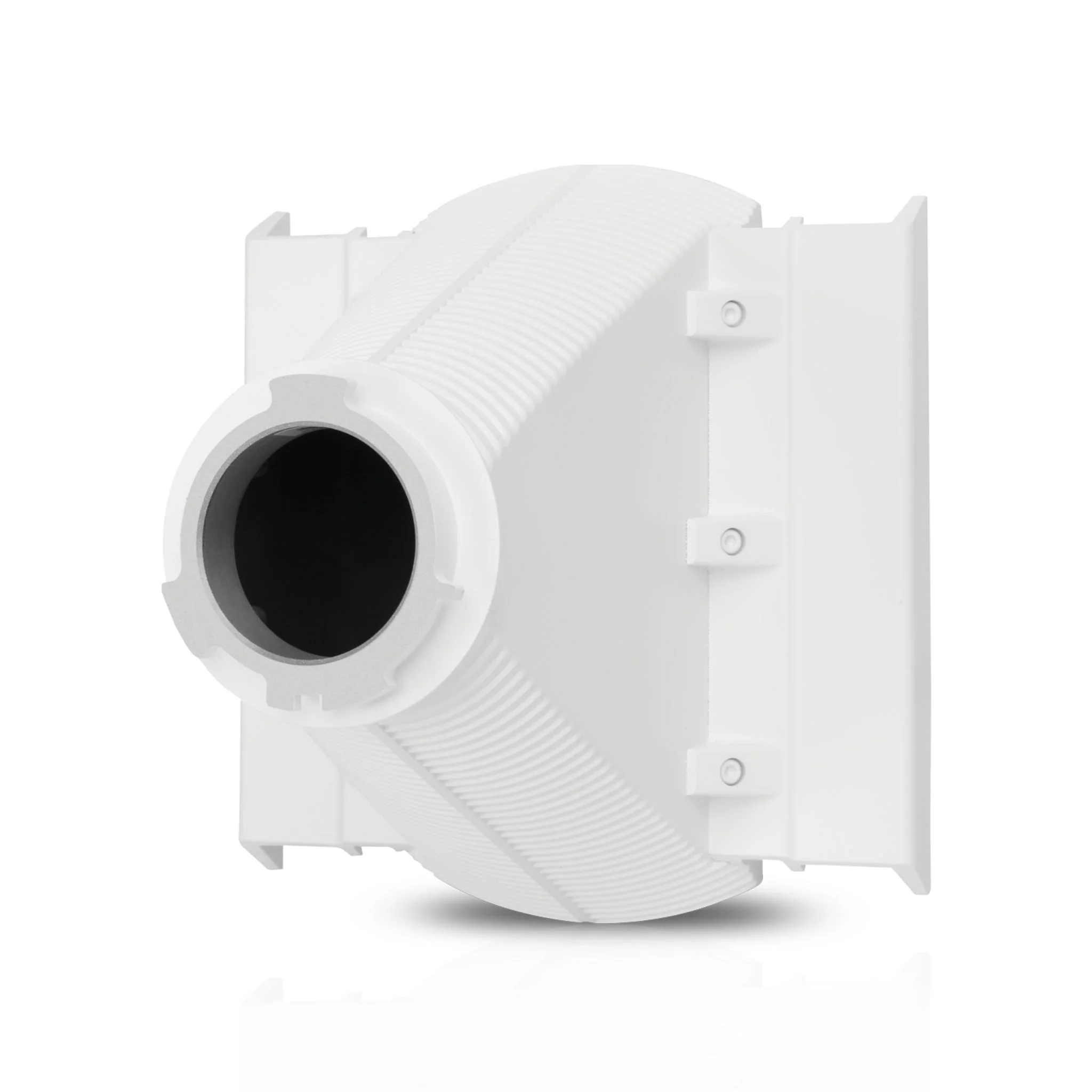

Ubiquiti airMAX PrismStation Horn
The Ubiquiti PrismStation Horn 30º offers precise radiation angles and is compatible with Ubiquiti's IsoStation and PrismStation radios. This optional antenna features a horn-based design for improved beam-shaping and significantly reduced side lobes, resulting in enhanced co-location performance.
Tech Specs
Click here for the Ubiquiti airMAX PrismStation Horn 30º datasheet.
| Device Specifications | |
|---|---|
| Horn-5-30 | |
| Dimensions | Ø 221.4 x 184.2 mm (8.71 x 7.3") |
| Weight | 1.1 kg (2.4 lb) |
| Supported Frequency Range | 5.15 - 5.85 GHz |
| Gain | 19 dBi |
| HPOL Beamwidth | 30° |
| VPOL Beamwidth | 30° |
| Elevation Beamwidth | 30° |
| Maximum VSWR | 1.7:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 56 N @ 200 km/h (12.6 lbf @ 125 mph) |
| Polarization | Dual-Linear |
| Cross-Pol Isolation | 17 dB |
| Horn-5-45 | |
| Dimensions | Ø 175 x 96 mm (6.9 x 3.78") |
| Weight | 1.34 kg (3 lb) |
| Supported Frequency Range | 5.15 - 5.85 GHz |
| Gain | 15.5 dBi |
| HPOL Beamwidth | 45° |
| VPOL Beamwidth | 45° |
| Elevation Beamwidth | 45° |
| Maximum VSWR | 1.7:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 56 N @ 200 km/h (12.6 lbf @ 125 mph) |
| Polarization | Dual-Linear |
| Cross-Pol Isolation | 17 dB |
| Horn-5-60 | |
| Dimensions | 161.6 x 173.3 x 170.9 mm (6.4 x 6.82 x 6.73") |
| Weight | 720 g (1.6 lb) |
| Supported Frequency Range | 5.15 - 5.85 GHz |
| Gain | 16 dBi |
| HPOL Beamwidth | 60° |
| VPOL Beamwidth | 60° |
| Elevation Beamwidth | 30° |
| Maximum VSWR | 2:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 50 N @ 200 km/h (11.2 lbf @ 125 mph) |
| Polarization | Dual-Linear |
| Cross-Pol Isolation | 17 dB |
| Horn-5-90 | |
| Dimensions | 152.1 x 186.8 x 113.2 mm (5.99 x 7.35 x 4.46") |
| Weight | 920 g (2 lb) |
| Supported Frequency Range | 5.15 - 5.85 GHz |
| Gain | 13 dBi |
| HPOL Beamwidth | 90° |
| VPOL Beamwidth | 90° |
| Elevation Beamwidth | 45° |
| Maximum VSWR | 2:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 46 N @ 200 km/h (10.3 lbf @ 125 mph) |
| Polarization | Dual-Linear |
| Cross-Pol Isolation | 17 dB |
| NDAA Compliant | Yes |
FAQs
Q1: What is the Ubiquiti Horn‑5 series used for?
A: Horn‑5 antennas are high-performance 5 GHz beam‑shaping “horn” antennas used for point‑to‑multipoint or sector wireless deployments — ideal for base stations using airMAX, airFiber, PrismStation, or IsoStation radios.
Q2: What beamwidth and gain options are available in the Horn‑5 series?
A: The series includes multiple beamwidth variants — for example, 30°, 45°, 60°, and 90° horizontal beamwidth models — with corresponding antenna gains roughly between 13 dBi and 19 dBi, depending on the model chosen.
Q3: What frequency range and polarization does Horn‑5 support?
A: Horn‑5 supports 5.15 GHz to 5.85 GHz and uses dual-linear polarization, allowing compatibility with standard 5 GHz radios.
Q4: What are the environmental and mounting properties of Horn‑5?
A: The antenna is designed for outdoor use — with a form factor suitable for pole mounting, wind survivability up to high wind speeds (for example models rated up to 200 km/h), and mechanical durability for long-term deployments.
Q5: What radios or devices are compatible with Horn‑5 antennas?
A: Horn‑5 is compatible with Ubiquiti radios such as airFiber LTU, IsoStation (IS‑5AC, IS‑M5), PrismStation (PS‑5AC), and other airMAX/airFiber equipment — enabling easy antenna swaps to tailor beamwidth/gain for different installation scenarios.
