Ubiquiti airMAX 5 GHz, 16/17 dBi Sector

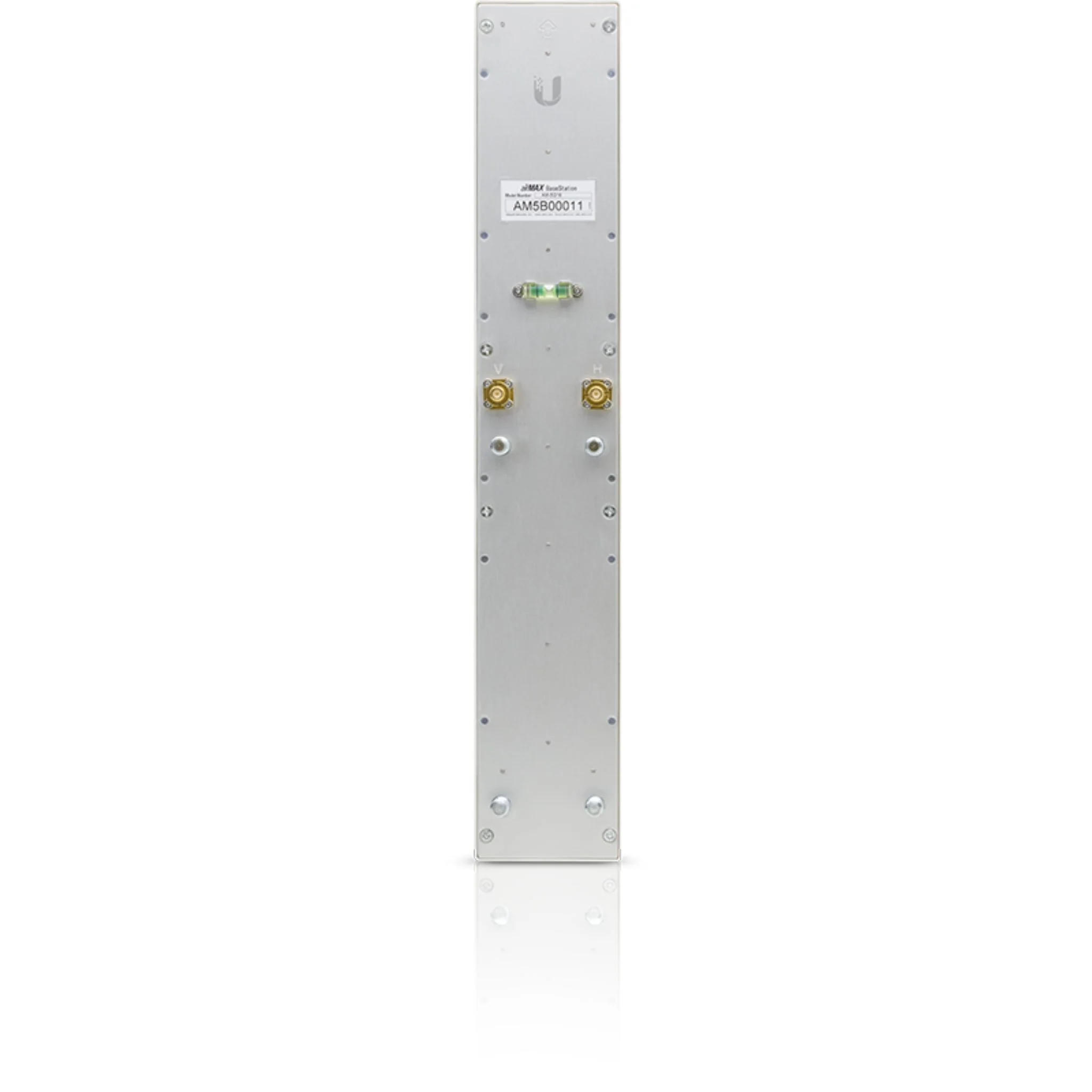

The Dual polarity 5.8 GHz Ubiquiti airMAX 5 GHz, 16/17 dBi Sector antenna is compatible with Ubiquiti Rockets, allowing for fast and effortless set-up. It boasts two SMA RP jack sockets for radio connections and a Rocket mating bracket for secure mounting of the Rocket M5. With two pigtails included, users can easily connect their Rocket M5. It should be noted that these antennas have a built-in 3 degree downtilt, which should be taken into account when aligning them.
Tech Specs
Click here for the AM-5G17-90 datasheet.
| Device Specifications | |
|---|---|
| Mechanical | |
| Dimensions | 367 x 63 x 41 mm (14.4 x 2.5 x 1.6”) |
| Weight | 1.1 kg (2.4 lb) |
| Electrical | |
| Frequency Range | 4.90 - 5.85 GHz |
| Gain | 16.1 - 17.1 dBi |
| HPOL Beamwidth | 72° (6 dB) |
| VPOL Beamwidth | 93° (6 dB) |
| Electrical Beamwidth | 8° |
| Electrical Downtilt | 4° |
| Max. VSWR | 1.5:1 |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 22 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Environmental & Mounting | |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 26 N @ 160 km/h (6 lbf @ 100 mph) |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
| NDAA Compliant | Yes |
FAQs
Q1: What is the Ubiquiti AM‑5G17‑90 and what is it used for?
A: The Ubiquiti AM‑5G17‑90 is an outdoor 5 GHz sector antenna designed for point‑to‑multipoint (PtMP) wireless networks. It provides focused sector coverage when paired with compatible radios, making it ideal for building high‑capacity base station links.
Q2: What frequency range and gain does the AM‑5G17‑90 support?
A: This sector antenna operates across a wide 5 GHz band (typically ~4.9 GHz to ~5.85 GHz) and delivers up to 17.1 dBi gain, offering strong signal reach and reliable performance in wireless broadband installations.
Q3: What coverage pattern does the AM‑5G17‑90 provide?
A: It features a 90° horizontal beamwidth for broad sector coverage with a dual‑polarised 2×2 MIMO design. The vertical beam is shaped to help maintain strong signal distribution across the service area, improving client connectivity and throughput.
Q4: What networking setups is this antenna suited for?
A: The AM‑5G17‑90 is ideal for wireless ISP base stations, campus wireless networks, community broadband, and outdoor fixed‑wireless access deployments where reliable sector coverage and high‑gain wireless distribution are needed.
Q5: What physical and environmental features does this antenna offer?
A: Built for outdoor use, the antenna includes a robust mounting kit and weatherproof elements that support mast or pole installation. The design is intended for long‑term reliability in exposed environments while delivering consistent wireless coverage.
