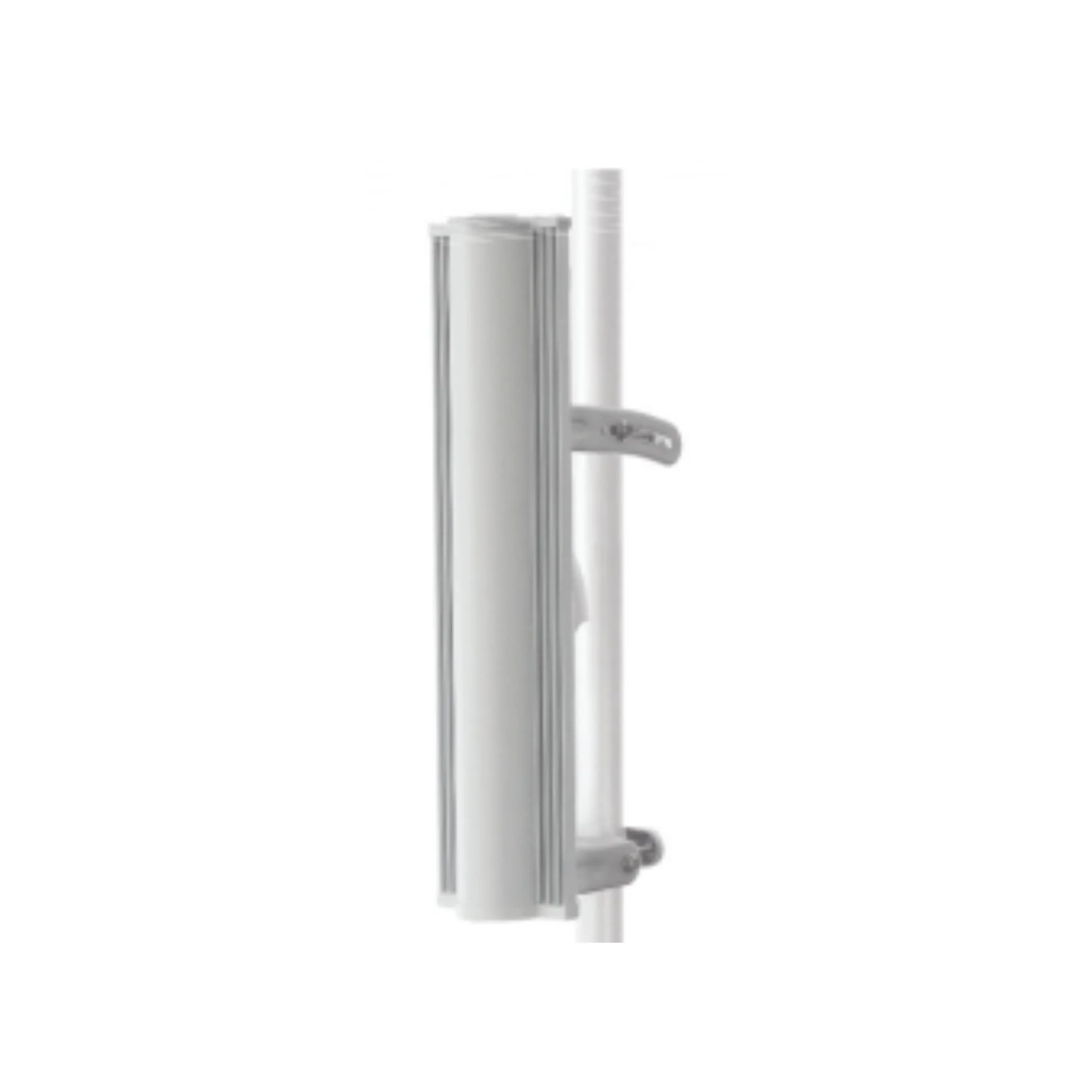

RF elements Sector Carrier Class 5-16 VVH 3x3
The RF elements Sector Carrier Class 5-16 VVH 3x3 meets customer demands for outstanding RF performance, resistance to co-location noise, easy installation, and cost-effectiveness. Their antennas include a revolutionary BackShield system, utilising frequency selective reflectors within the antenna design to reduce side lobes and near-field radiation on the backside.
Tech Specs
Click here for the RF elements Sector Carrier Class 5-16 VVH 3x3 datasheet.
| Device Specifications | |
|---|---|
| Antenna Connection | 3 × RP-SMA on integrated semi-flex pigtails |
| Antenna Type | 5 GHz 16 dBi VVH |
| Environmental | IP55 |
| Temperature | -26°C to +60°C (-15°F to +140°F) |
| Wind Survival | 160 km/h |
| Electrical Downtilt | 0° |
| Pole Mounting Diameter | max 85 mm |
| Weight | 3.1 kg / 6.8 lbs – single unit 4.1 kg / 9 lbs – single unit incl. package |
| Single Unit Retail Box | 115 × 10 × 22 cm |
| Frequency Range | 5450 – 5850 MHz |
| Gain | V1 16.6 dBi / V2 15.9 dBi / H 16.6 dBi |
| Polarization | Triple Linear V1 + V2 + H |
| Azimuth Beam Width -3 dB | V1 76° / V2 76° / H 77° |
| Elevation Beam Width -3 dB | V1 7.5° / V2 7.5° / H 7.5° |
| Azimuth Beam Width -6 dB | V1 102° / V2 102° / H 100° |
| Elevation Beam Width -6 dB | V1 10° / V2 10° / H 10° |
| Front-to-Back Ratio | 30.6 dB (Min.) |
| Polarization Isolation | H-V2 19 dB H-V1 19 dB V2-H 18 dB V2-V1 0 dB V1-H 19 dB V1-V2 0 dB |
| Impedance | 50 Ohm |
| VSWR | Max 1.8 / Typical 1.35 |
| Isolation Between Ports | V1-V2 38 dB V1-H 30 dB V2-H 57 dB |
| Compatible Wireless Platforms | *with EasyBracket™ for ePMP™ **with EasyBracket™ 912 RF elements® StationBox® S, StationBox® S CARRIER CLASS, RockShield™ Cambium Networks™ ePMP™ 1000 Connectorized Radio* MikroTik™ BaseBox**, NetBox**, NetMetal ** Ubiquiti Networks™ UBNT Rocket™ M5, UBNT Rocket™ M5 Titanium UBNT Rocket™ 5ac, UBNT Rocket™ 5ac Prism |
