Ubiquiti PoE to USB-C Adapter

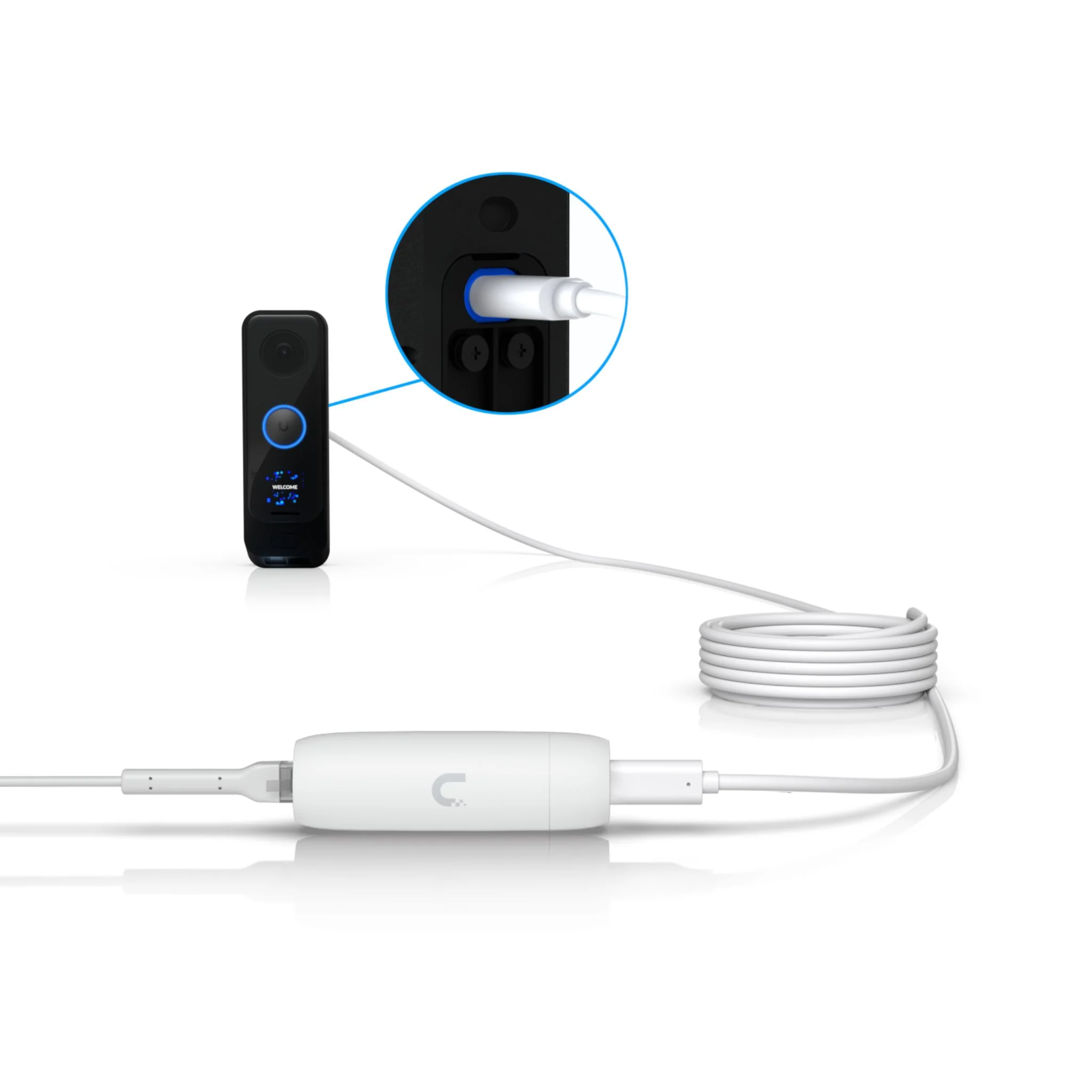

The Ubiquiti PoE to USB-C Adapter allows for the transformation of a Protect WiFi Camera into a wired PoE camera.
Tech Specs
| Device Specifications | |
|---|---|
| Mechanical | |
| Dimensions | Without cable: Ø30.4 x 95 mm (Ø1.2 x 3.7") |
| Weight | 85 g (3 oz) |
| Enclosure Material | Polycarbonate |
| Hardware | |
| Ports | (1) Input: RJ45 (1) Output: USB Type-C |
| Networking Interface | (1) GbE RJ45 port (Data out) |
| Power Method | PoE |
| Input Rating | 48V DC, 0.25A |
| Output Rating | 5V DC, 2A |
| ESD/EMP Protection | Air: ±8kV; Contact: ±4kV |
| Compatibility | Camera G4 Instant (UVC-G4-INS) G4 DoorBell Pro (UVC-G4-Doorbell-Pro) |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
FAQs
Q1: What is the Ubiquiti UACC-Adapter-PoE-USBC used for?
A1: The UACC-Adapter-PoE-USBC is a USB-C Power over Ethernet (PoE) adapter that delivers both data and power to compatible Ubiquiti devices via a single cable.
Q2: Which devices are compatible with the Ubiquiti UACC-Adapter-PoE-USBC?
A2: This adapter is compatible with Ubiquiti devices that support USB-C PoE input, including certain access points, cameras, and networking equipment.
Q3: What is the maximum power output of the Ubiquiti UACC-Adapter-PoE-USBC?
A3: The adapter provides sufficient power for supported devices, following USB-C PoE standards for stable and efficient operation.
Q4: Does the Ubiquiti UACC-Adapter-PoE-USBC support data transfer?
A4: Yes, the adapter simultaneously delivers network data and power over a single Ethernet cable, maintaining high-speed connectivity.
Q5: How do I install the Ubiquiti UACC-Adapter-PoE-USBC?
A5: Simply connect the adapter between your PoE-enabled Ethernet source and the device’s USB-C port. No additional configuration is required.
