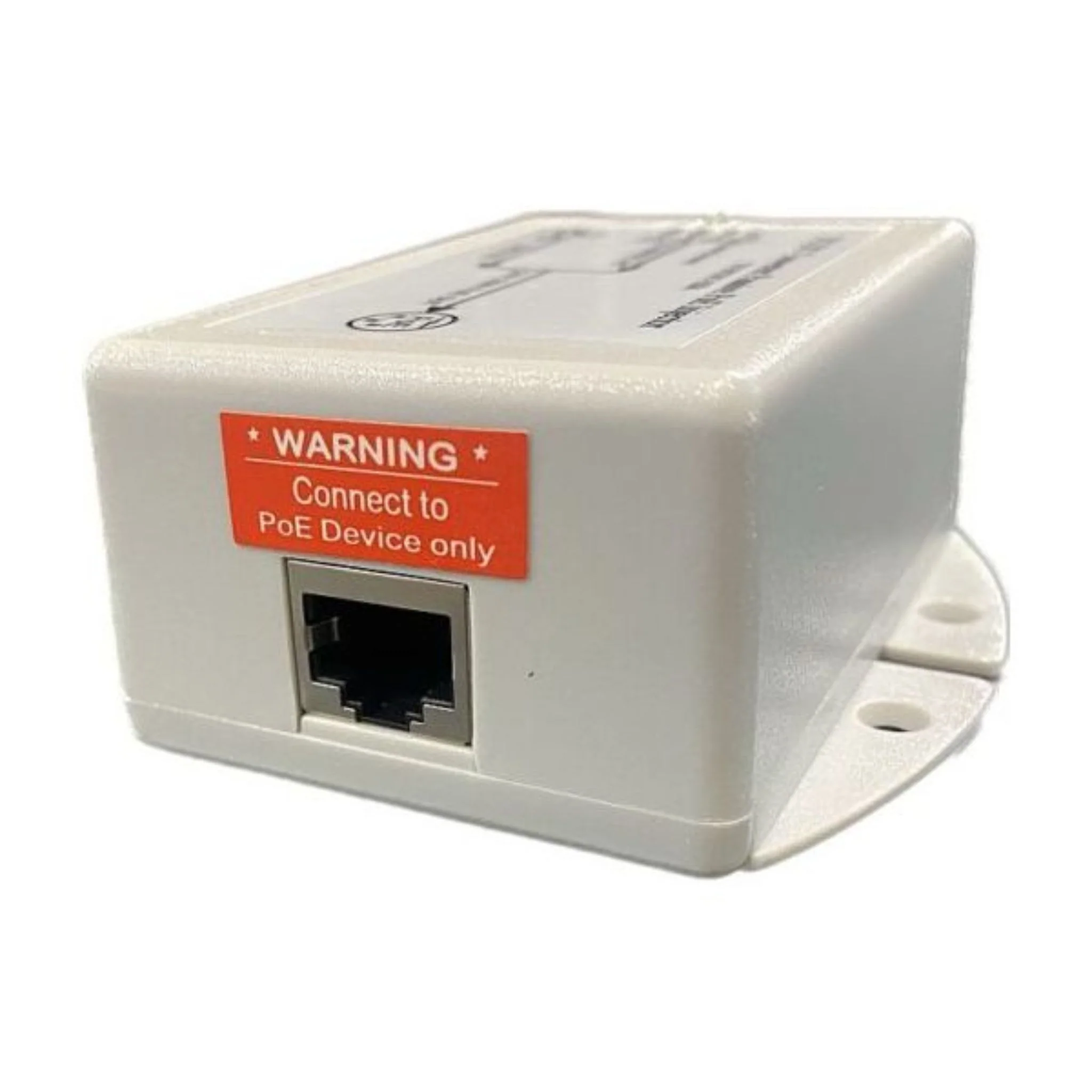

Tycon Systems DC PoE Injector, 10-36VDC IN, 24V 20W GigE PoE OUT - TP-DCDC-1224G
The Tycon Systems TP-DCDC-1224G is a reliable, cost-effective converter that provides 24VDC Gigabit Power Over Ethernet voltage from a 12 or 24V battery system. It has an integrated Gigabit PoE injector and can handle input voltages between 9VDC and 36VDC. With surge, short circuit, and overload protection, it supplies 19W of power on Ethernet pins 4, 5 (V+) and 7, 8 (V-).
Tech Specs
Click here for the Tycon Power TP-DCDC-1224G datasheet.
| Device Specifications | |
|---|---|
| DC Input Voltage | 9VDC – 36VDC |
| DC Input Connector | Removable screw-type compression wire terminal (12 AWG max) |
| DC Output Voltage | 24V (Passive) |
| Data In & Data/PoE Output Connector | RJ45 (Shielded) |
| Output Current (Max) | 0.8 A |
| Output Power (Max) | 19 W |
| Self Consumption Power | 1 W |
| Efficiency (Min) | 75% |
| Line Regulation | 1% |
| Load Regulation | 5% |
| Ripple | 1% |
| Noise | 1% |
| EMC Standards | FCC Class B EN 55022 Class B |
| Safety Standards | UL1950 CSA 22.2 TÜV EN 60950 |
| Operating Temperature | -30 to +60°C (-22 to +140°F) |
| Operating Humidity | 5% – 90% |
| Storage Temperature | -40 to +80°C (-40 to +176°F) |
| Dimensions (L × W × H) | 85 x 76 x 36 mm (3.4 x 3 x 1.4") |
| Weight | 134 g (4.7 oz) |
FAQs
Q1: What is the Tycon TP‑DCDC‑1224G and what is it used for?
A: The Tycon TP‑DCDC‑1224G is a DC‑to‑DC power converter that accepts a wide input range of 9–36 V DC and provides a regulated 24 V DC, 19 W output. It’s used to power 24 V‑powered network devices and PoE systems from varying DC sources.
Q2: What input voltage range does the TP‑DCDC‑1224G support?
A: This converter supports a wide DC input range from 9 V up to 36 V, making it flexible for use with vehicle power systems, solar power systems, battery banks, and other 24 V infrastructure.
Q3: What output does the TP‑DCDC‑1224G provide and what can it power?
A: The unit provides a regulated 24 V DC output at 19 W, suitable for powering 24 V powered devices such as small DC‑powered switches, surge protectors, PoE injectors, and auxiliary network equipment.
Q4: How is the Tycon TP‑DCDC‑1224G installed and integrated into power systems?
A: The converter is designed for easy integration with existing DC power systems. It connects to the DC supply via screw‑terminal or robust connector interfaces and can be mounted within equipment racks, junction enclosures, or control cabinets.
Q5: What features make the TP‑DCDC‑1224G suitable for industrial and mobile applications?
A: It features wide input compatibility, regulated 24 V output, and a compact, rugged design that is well suited for industrial panels, mobile applications, telecom environments, and network installations requiring dependable DC power conversion.
