The wAP LTE kit (2024) is a compact and weatherproof wireless access point designed for outdoor installation in challenging environments. With multiple power options including passive PoE-in, a standard DC jack, and an automotive plug, this affordable solution ensures a reliable wireless connection even on the tightest budget.

The latest revision features an upgraded LTE modem for improved connectivity, now including the popular B28 band, all at a significantly reduced price point.

The wAP LTE kit (2024) offers weatherproof construction and can be securely mounted to any external wall from inside the case for added security and discreet installation. Additionally, an anti-vandal screw secures the bottom part, ensuring only the owner can access it. With an opening in the back for Ethernet cable routing, the wAP LTE kit (2024) minimises visibility and seamlessly blends into any environment.

Any EU products are supplied with the appropriate UK power method at no extra cost.

Tech Specs

Click here for the MikroTik wAP LTE kit (2024) datasheet.

Device Specifications
Specifications
Product code	wAPR-2nD&EC200A-EU
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz
RouterOS license	4
Operating System	RouterOS v7
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 100'000 hours at 25°C
Tested ambient temperature	-40°C to 60°C
Suggested price	$99.00
Powering
Number of DC inputs	3 (Automotive, PoE-IN, DC jack)
DC jack input Voltage	9-30 V
Automotive input Voltage	9-30 V
Max power consumption	7 W
PoE in	Passive PoE
Cooling type	Passive
PoE in input Voltage	9-30 V
Mobile
2G Category	Class12
2G bands	8 (900MHz) / 3 (1800MHz)
3G Category	R7 (21Mbps Downlinks, 5.76Mbps Uplink)
3G bands	5 (850MHz) / 8 (900MHz) / 1 (2100MHz)
LTE Category	4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands	20 (800MHz) / 3 (1800MHz) / 1 (2100MHz) / 7 (2600MHz) / 8 (900 MHz) / 5 (850MHz) / 28 (700MHz)
LTE TDD bands	40 (2300MHz) / 38 (2600MHz) / 41n (2500MHz)
TAC	86314105
Wireless specifications
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	2
Wireless 2.4 GHz chip model	QCA9531
Wireless 2.4 GHz generation	Wi-Fi 4
Ethernet
10/100 Ethernet ports	1
Peripherals
Number of SIM slots	1 Modem (Mini SIM)
MiniPCI-e slots	1
Other
PCB temperature monitor	Yes
Voltage Monitor	Yes
Certification & Approvals
Certification	CE, E-MARK, EAC, ROHS
IP	54

FAQs

Q: What is the MikroTik wAP LTE kit (wAPR-2nD&EC200A-EU) used for?
A: This device is designed for outdoor or semi-outdoor installations where you need both wireless LAN and cellular 4G/LTE connectivity. It combines a Wi-Fi 2.4 GHz access point with a built-in LTE modem kit to provide versatile connectivity.

Q: What wireless and cellular standards does it support?
A: The unit supports Wi-Fi 802.11 b/g/n on the 2.4 GHz band with dual-chain operation and up to 300 Mbps data rate. On the cellular side it supports LTE Category 4 (typically up to 150 Mbps down / 50 Mbps up) along with 3G and 2G fallback.

Q: How is the wAP LTE kit powered and how many Ethernet ports does it have?
A: It has one 10/100Mbps Ethernet port and supports multiple power input options: passive PoE-in (9-30 V DC), a DC jack (9-30 V), and an automotive input (9-30 V). Maximum power consumption is approx 7W.

Q: What are the environmental and mounting features of the device?
A: It is rated to operate in ambient temperatures from –40 °C to +60 °C and has an IP54 outdoor-capable enclosure. It can be mounted on a wall or ceiling, and includes accessories for secure installation in exposed locations.

Q: Can the wAP LTE kit integrate with managed network systems and remote monitoring?
A: Yes, it runs RouterOS Licence Level 4, so it supports advanced configuration, monitoring and management. It’s suitable for remote deployments, M2M/IoT edge use, and outdoor guest-WiFi or backup-connectivity scenarios.

Resources

wAP LTE kit (2024) - User manuals - MikroTik Documentation

5G & LTE - Access Points

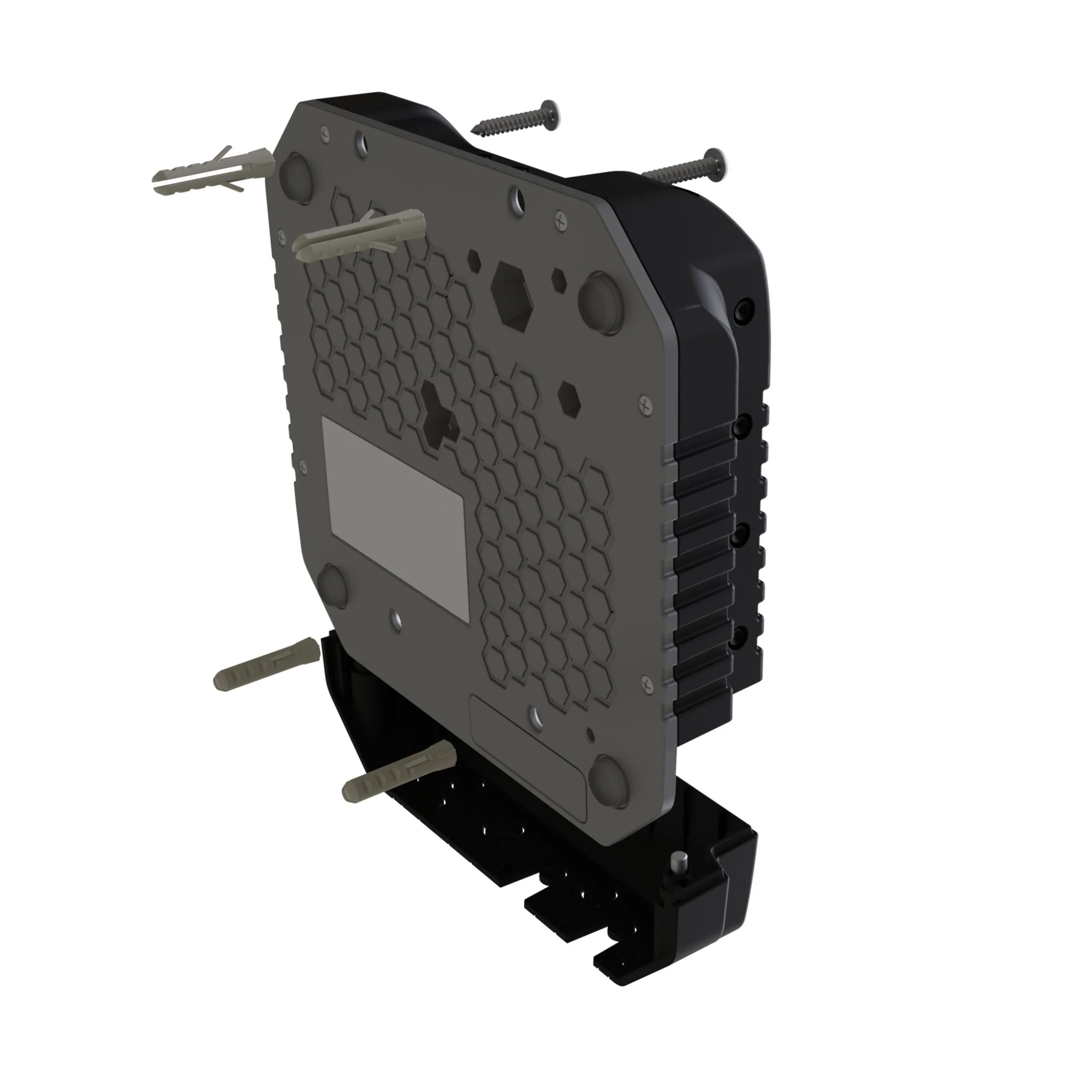

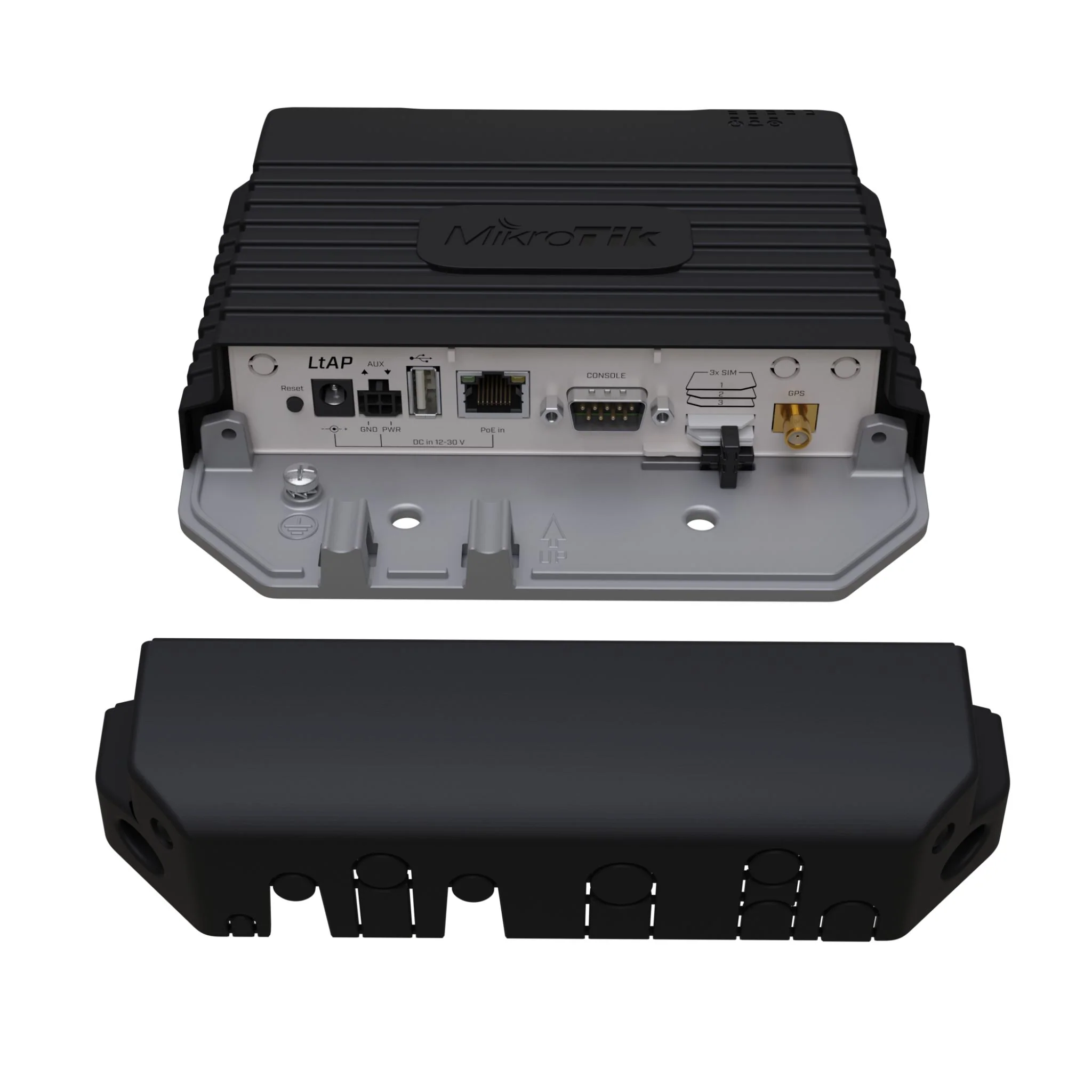

MikroTik LtAP LTE Cellular Access Point with LTE6

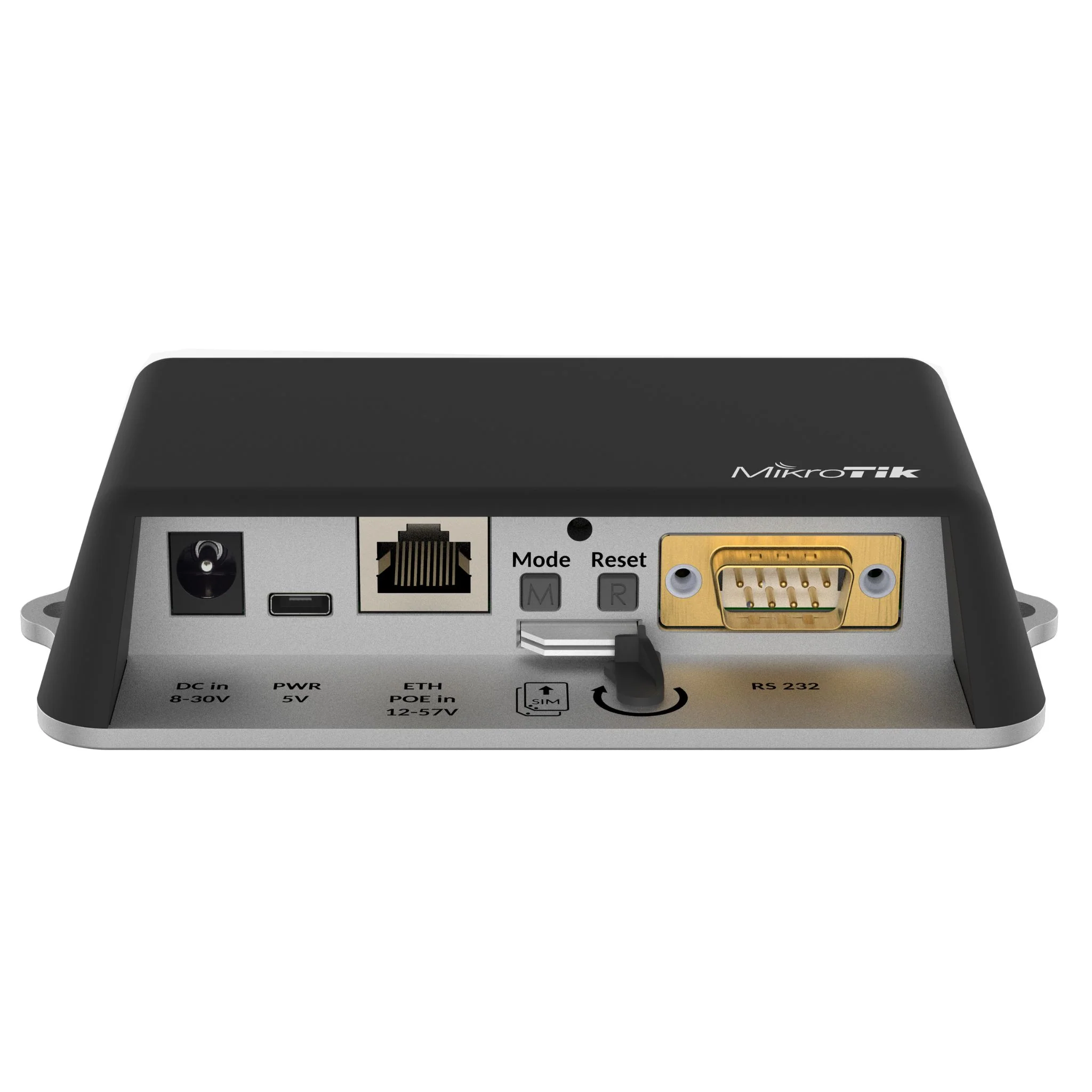

MikroTik LtAP Mini LTE Cellular Access Point
