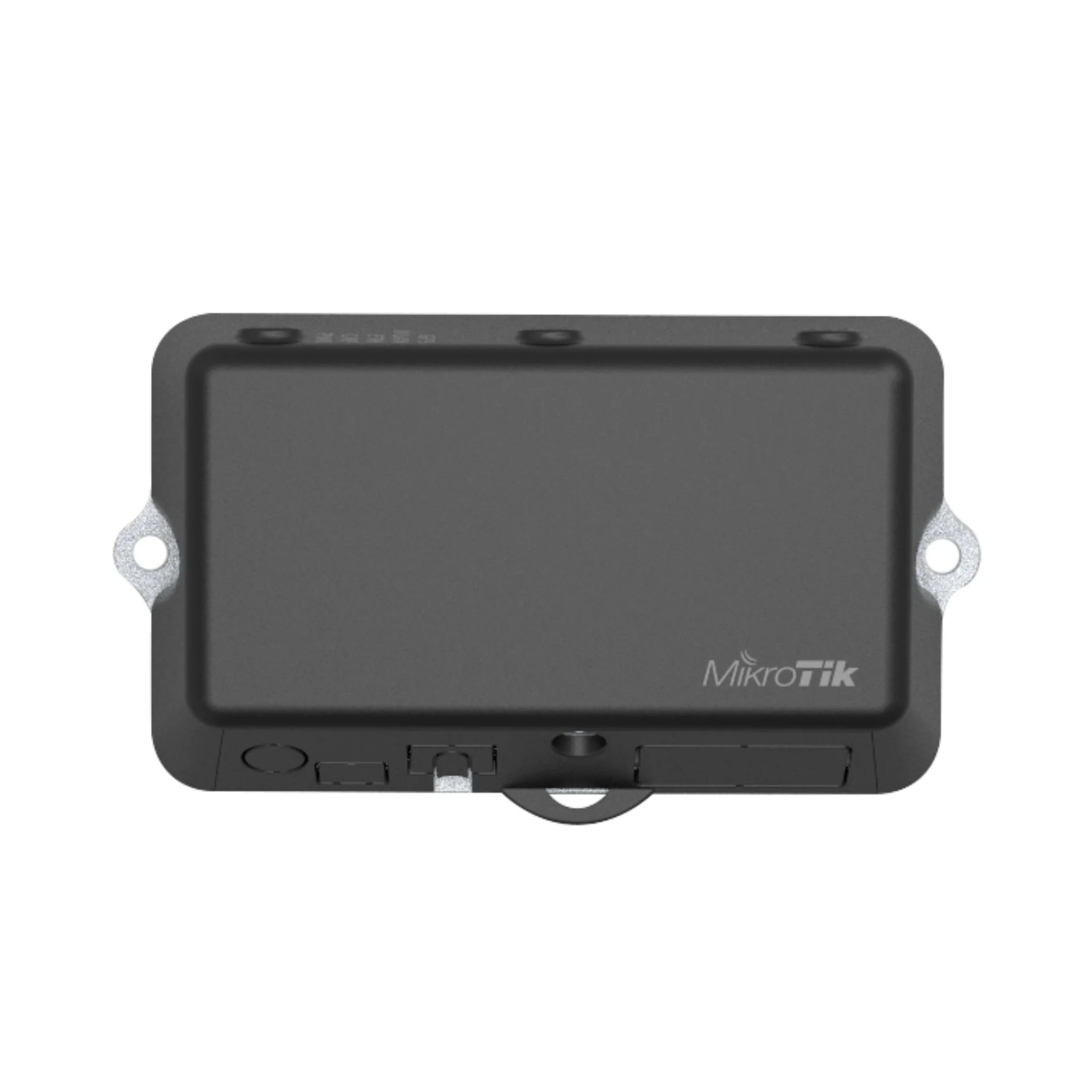

MikroTik LtAP Mini LTE Cellular Access Point
MikroTik's LtAP Mini is a waterproof wireless access point with LTE antennas, a slot for an LTE modem, and multiple powering options. It also has a wall mounting kit, two SIM slots, and GPS support for vehicle usage.
Tech Specs
Click here for the MikroTik LtAP Mini LTE datasheet.
| Device Specifications | |
|---|---|
| Product code | RB912R-2nD-LTm |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 139 x 77 x 28.5 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25°C |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $99.00 |
| Powering | |
| MicroUSB input Voltage | 5 V |
| Number of DC inputs | 3 (DC jack, PoE-IN, MicroUSB) |
| DC jack input Voltage | 8-30 V |
| Max power consumption | 9 W Without attachments: 4 W |
| PoE in | 802.3af/at Input Voltage: 12-57 V |
| Cooling type | Passive |
| Wireless Capabilities | |
| 2.4 GHz Max data rate | 300 Mbit/s |
| 2.4 GHz number of chains | 2 |
| 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi (2.4 GHz) | 1.5 |
| 2.4 GHz chip model | QCA9531 |
| 2.4 GHz generation | Wi-Fi 4 |
| Ethernet | |
| 10/100 Ethernet ports | 1 |
| Peripherals | |
| Number of SIM slots | 2 Modem (Mini SIM) |
| MiniPCI-e slots | 1 |
| Serial console port | RS232 |
| Other | |
| Mode button | Yes |
| GNSS standards | GPS |
| GPS RF connector type | uUFL |
| Certification & Approvals | |
| Certification | CE, FCC, IC, E-MARK, EAC, ROHS |
| IP | IP54 |
| Wireless Specifications – Detailed | |
| 2.4 GHz Transmit (dBm) / Receive Sensitivity | 1 MBit/s: 22 / -96 11 MBit/s: 22 / -89 6 MBit/s: 20 / -93 54 MBit/s: 18 / -74 MCS0: 20 / -93 MCS7: 16 / -71 |
FAQs
Q: What is the MikroTik RB912R‑2nD‑LTm used for?
A: The RB912R‑2nD‑LTm is an outdoor access point designed for long‑range 2.4 GHz wireless links (point‑to‑point or point‑to‑multipoint), with integrated antennas and weather‑rated housing.
Q: What wireless standards and speeds does the RB912R‑2nD‑LTm support?
A: It supports IEEE 802.11b/g/n on 2.4 GHz, dual‑chain MIMO, and offers throughput up to around 300 Mbps under ideal conditions.
Q: How is the RB912R‑2nD‑LTm powered and what are its hardware features?
A: It uses passive PoE input (10‑30 V) through an Ethernet cable and features a 32 MB flash, 64 MB RAM, and a 400 MHz CPU, making it suitable for outdoor infrastructure and long‑range deployments.
Q: What are the environmental and mounting features of the RB912R‑2nD‑LTm?
A: The device is built for outdoor use, with IP54‑rated enclosure, operating temperature range from –40 °C to +70 °C, and supports pole‑mount installation.
Q: Can the RB912R‑2nD‑LTm be used in managed networks?
A: Yes, it can be configured via MikroTik’s WebFig or WinBox interfaces, and supports integration into CAPsMAN for managed WiFi deployments and network automation.
