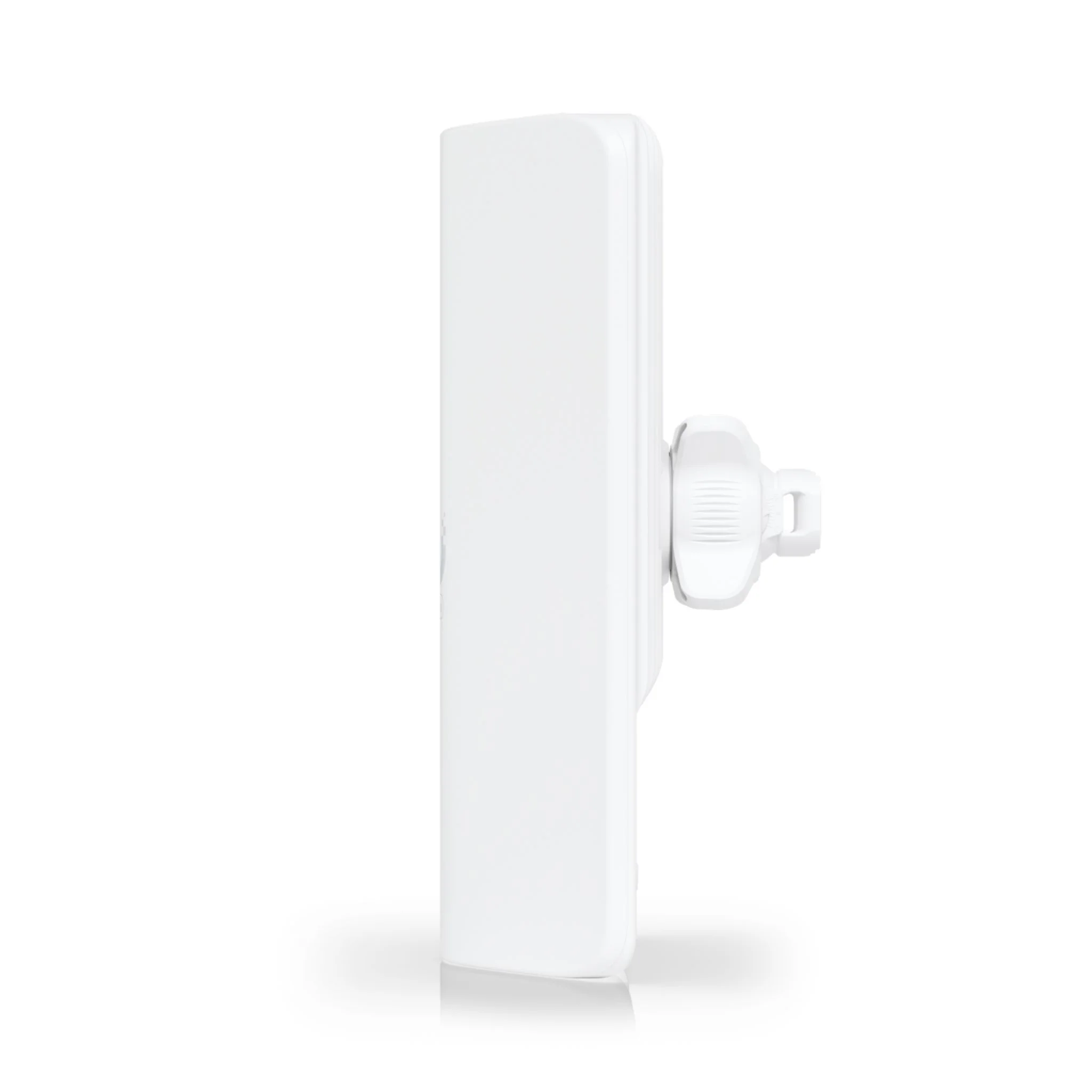

Ubiquiti Wave AP Micro

This 60 GHz PtMP access point is equipped with Wave Technology for wide coverage. It offers a maximum throughput of 5 Gbps (2.5 Gbps duplex) and a 90° sector coverage. The 5 GHz weatherproof backup radio provides a maximum throughput of 800 Mbps. This model includes a 2.5 GbE WAN port and can support up to 24 clients, including Wave Pro (6 km link range), Wave Long-Range (6 km link range), Wave Nano (4 km link range), and Wave Pico (0.9 km link range). It also features an integrated GPS and Bluetooth. *FW version 3.3.0 and later.

Any EU products are supplied with the appropriate UK power method at no extra cost.

Tech Specs

Click here for the Ubiquiti Wave AP Micro datasheet.

Device Specifications
Mechanical
Dimensions	284 x 156 x 76 mm (11.2 x 6.1 x 3")
Weight	1.3 kg (2.9 lb)
Enclosure material	Aluminum alloy, UV stabilized polycarbonate
Mount material	Stainless steel, UV stabilized polycarbonate
Pole mount diameter	35 to 60 mm (1.4 to 2.4") on pipe outer diameter
Wind loading	87 N at 200 km/h (20 lbf at 125 mph)
Weatherproofing	IPX6
Hardware
Processor	Quad-core ARM® Cortex®-A53 at 1.4 GHz
Memory	DDR3L 512 MB

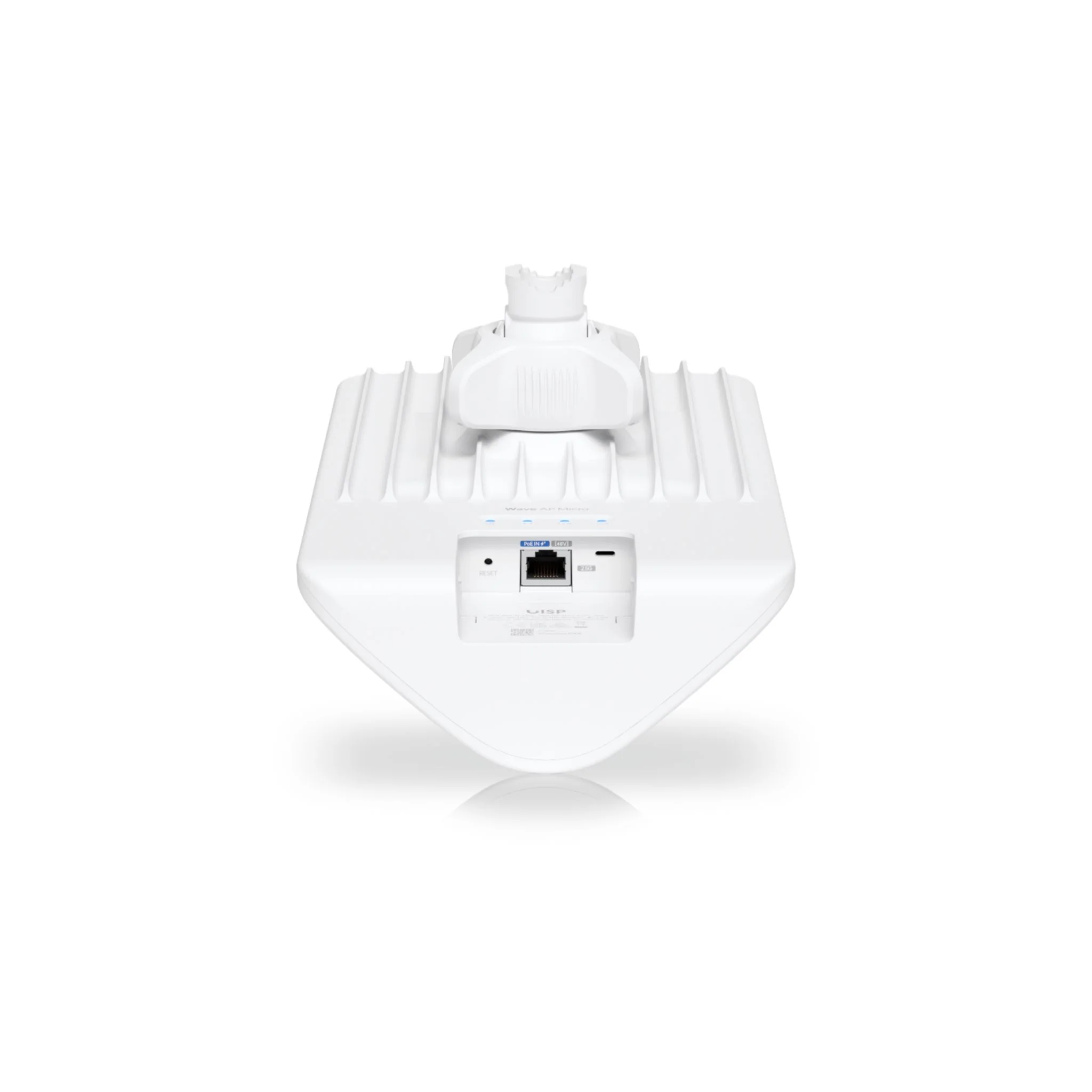

Networking interface	(1) 1/2.5 GbE RJ45 port
Max. power consumption	24W
Power method	Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Power supply	48V DC, 0.65A, 2.5 GbE PoE adapter (Included)
Supported voltage range	44–54V DC 22–27V DC
GPS	Yes
Button	Factory reset
LEDs	Power, Ethernet, GPS, Link
Ambient operating temperature	-40 to 60° C (-40 to 140° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	FCC, IC, CE
NDAA Compliant	Yes
Software
Operating mode	PtMP access point
Ubiquiti specific features	Wave AI, discovery protocol
Services	UISP, ping watchdog, NTP client, SNMP
Tools	Antenna alignment, discovery utility, ping, trace route, speed test, cable test*, site survey* *FW version 3.3.0 and later.
Network	Bridge mode
Application requirements	UISP web: Version 2.2.11 and later UISP mobile iOS™: Version 2.25.1 and later UISP mobile Android™: Version 2.27.5 and later
System
Total throughput	5 Gbps
Supported clients count	31* *FW version 3.4.0 and later.
Max. range	Connecting to a Wave Pro: up to 6 km Connecting to a Wave Long-Range: up to 6 km Connecting to a Wave Nano: up to 4 km Connecting to a Wave Pico: up to 0.9 km
Encryption	WPA2-PSK (AES)
RF
Operating frequency*	57–71 GHz *Depends on regulatory region.
Channel bandwidth	2160, 1080, 540* MHz *FW version 3.3.0 and later.
Operating channels*	58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends on regulatory region.
Modulation	16QAM, QPSK
Antenna gain	20 dBi
Polarization	Vertically linear
Beamwidth	Azimuth: 3 dB 90° Elevation: 3 dB 7°
Electrical downtilt	0°
Back-Up RF
WiFi standard	802.11ax (WiFi 6)
Operating frequency*	US/CA: U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz Worldwide: 5150 - 5875 MHz *Depends on regulatory region.
Channel bandwidth	20, 40, 80 MHz
Modulation	BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)
Antenna gain	13.5 dBi
Polarization	Dual-linear
Beamwidth	Azimuth: 6 dB 90° Elevation: 6 dB 25°
Cross-pol isolation	10 dB
Electric downtilt	0°
LEDs
Power	Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress
Ethernet	Flashing blue: Ethernet traffic detected
GPS	Blue: receiving at least(4) GPS satellite signal
Link	Blue: 60 GHz link White: 5 GHz link



FAQs

Q1: What is the Ubiquiti Wave-AP-Micro?
A1: The Ubiquiti Wave-AP-Micro is a compact 60 GHz point-to-multipoint (PtMP) access point designed for high-speed wireless connectivity. It supports up to 15 clients and is ideal for extending network coverage in dense urban environments.

Q2: What are the key specifications of the Wave-AP-Micro?
A2: Key specifications include:

• Dimensions: 284 x 156 x 76 mm (11.2 x 6.1 x 3")

• Weight: 1.3 kg (2.9 lb)

• Processor: Quad-core ARM Cortex-A53 at 1.4 GHz

• Memory: 512 MB DDR3L

• Networking Interface: 1/2.5 GbE RJ45 port

• Power Consumption: Max 24W

• Power Method: Passive PoE (44–54V DC)

• Weatherproofing: IPX6

• Operating Temperature: -40 to 60°C (-40 to 140°F)

• Mounting: Pole mount compatible with 35–60 mm (1.4–2.4") pipe diameter

Q3: What is the maximum range and throughput of the Wave-AP-Micro?
A3: The Wave-AP-Micro supports a maximum link range of up to 6 km when connecting to Wave Long-Range devices. It offers a total throughput of up to 5 Gbps (2.5 Gbps duplex).

Q4: Does the Wave-AP-Micro have a backup radio?
A4: Yes, the Wave-AP-Micro includes a 5 GHz backup radio with a maximum throughput of 800 Mbps to maintain connectivity in case of 60 GHz link failure.

Q5: What software features does the Wave-AP-Micro support?
A5: The Wave-AP-Micro supports features such as Wave AI, discovery protocol, UISP management, ping watchdog, NTP client, SNMP, and tools like antenna alignment, discovery utility, ping, trace route, and speed test.
