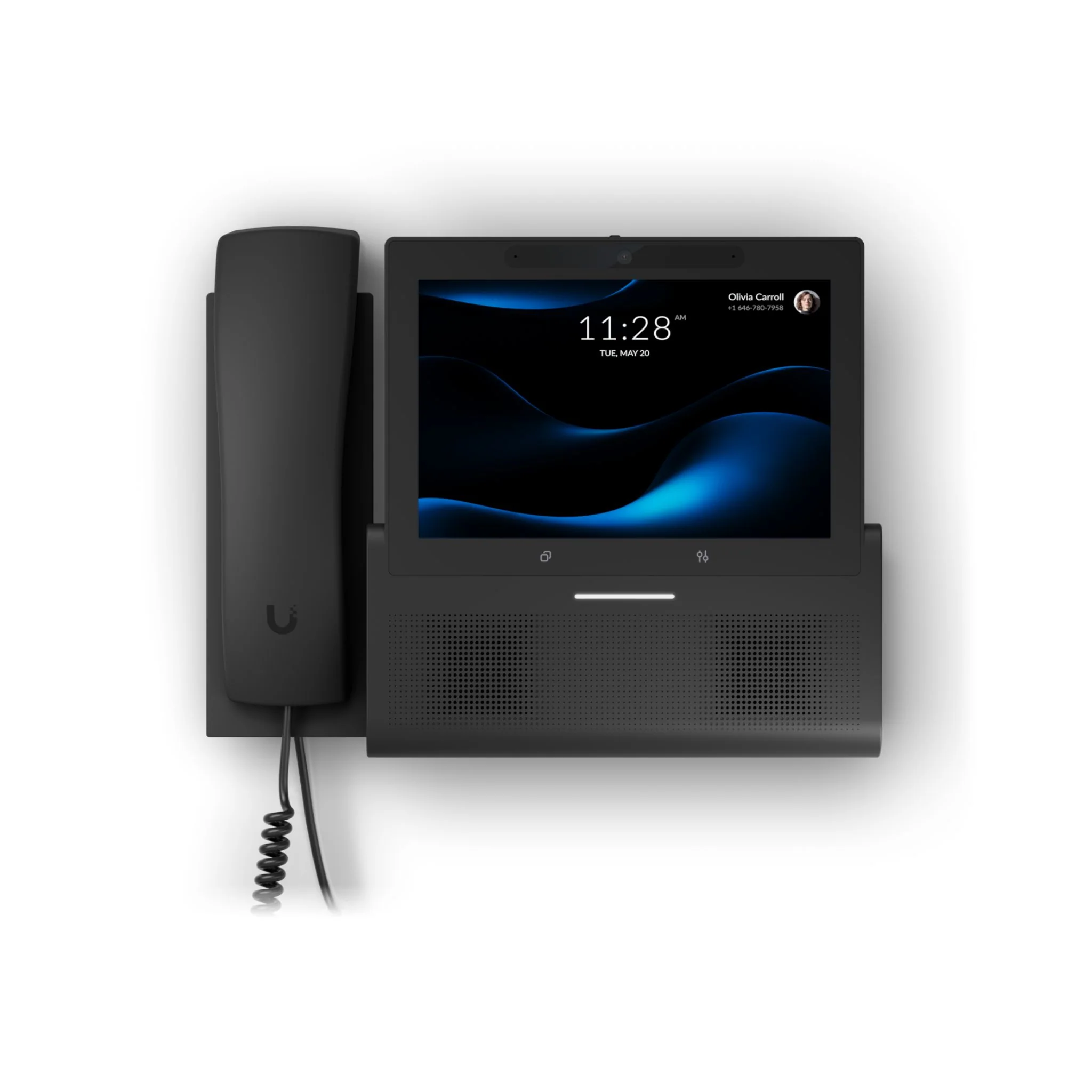

Ubiquiti UniFi G3 Touch Wall
UniFi G3 Touch Wall – Wall-Mountable Smart Phone for UniFi Talk
The UniFi G3 Touch Wall is a next-generation, wall-mountable smartphone designed for seamless use with UniFi Talk and full integration across UniFi applications. Featuring a 7-inch touch display, it delivers a modern, intuitive communication experience for enterprise and commercial environments.
Easily integrated with third-party PBX platforms via Talk Relay, the G3 Touch Wall provides flexibility for existing telephony systems. It includes a high-performance speakerphone, ergonomic handset with mute button, and Bluetooth connectivity for added versatility.
Powered by PoE+ or USB-C (5V DC, 3A), the G3 Touch Wall ensures simple installation and a clean, cable-free setup. Ideal for offices, reception areas, and hospitality environments, it combines elegant design with reliable, high-quality performance.
Tech Specs
Click here to view the Ubiquiti UniFi G3 Touch Wall datasheet.
| Device Specifications | |
|---|---|
| Overview | |
| Dimensions | 254.4 x 202.5 x 70.1 mm (10 x 8 x 2.8”) |
| UniFi Application Suite | Talk ✓ Talk Relay ✓ |
| Mounting | Wall |
| Integrated Camera | ✓ |
| Touch Screen Technology | Multi-Touch |
| Bluetooth | ✓ |
| Available Colors | Black |
| Mechanical | |
| Weight | 1.1 kg (2.5 lb) |
| Enclosure Material | Polycarbonate, aluminum alloy (base) |
| Hardware | |

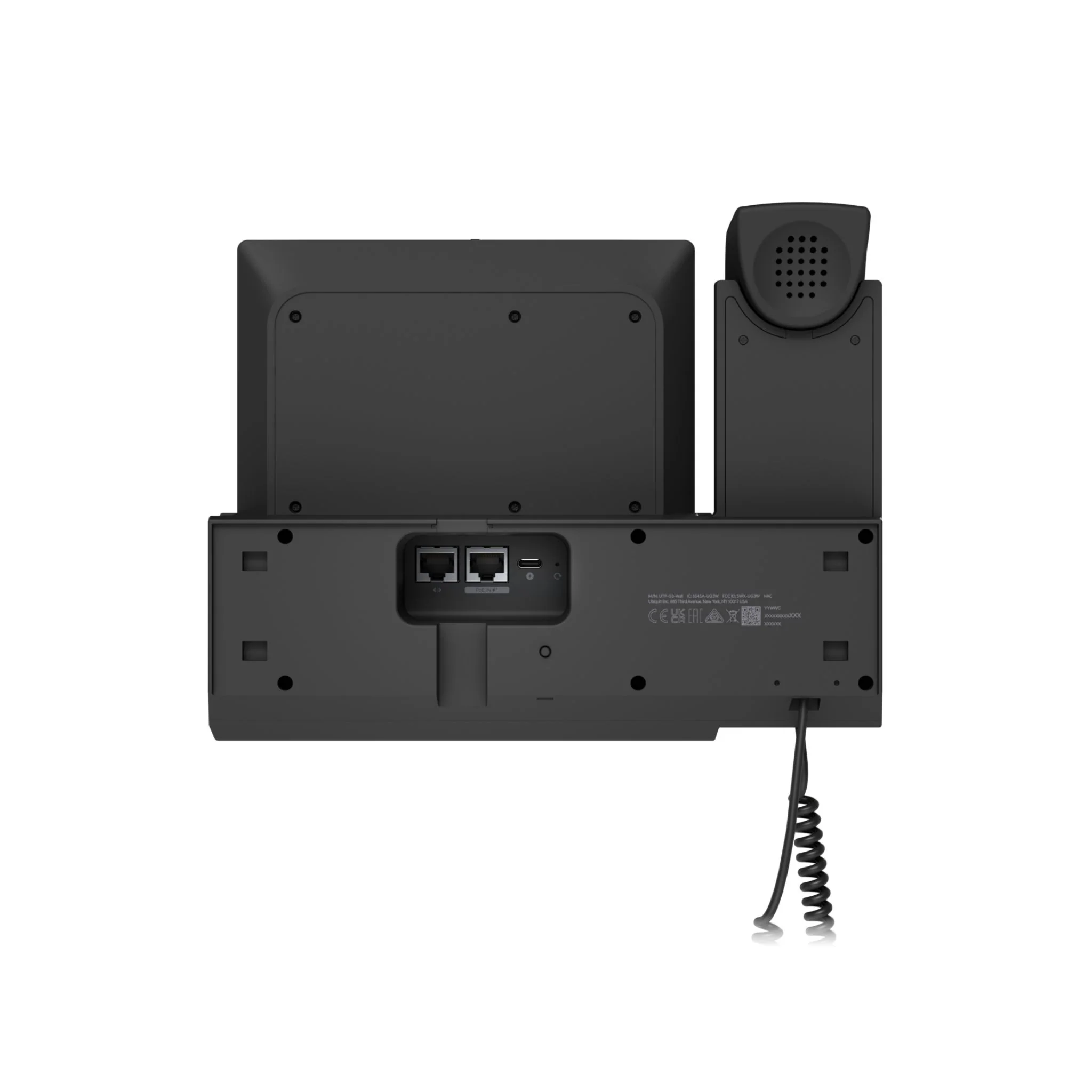

| Connectivity | (2) GbE RJ45 ports 802.11 a/b/g/n/ac WiFi Bluetooth® 4.2 (General use) Bluetooth® 5.2 (Ubiquiti G3 Wireless Handset only) NFC support |
| Power Method | USB type-C 5V DC, 3A PoE 44—57V DC, 15.4W |
| Max. Power Consumption | 11W |
| Processor | Octa-core ARM® Cortex®-A53 |
| Memory | Storage: 32 GB RAM: 2 GB |
| Camera | 2592 x 1944, 5MP (Embedded Privacy shutter) |
| Display |
Screen Surface Treatments: Anti-Glare Coating Size: 178 mm (7") diagonal Resolution: 1280 x 800 HD |
| Audio |
Hands-Free Microphone: Dual omnidirectional MEMS microphone Hands-Free Speaker: Dual 3W speaker Handset Microphone: Omnidirectional electret condenser microphone Handset Dynamic Receiver: Standard wideband-capable audio |
| Buttons | (1) Mute Button |
| LED | R/G/B/W |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 10 mm |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | FCC, IC, CE |
FAQs
Q: What is the Ubiquiti UTP-G3-Touch-Wall used for?
A: The UTP-G3-Touch-Wall is a wall-mounted touchscreen controller for UniFi Protect cameras, allowing real-time monitoring and easy management of security systems.
Q: Can the UTP-G3-Touch-Wall display multiple camera feeds?
A: Yes, it supports live streaming from multiple UniFi Protect cameras, providing a centralised interface for monitoring and security management.
Q: Is the UTP-G3-Touch-Wall suitable for indoor installations?
A: Yes, it is designed for indoor wall mounting, such as offices, residential buildings, or commercial spaces.
Q: Does the UTP-G3-Touch-Wall support touch controls?
A: Yes, it provides an intuitive touchscreen interface for viewing, controlling, and managing connected UniFi Protect devices.
Q: How does the UTP-G3-Touch-Wall improve security management?
A: By centralising live monitoring and camera control in one wall-mounted interface, it enhances situational awareness and simplifies security system operation.
