Ubiquiti UniFi G3 Gate Starter Kit
Ubiquiti UniFi G3 Gate Starter Kit – Complete Gate Access Control Kit with Touch Pass Support
The Ubiquiti UniFi G3 Gate Starter Kit provides a complete, ready-to-deploy solution for managing access at a single gate. It includes a Gate Hub, G3 Intercom, PoE++ adapter, and a PoE++ over twisted pair extender, delivering everything required for a streamlined installation.
Designed for residential and commercial gate access, the kit enables secure entry control with Touch Pass support for convenient mobile-based access. Power and connectivity are simplified through PoE++, reducing cabling complexity while ensuring reliable performance.
Fully integrated with UniFi Access, the G3 Gate Starter Kit offers centralised management, monitoring, and configuration through the UniFi platform, making it a practical all-in-one solution for modern gate entry control.
Note: Includes 10 free 1-year Touch Passes.
Any EU products are supplied with the appropriate UK power method at no extra cost.
Tech Specs
View the Ubiquiti UniFi G3 Gate Starter Kit here.
| Device Specifications | |
|---|---|
| Overview | |
| In the Box | (1) Gate Hub (1) G3 Intercom (1) PoE++ adapter (2) 2-wire Retrofit Extenders |
| Touch Pass | 10 free 1-year Touch Passes included |
| Gate Hub | |
| Dimensions | 175 x 126 x 26 mm (6.9 x 5 x 1") |
| Supported Doors | 1 gate, 1 side door |
| Maximum User Count | 6,000 |
| Input Terminals | Gate exit request Gate position Side door exit Side door position Emergency |
| Power Method | PoE++ |
| PoE Interface | (1) PoE++ input, 50V DC, 1A (4) PoE outputs, 50V DC, 30W per port (Max 55W aggregated) |
| Networking Interface | (5) 10/100/1000 Base-T |
| Max Power Consumption | 22W (without PoE output) 60W (with PoE output) |
| Relays | (2) Operator relay, 30V DC up to 1A (1) Aux relay, 30V DC up to 1A Side door lock output: 12V DC up to 1A |
| Mounting | DIN rail (included) |
| Enclosure | Polycarbonate |
| Operating Temperature | -30 to 60°C |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |

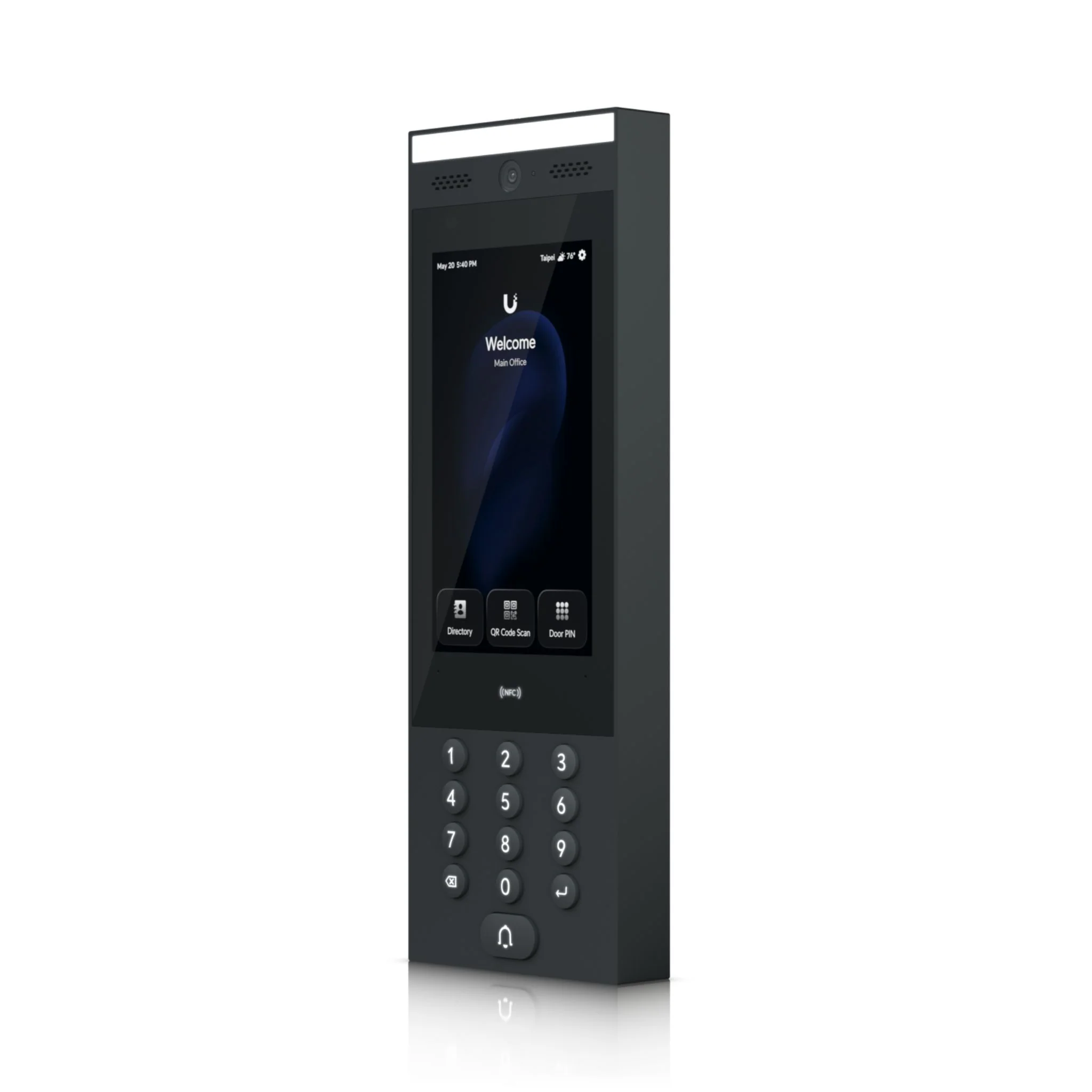

| G3 Intercom | |
| Dimensions | 324.8 x 113.7 x 28.3 mm |
| Camera & Access | Integrated camera NFC card & keyfob PIN access Mobile unlock Face unlock |
| Weatherproof Rating | IP65 |
| Connectivity | BLE 4.2 NFC GbE RJ45 |
| Power Method | PoE |
| Max Power Consumption | 13W |
| Display | 7" capacitive touchscreen 1024 x 600 resolution Up to 1000 nits |
| Video | 2MP 1200×1600 @ 30 FPS FOV: H 79.4°, V 97.5°, D 118.2° |

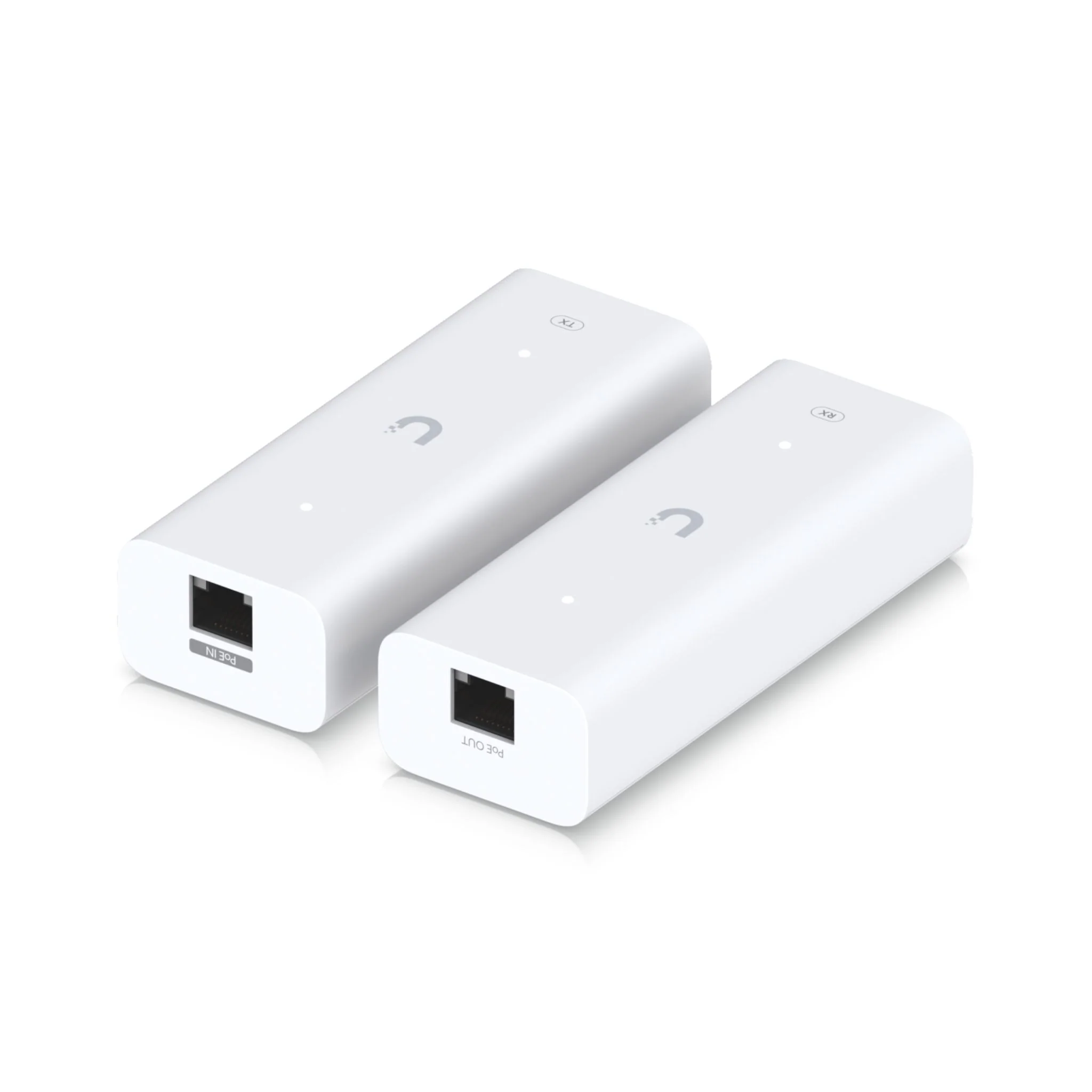

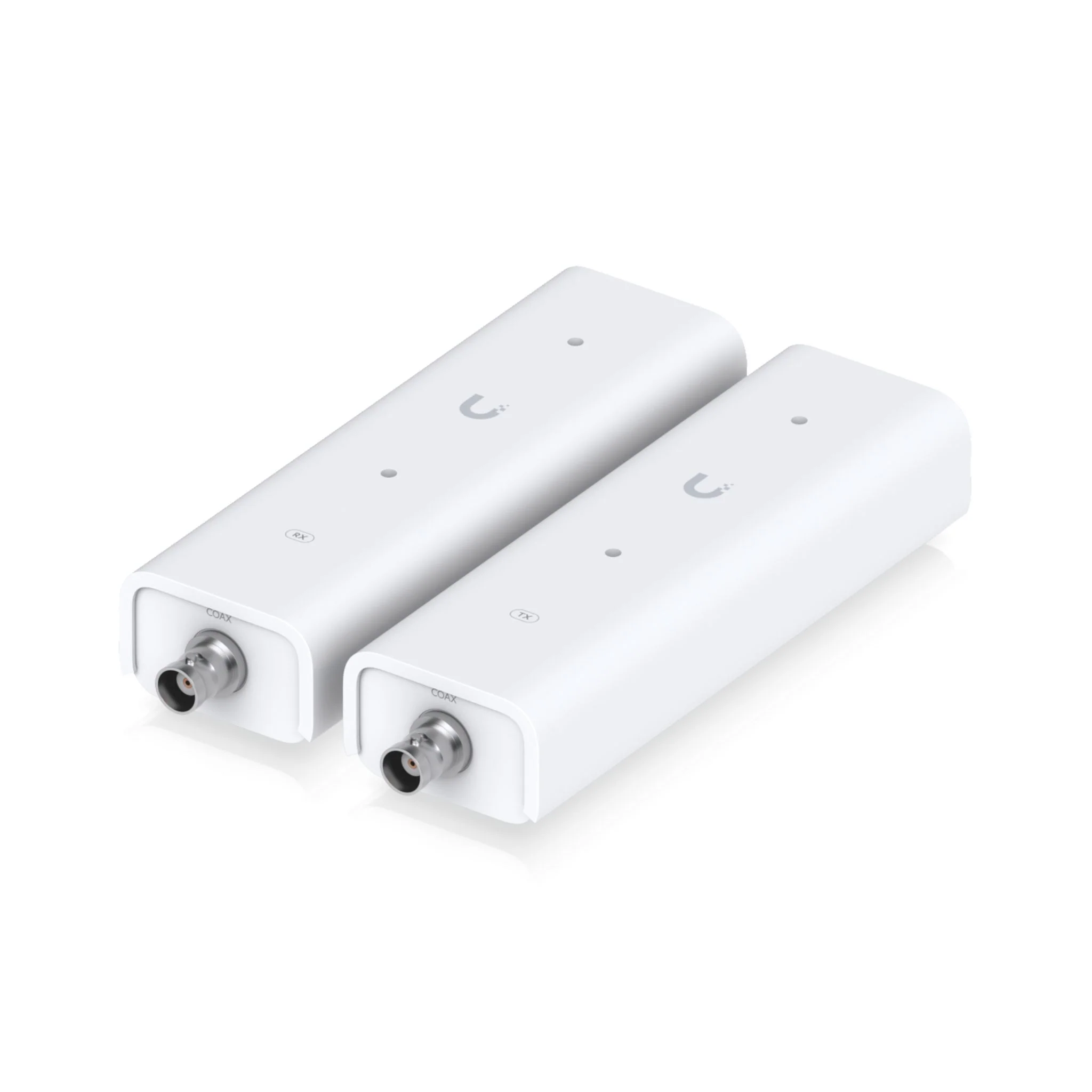

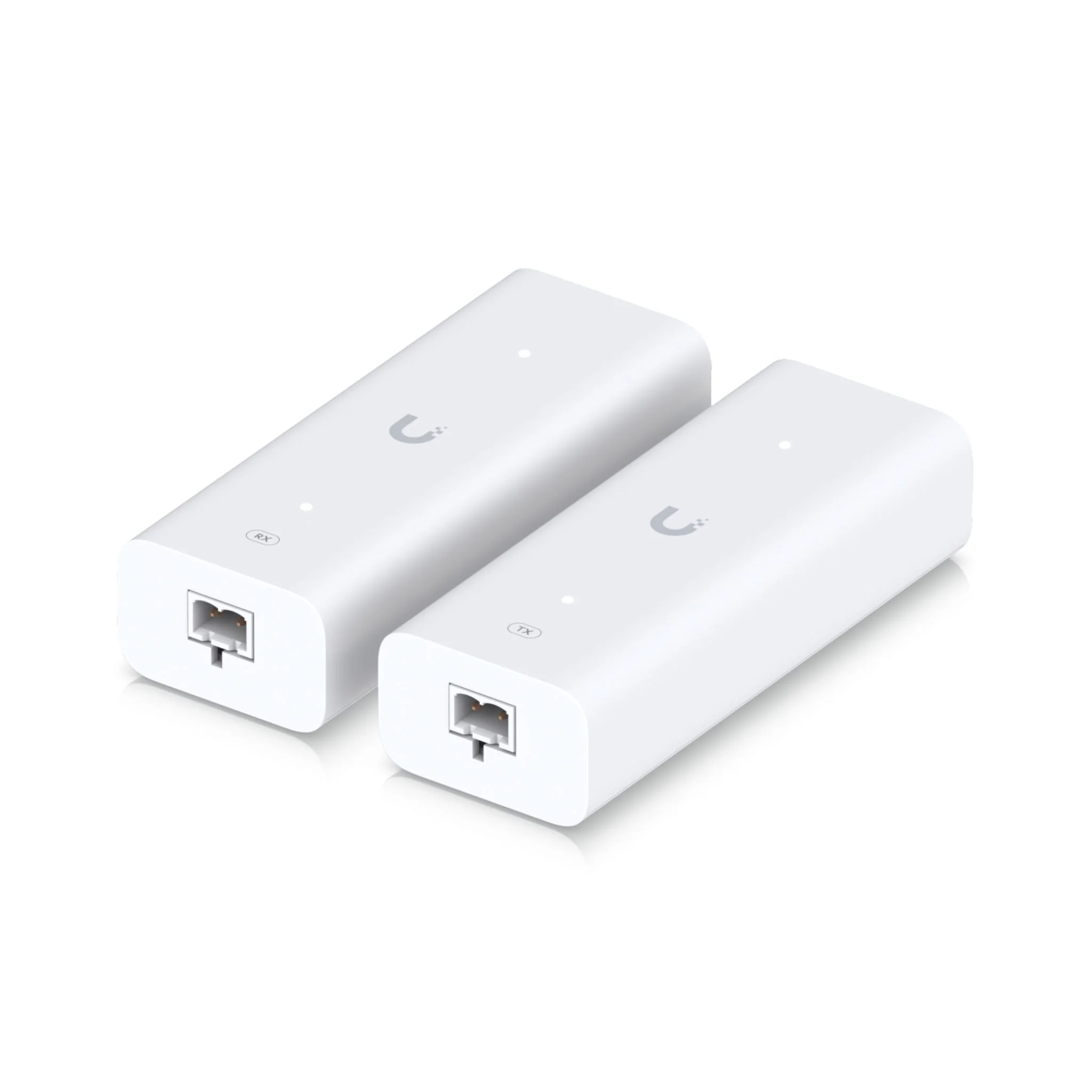

| Retrofit Extender | |
| Dimensions | PoE in/out: 40 x 105 x 25 mm Adapter: 43.5 x 138 x 30 mm |
| Interfaces | (1) 10/100 MbE (1) HomePlug AV BNC female coaxial |
| Power | PoE++ input PoE+ output |
| Protection | ESD/EMP protection Air ±8kV, contact ±4kV |

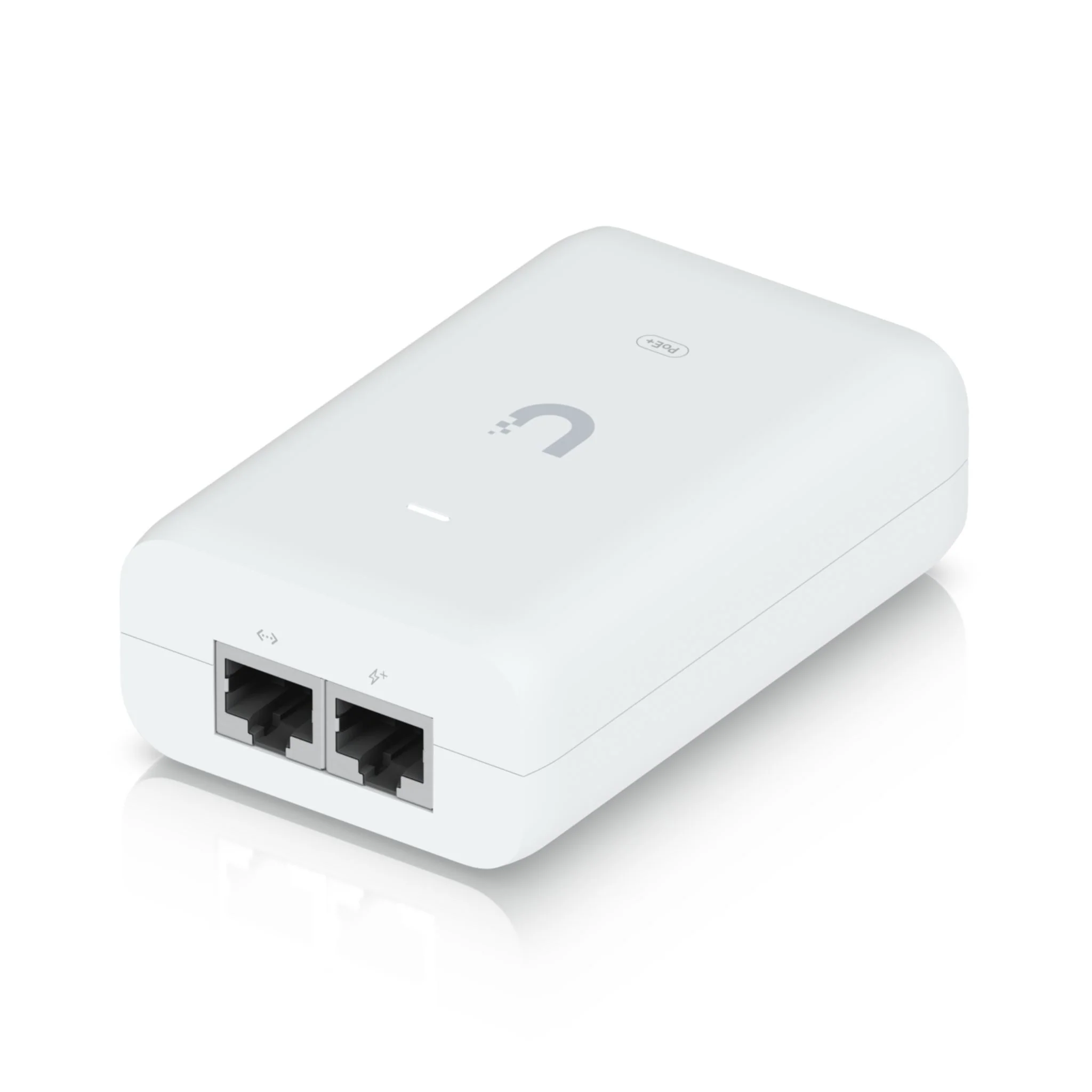

| PoE++ Adapter (U-PoE++) | |
| Output | 48V DC @ 1.25A |
| Input Voltage | 100–240V AC, 50/60Hz |
| PoE Power | Up to 60W |
| Protection | Surge & clamping protection 1500A surge discharge |
| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
FAQs
Q1: What is the G3 Gate Starter Kit and what does it control?
A: The G3 Gate Starter Kit is a complete smart access control solution designed to manage vehicle gates and a secondary door. It provides secure entry control, visitor communication, and remote management through the UniFi Access platform.
Q2: What components are included in the starter kit?
A: The kit includes a Gate Hub, G3 Intercom, PoE++ adapter, two 2-wire retrofit extenders, and 10 one-year Touch Pass licences, providing everything needed for a full gate access deployment.
Q3: How do users gain access through the system?
A: Users can enter using multiple credential methods including PIN codes, NFC cards, mobile access, and Touch Pass credentials. Administrators can manage permissions and access schedules remotely.
Q4: Can visitors communicate with occupants before access is granted?
A: Yes. The G3 Intercom enables two-way audio and video communication, allowing occupants to verify visitors and remotely unlock the gate or door using the UniFi Access interface.
Q5: Is the system suitable for outdoor and commercial environments?
A: The kit is designed for outdoor gate installations and is suitable for residential complexes, commercial sites, business parks, and gated facilities requiring secure and reliable access control.
Resources
