Ubiquiti UniFi U7 Pro XG

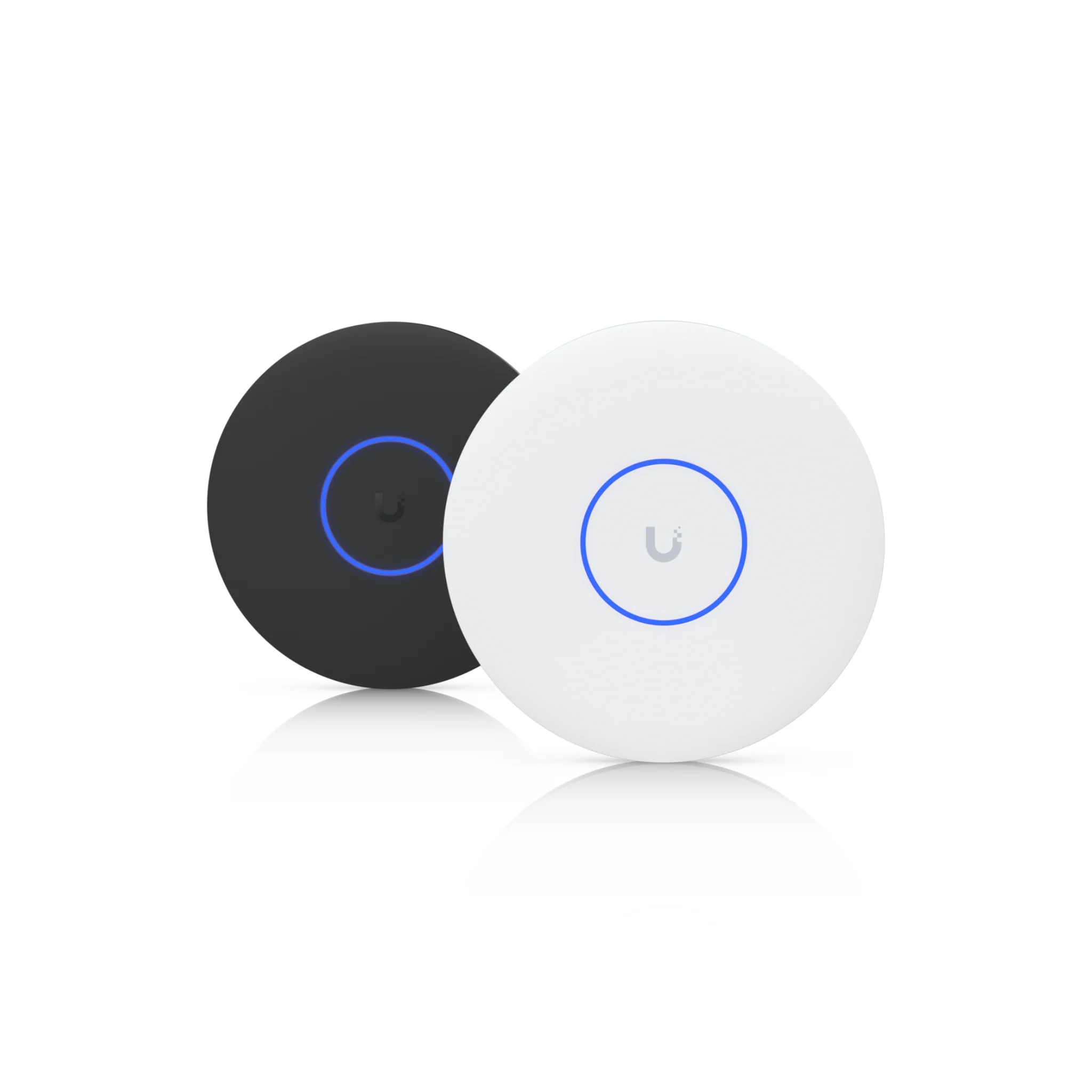

Ubiquiti UniFi U7 Pro XG – Ceiling-Mounted WiFi 7 Access Point
The Ubiquiti UniFi U7 Pro XG is a ceiling-mounted WiFi 7 access point built for fast, low-latency wireless connectivity in high-demand environments. With 6 spatial streams and 6 GHz support, it delivers reliable performance across up to 140 m² (1,500 ft²) and supports more than 300 connected devices, making it well suited to busy offices, shared workspaces, and high-density deployments.
A 10 GbE uplink with support for 10, 5, 2.5, and 1 GbE speeds provides the bandwidth needed for next-generation wireless traffic, ensuring smooth performance as network demands grow. Powered using PoE+, the U7 Pro XG combines high-speed capability with a compact, discreet form factor that integrates easily into modern UniFi networks.
Tech Specs
View the Ubiquiti U7 Pro XG datasheet here.
| Device Specifications | |
|---|---|
| Overview | |
| Dimensions | Ø206 x 32.5 mm (Ø8.1 x 1.3") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 6 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 300+ |
| Uplink | 10 GbE |
| Mounting | Ceiling, Wall (Lite Mount Included) |
| Power Method | PoE+ |
| Performance | |
| MIMO | 6 GHz: 2 x 2 (DL/UL MU-MIMO) 5 GHz: 2 x 2 (DL/UL MU-MIMO) 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate | 6 GHz: 5.8 Gbps (BW320) 5 GHz: 4.3 Gbps (BW240) 2.4 GHz: 688 Mbps (BW40) |
| Antenna Gain | 6 GHz: 6 dBi 5 GHz: 5 dBi 2.4 GHz: 4 dBi |
| Max. TX Power | 6 GHz: 24 dBm 5 GHz: 26 dBm 2.4 GHz: 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | 802.11be (WiFi 7) 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Features | |
| Features List | Wireless Meshing ✓ Band Steering ✓ 802.11v BSS Transition Management ✓ 802.11r Fast Roaming ✓ 802.11k Radio Resource Management (RRM) ✓ Advanced Radio Management ✓ Passpoint (Hotspot 2.0) ✓ Captive Hotspot Portal Custom Branding Landing Page ✓ Voucher Authentication ✓ Payment-Based Authentication ✓ External Portal Server Support ✓ Password Authentication ✓ Guest Network Isolation ✓ Private Pre-Shared Key (PPSK) ✓ WiFi Speed Limiting ✓ Client Device Isolation ✓ WiFi Schedules ✓ RADIUS over TLS (RadSec) ✓ Dynamic RADIUS-assigned VLAN ✓ |
| Hardware | |
| Max. Power Consumption | 22W |
| Supported Voltage Range | 42.5—57V DC |

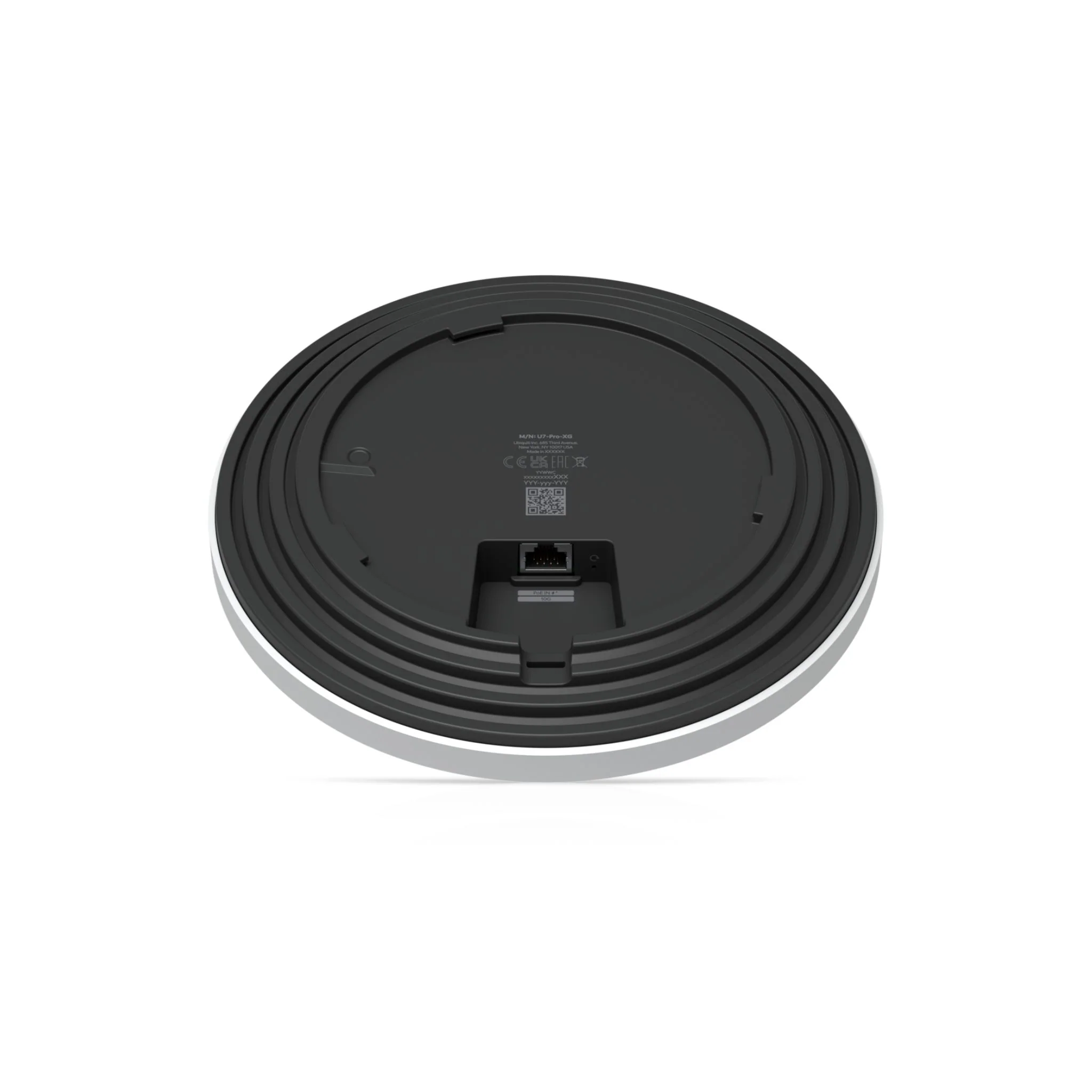

| Networking Interface | (1) 10 GbE RJ45 port |
| Weight | 750 g (1.7 lb) |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |
| LEDs | System White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
| Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Software | |
| Application Requirements | UniFi Network Version 9.0.114 and later (U7 Pro XG - White) Version 9.1.120 and later (U7 Pro XG - Black) |
FAQs
Q: What is the Ubiquiti U7-Pro-XG and what is it used for?
A: The U7-Pro-XG is a flagship WiFi 7 access point with quad-band design, engineered for extremely high-density deployments requiring multi-gigabit wireless performance.
Q: What frequency bands and wireless standards does the U7-Pro-XG support?
A: It supports quad-band WiFi 7 (2.4 GHz, dual 5 GHz, and 6 GHz) with advanced 4×4 and 8×8 MU-MIMO, delivering exceptional speed, capacity, and low latency.
Q: How is the U7-Pro-XG powered and connected?
A: It features a 10 GbE RJ45 and SFP+ port, powered via PoE++ (802.3bt) to deliver both high-bandwidth data and power through a single cable.
Q: What makes the U7-Pro-XG suitable for ultra-high-density environments?
A: Its quad-band WiFi 7 architecture, wide 320 MHz channels, and advanced MU-MIMO capabilities ensure consistent performance for hundreds of concurrent users.
Q: How is the U7-Pro-XG managed?
A: It integrates seamlessly with the UniFi Network Application, providing centralised configuration, real-time monitoring, performance analytics, and updates.
