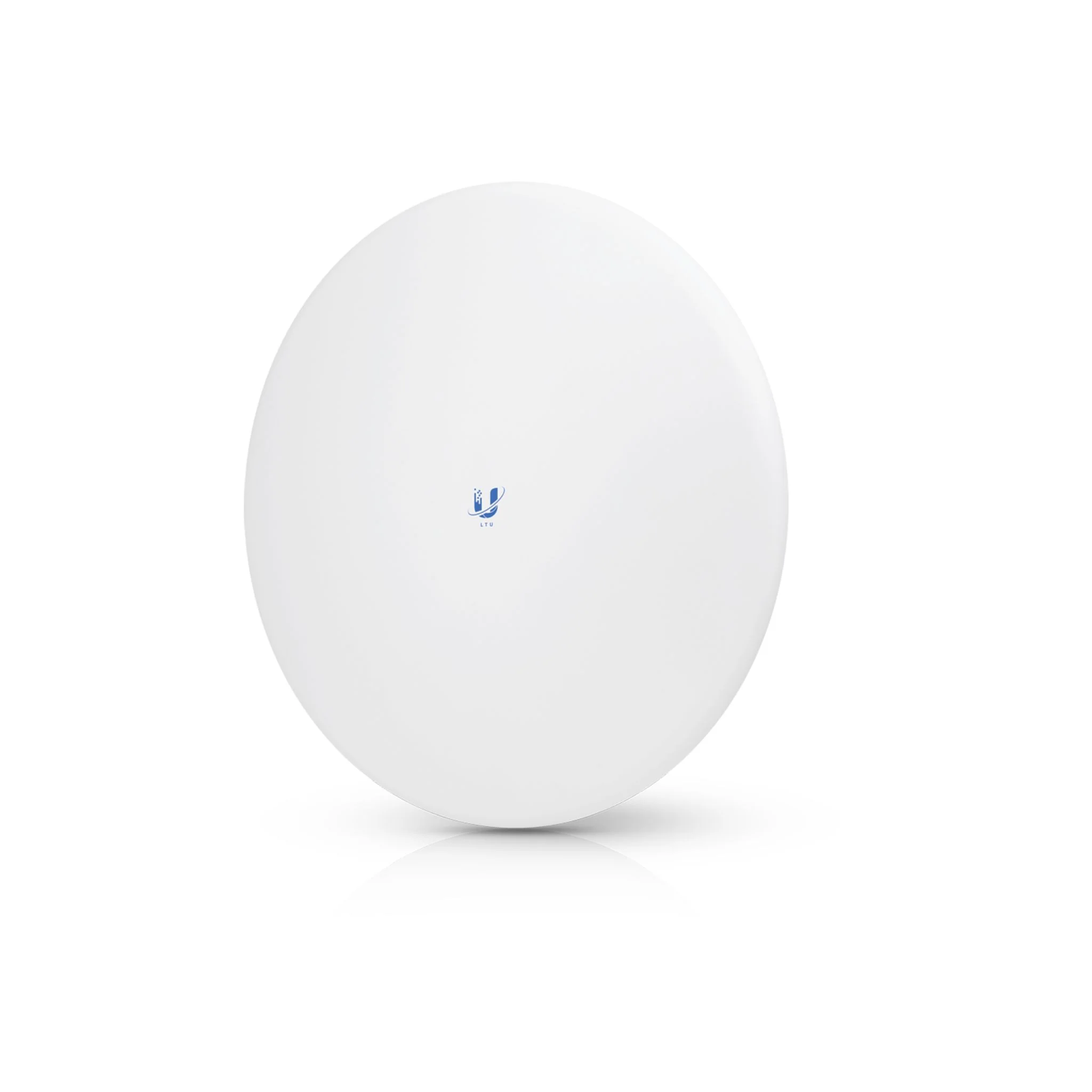

Ubiquiti LTU Pro

The LTU Pro is a high-performance PtMP subscriber station with advanced industrial design and technology. Utilising Ubiquiti's LTU technology and a high-gain dish, it offers flexibility in channel width and can avoid interference in a PtMP environment with the LTU-Pro and LTU-Lite.

Any EU products are supplied with the appropriate UK power method at no extra cost.

Tech Specs

Click here for the Ubiquiti LTU Pro datasheet.

Device Specifications
Mechanical
Dimensions	316.5 x 316.5 x 174.3 mm (12.5 x 12.5 x 6.9")
Weight	1.3 kg (2.9 lb)
Enclosure Material	UV-stabilized polycarbonate

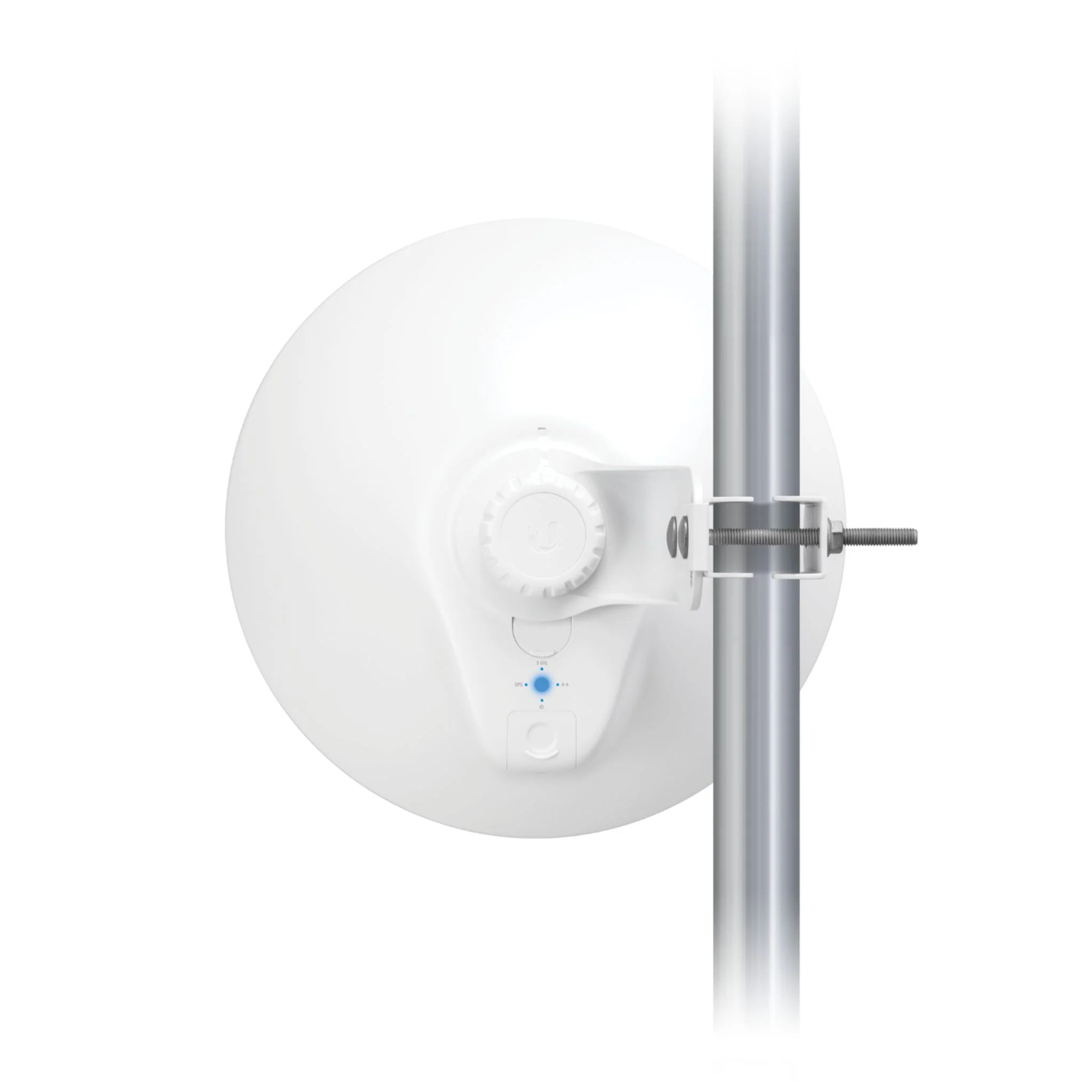

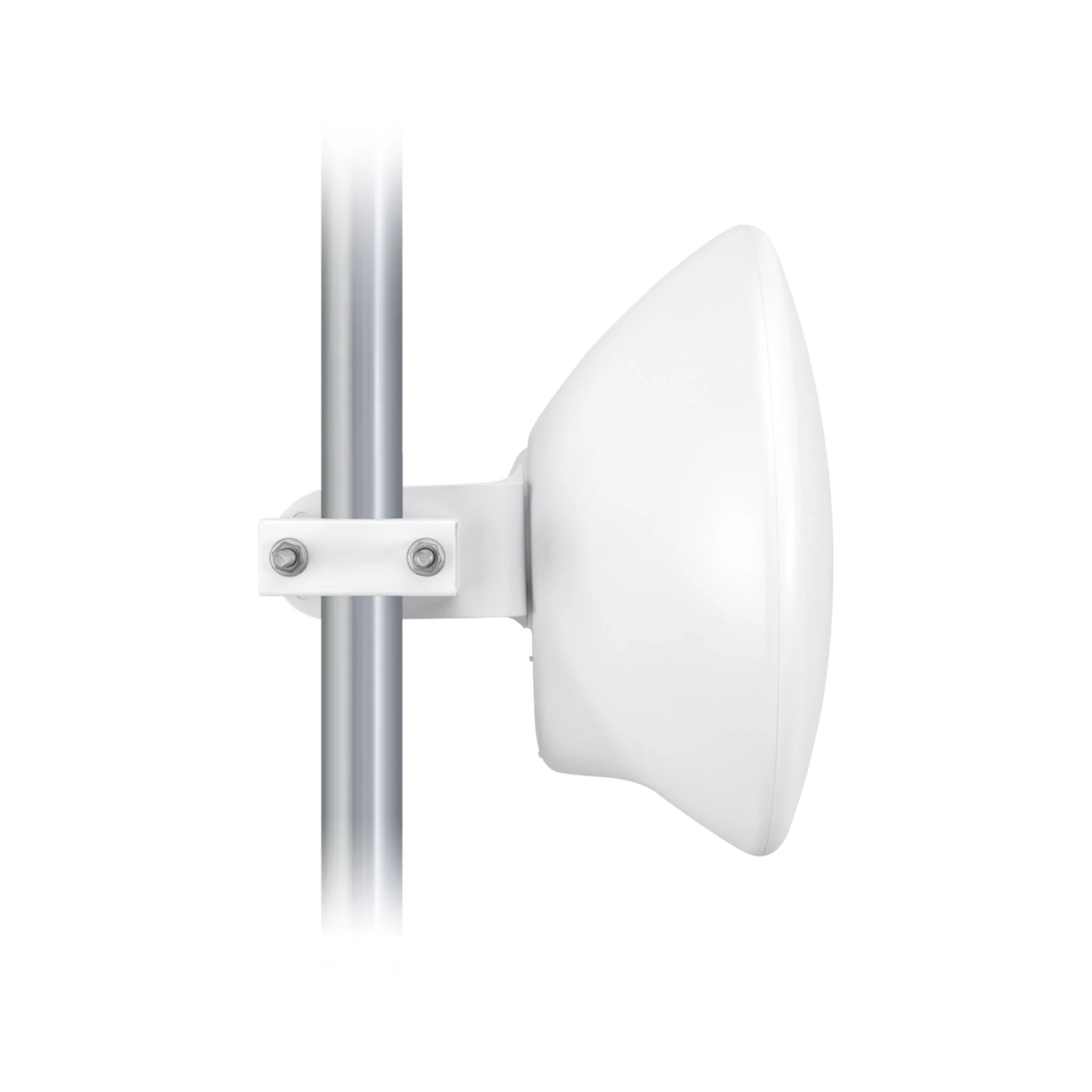

Mounting	Pole mount (Kit included)
Wind Loading	150 N at 200 km/h (33.72 lbf at 125 mph)
Wind Survivability	200 km/h (125 mph)
Hardware
Networking Interface	(1) GbE RJ45 port
Power Method	Passive PoE 2-pair (4, 5+; 7, 8-)
Power Supply	24V, 0.5A gigabit PoE adapter (Included)
Supported Voltage Range	22–27V DC
Max. Power Consumption	9W
ESD/EMP Protection	Air/contact: ± 24kV
Ambient Operating Temperature	-40 to 60° C (-40 to 140° F)
Ambient Operating Humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
NDAA Compliant	Yes
Software
Modes	PtMP CPE, PtP* *1.5.1 and later 1.5.x series firmware
Services	SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog
Utilities	airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation
Auto Distance Adjustment	Yes
Auto Power Adjustment	Yes
Network	Bridge/Router* mode *Router mode is available in PtMP CPE mode only
Security	Yes
Statical Reporting	Yes
Management Interface	Bluetooth management for easy setup over UISP App WEB UI Minimum software requirements: Any modern web browser, iOS™ or Android™ based smartphone
System
Maximum Throughput	900+ Mbps* *FW version 2.3.0 and later
Encryption	WPA2-PSK (AES)
Uplink/Downlink Ratio	25/75, 33/67, 50/50
RF
Operating Frequency	US/CA: U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz EU: 2400 - 2483.5 MHz, 5150 - 5875 MHz Worldwide: 2400 - 2483.5 MHz, 4800 - 6200 MHz *Depends on regulatory region
Max. Conducted TX Power	22 dBm (per chain)
Channel Bandwidth	10/20/30/40/50/60/80/100 MHz* *FW version 2.3.0 and later
Antenna Gain	24 dBi
Beamwidth	14°
Sidelobe Level	-10 dB
Front-to-Back Ratio	27 dB



FAQs

Q1: What is the Ubiquiti LTU-Pro?
A1: The Ubiquiti LTU-Pro is a high-performance 5 GHz PtMP (Point-to-Multipoint) client radio designed for outdoor wireless networks. It features a 24 dBi integrated antenna, supports 900+ Mbps throughput, and utilizes Ubiquiti's proprietary LTU technology for advanced RF performance.

Q2: What are the key specifications of the LTU-Pro?
A2:

• Frequency Range: 5.15–5.85 GHz

• Gain: 24 dBi

• Beamwidth: 14°

• Maximum Throughput: 900+ Mbps

• Channel Widths: 10/20/30/40/50 MHz

• Modulation: 1024-QAM

• Power Consumption: 9W

• Power Supply: 24V Passive PoE (Gigabit PoE adapter included)

• Operating Temperature: -40°C to 60°C

• Mounting: Pole mount (kit included)

• Certifications: CE, FCC, IC

• ESD Protection: ±24kV

• Weatherproofing: IPX6

• Bluetooth Management: Yes

Q3: How does the LTU-Pro compare to other Ubiquiti devices?
A3: The LTU-Pro offers higher throughput and advanced RF performance compared to traditional 802.11-based devices. Unlike airMAX or airFiber products, the LTU-Pro utilizes Ubiquiti's proprietary LTU technology, providing improved spectral efficiency and reduced latency in PtMP deployments.

Q4: What software features does the LTU-Pro support?
A4: The LTU-Pro supports various software features, including:

• SNMP

• SSH

• Dynamic DNS

• Web interface

• Remote logging

• Ping watchdog

• Utilities such as airView®, speed test, alignment, discovery, ping, traceroute, cable test, and constellation

• Auto distance and power adjustment

• Router mode support (available in PtMP CPE mode)

• Bluetooth management via the UISP app

Q5: How is the LTU-Pro installed and powered?
A5: The LTU-Pro is powered via 24V passive PoE, with a Gigabit PoE adapter included in the package. It features a pole mount kit for easy installation and alignment. The device also supports Bluetooth management for convenient setup using the UISP app.
