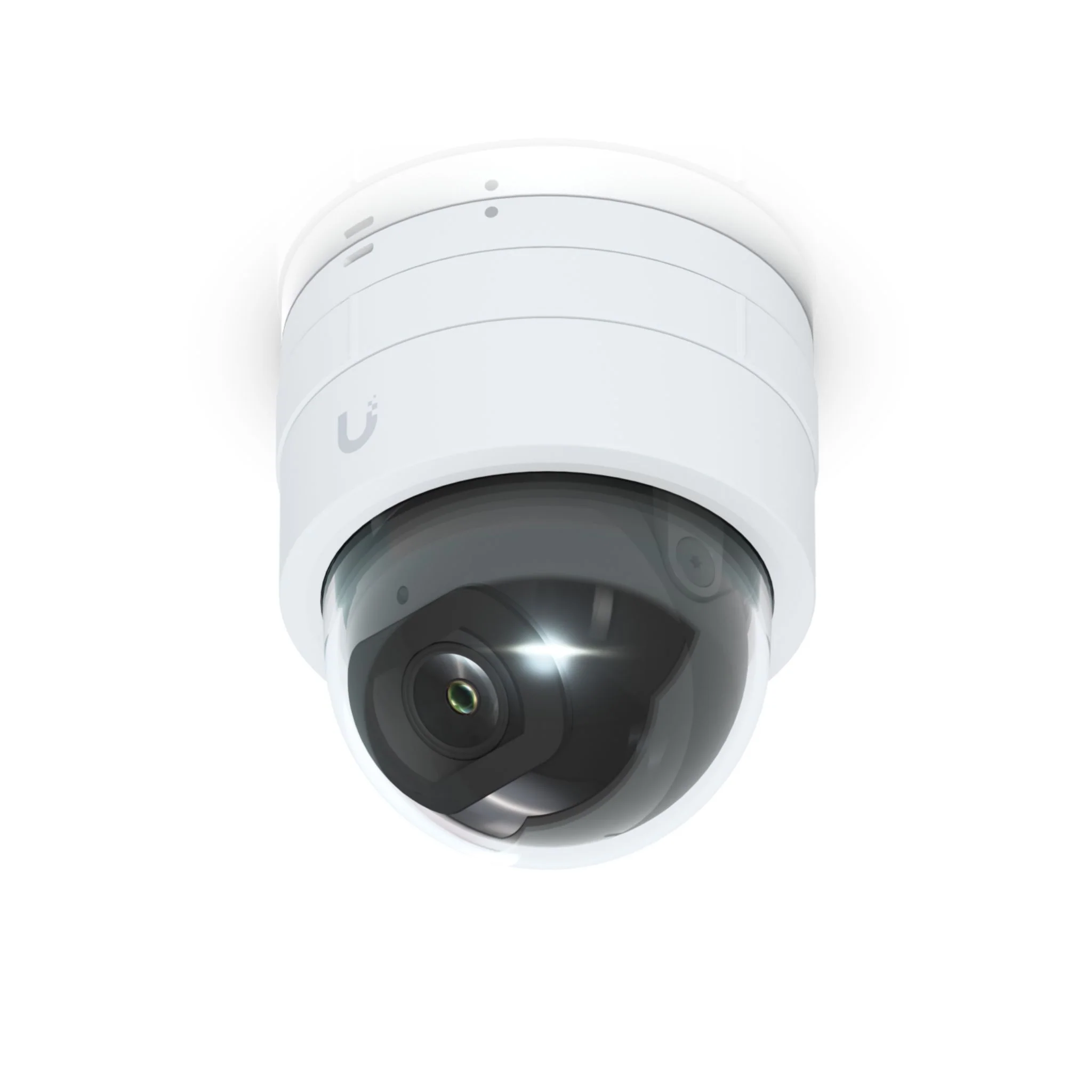

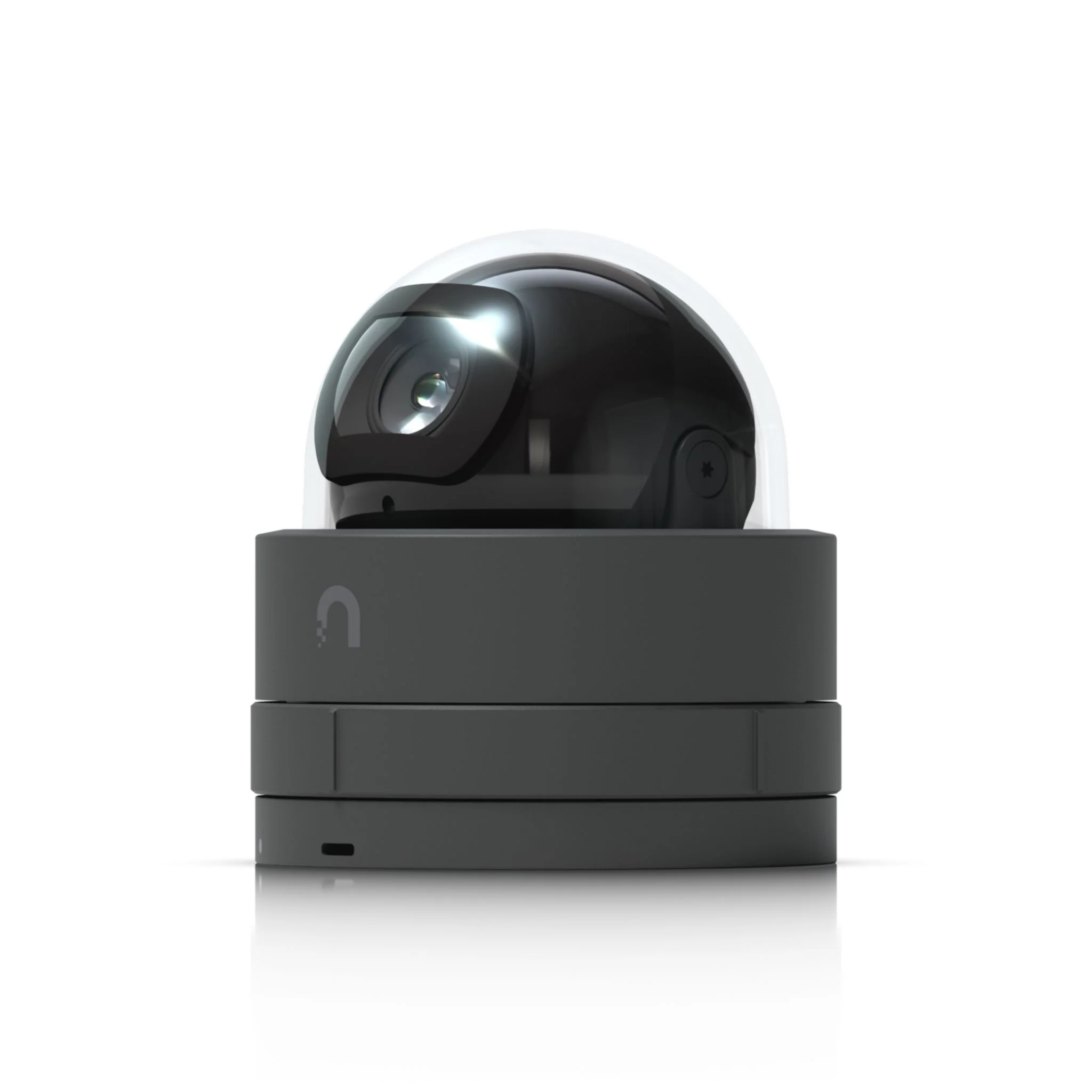

Ubiquiti UniFi G5 Dome Ultra
The Ubiquiti G5 Dome Ultra is an ideal choice for discreet indoor security due to its compact size and tamper-resistant design. Equipped with 2K HD resolution and a wide 102.4° viewing angle, it also features advanced AI event detection and 20 m (65 ft) IR night vision. Additionally, it can be easily connected and powered using PoE, with the option for in-ceiling installation using the Flush Mount accessory.
Tech Specs
Click here for the UniFi G5 Dome Ultra datasheet.
| Device Specifications | |
|---|---|
| Overview | |
| Dimensions | Ø63.6 x 68.2 mm (Ø2.5 x 2.7") |
| IR Night Vision | 20 m (65 ft) |
| Smart Detections (People, Vehicles, Animals) | ✓ |
| Resolution | 2K |
| Field of View | H: 102.4° V: 54.9° D: 120.6° |
| Tamper Resistance | IK06 |
| Mounting | Surface mount (Included) Junction box, Ultra Flush mount (Optional) |
| Performance | |
| Networking Interface | 10/100 MbE RJ45 port |
| Video |
Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay Max. Frame Rate: 30 FPS Resolution: 4MP 2688 x 1512 (16:9) |
| Optics |
Sensor: 1/2.4" CMOS Lens: Fixed focal length Night Mode: Built-in IR LED illumination and IR cut filter |
| Hardware | |
| Max. Power Consumption | 4.2W |
| Supported Voltage Range | 37—57V DC |
| Power Method | PoE |
| Processor | Dual-core Arm® Cortex®-A7 based chip |
| Weight | 175 g (6.2 oz) |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Stainless steel |
| Button | (1) Factory-reset |
| Ambient Operating Temperature | -20 to 40° C (-4 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
FAQs
Q: What is the Ubiquiti UVC-G5-Dome-Ultra and what is it designed for?
A: The UVC-G5-Dome-Ultra is an ultra-compact, tamper-resistant indoor dome camera delivering 2K (4 MP) PoE video with integrated night vision, ideal for discreet, low-profile surveillance.
Q: What image quality and field-of-view does it offer?
A: It captures crisp 4 MP (2688 × 1512) footage at up to 30 FPS, with a wide 102.4° horizontal, 54.9° vertical, and 120.6° diagonal field of view.
Q: How effective is its night vision and what detection features does it include?
A: Equipped with built-in IR LEDs and IR-cut filter, it supports night vision up to 20 meters (65 feet). It also includes smart detection capabilities for people, vehicles, and animals.
Q: What are the camera’s physical and mounting specifications?
A: Measuring just Ø63.6 × 68.2 mm (2.5 × 2.7 in) and weighing 175 g (6.2 oz), it boasts an IK06 impact rating. Standard mounting is surface-based, with optional ultra-flush and junction box mounts available.
Q: How is the UVC-G5-Dome-Ultra powered, managed, and what are its operating conditions?
A: Powered using 802.3af PoE (37–57 V DC), it has a low power draw of 4.2 W. The camera uses a dual-core Arm Cortex-A7 processor and integrates with UniFi Protect for streamlined remote monitoring and management. It operates reliably between −20 °C to 40 °C with 10–90% non-condensing humidity, and holds CE, FCC, IC, and NDAA certifications.
Resources
