Ubiquiti UniFi Access G2 Starter Kit
Easily begin using Access with everything necessary for a single door and reader. Product boasts (1) UniFi Access Door Hub, (1) Access Reader G2, and (10) UniFi Access Cards.
Tech Specs
| Device Specifications — Zoom In Access System | |
|---|---|
| Overview | |
| In the Box | (1) Door Hub (1) G2 Reader (10) Access Cards |
| Door Hub | |
| Dimensions | 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3") |
| Supported Doors | 1 |
| Input Terminals | (2) Door exit request (1) Door position (1) Emergency |
| Power Method | PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| NDAA Compliant | ✓ |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Weight | 363 g (12.8 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Mounting | DIN-rail (Included) |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Networking Interface | (5) 10/100/1000 Base-T |
| PoE Interface | (1) PoE++ input, 50V DC, 1A (4) PoE outputs, 50V DC, 30W per port (Max 45W aggregated) |
| Max. Power Consumption | 30W (Without PoE output) 50W (With PoE output) |
| Digital Input | Request to exit, request to enter, remote release, door position sensor |
| Dry Output Relay | Lock: 30V DC, 1A Aux: 30V DC, 1A |
| Powered Output Relay | Lock: 12V DC, 1A Aux: 12V DC, 0.33A |
| LEDs | B/W |
| Button | (1) Factory-reset |

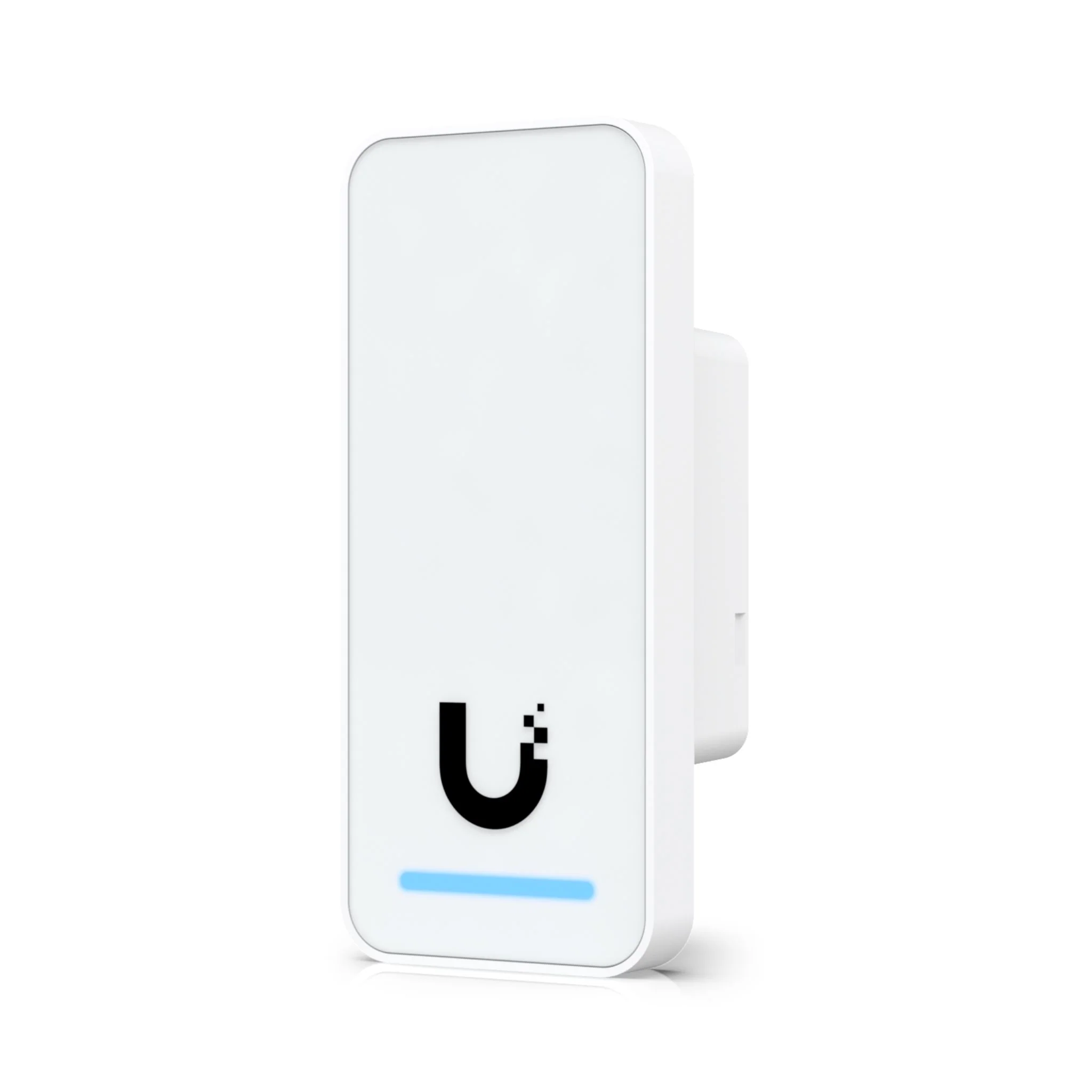

| G2 Reader | |
| Dimensions | 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4") |
| NFC Card & Keyfob Access | ✓ |
| Mobile Unlock | ✓ |
| Handwave Request to Exit | ✓ |
| Weatherproofing | IP55 |
| NDAA Compliant | ✓ |
| Weight | 82 g (2.9 oz) |
| Enclosure Material | Polycarbonate, glass |
| Mount Material | Aluminum alloy |
| Mounting | In-wall, gang box (Included), Junction box (Optional) |
| Ambient Operating Temperature | -30 to 45° C (-22 to 113° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity | BLE 4.1, NFC |
| Power Method | PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 5W |
| Supported Voltage Range | 48V DC |
| ESD/EMP Protection | Air: ±15kV, contact: ±8kV |
| Sensors | Proximity sensor, Speaker (1) Yes, 0.7W |
| LEDs | R/G/B/W |
| Button | (1) Factory-reset |
| NFC Read Range | < 30 mm (1.18'') |
| NFC Frequency | 13.56 MHz |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T |
| Access Card | |

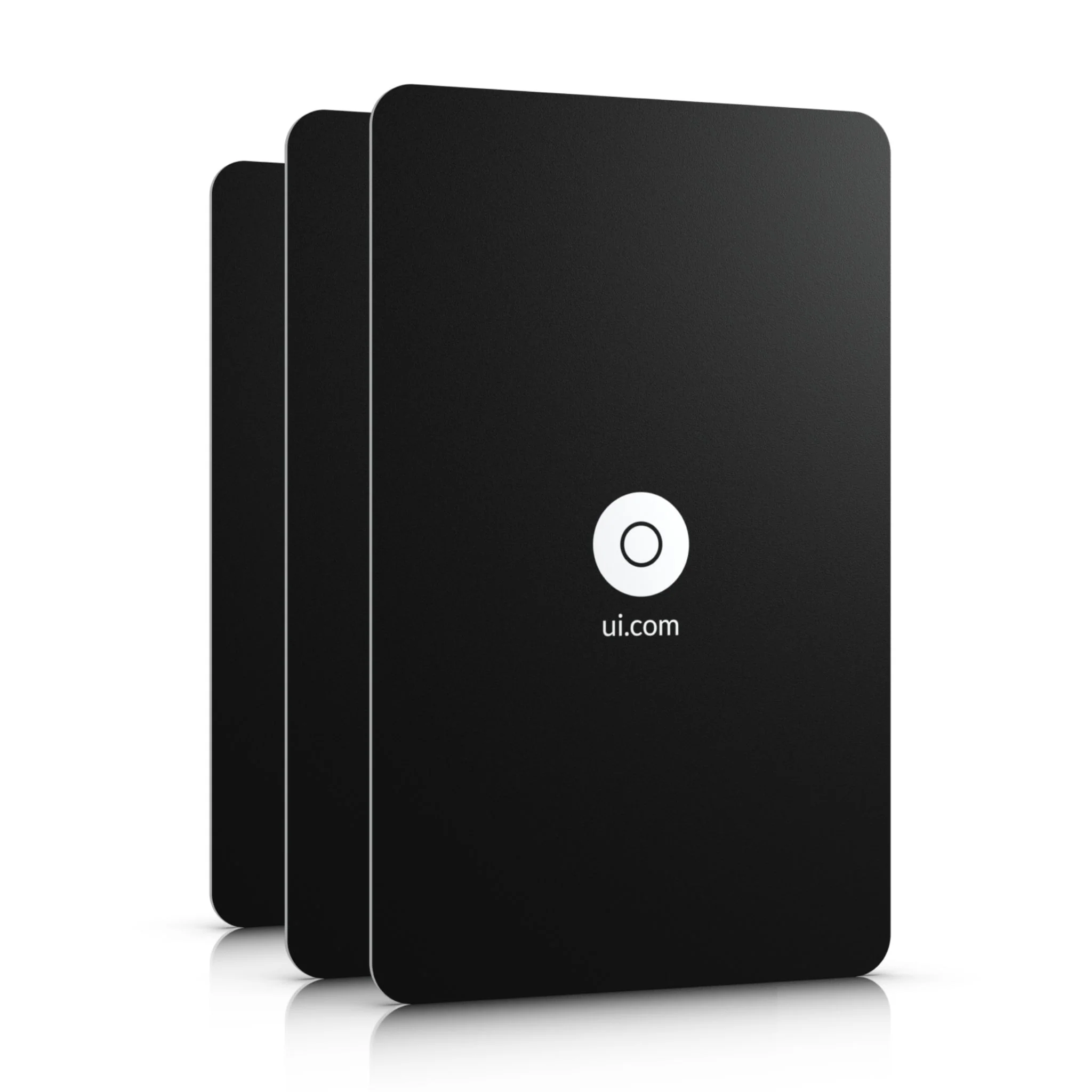

| Dimensions | 85.6 x 53.98 x 0.84 mm (3.37 x 2.13 x 0.03") |
| Weight | 5 g (0.18 oz) |
| Format | ISO 7810 ID-1 |
| NFC Frequency | 13.56 MHz |
| NFC Technology | ISO/IEC 14443 Type A, MIFARE DESFire, UniFi Access Proprietary Security Protocol |
| NDAA Compliant | ✓ |
FAQs
Q1: What is included in the Ubiquiti UA-G2-SK kit?
A: The UA-G2-SK is a UniFi Access starter kit that includes one G2 access reader, one Door Hub controller, and a pack of NFC access cards for user credential setup.
Q2: How does the UA-G2-SK connect to a network?
A: The Door Hub connects to a network via Ethernet and is powered through PoE. The G2 reader connects back to the Door Hub over a standard Ethernet run.
Q3: What authentication methods does the G2 Reader support?
A: The G2 Reader supports NFC-based credentials and also works with UniFi Access mobile credentials, enabling contactless unlocking via supported devices.
Q4: Can the UA-G2-SK control different types of electronic door locks?
A: Yes. The Door Hub provides relay outputs that can interface with common access-control hardware such as magnetic locks, electric strikes, or door sensors.
Q5: Is the G2 Reader suitable for outdoor installation?
A: The G2 Reader is built with a weather-resistant enclosure suitable for indoor or sheltered outdoor mounting, depending on environmental conditions.
Resources
