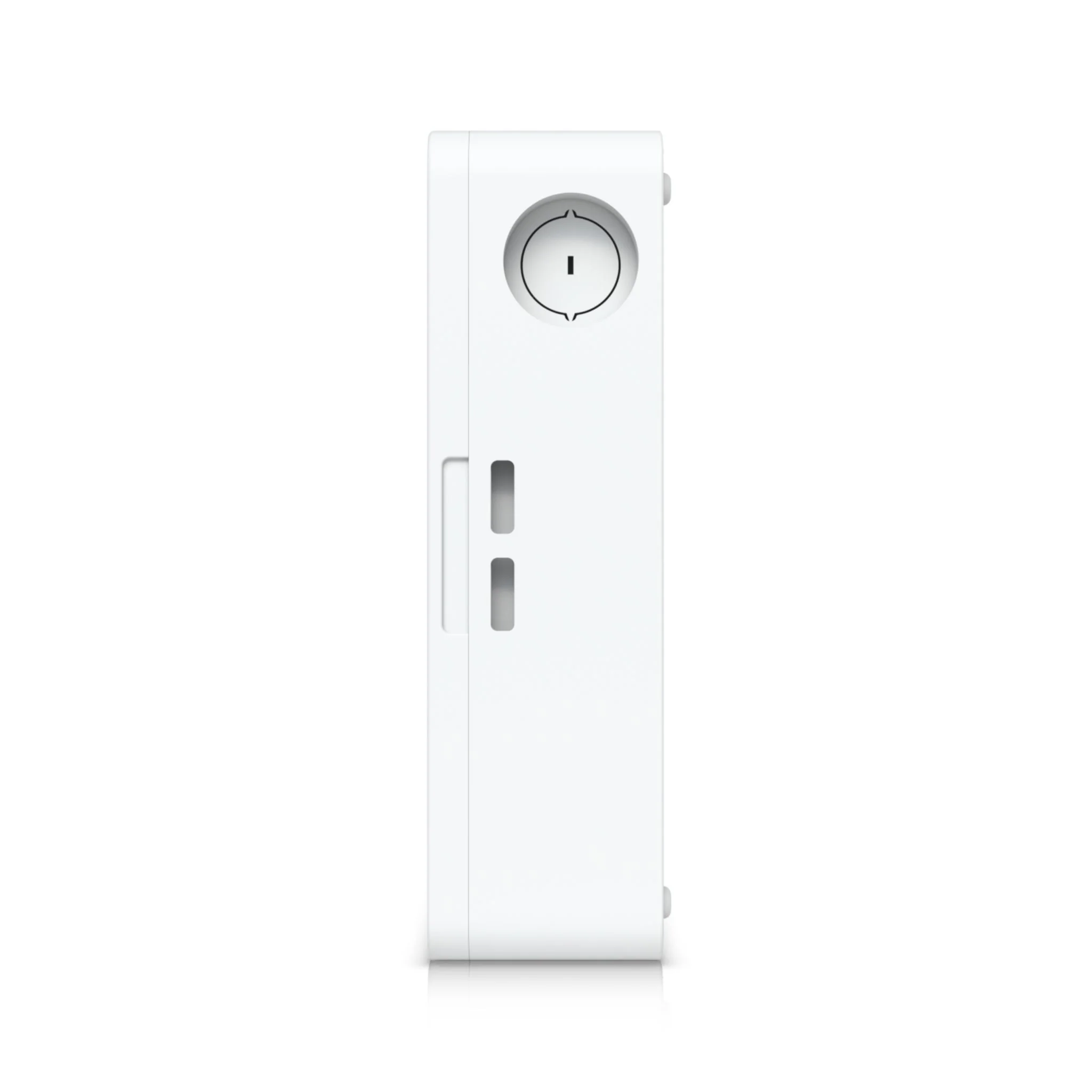

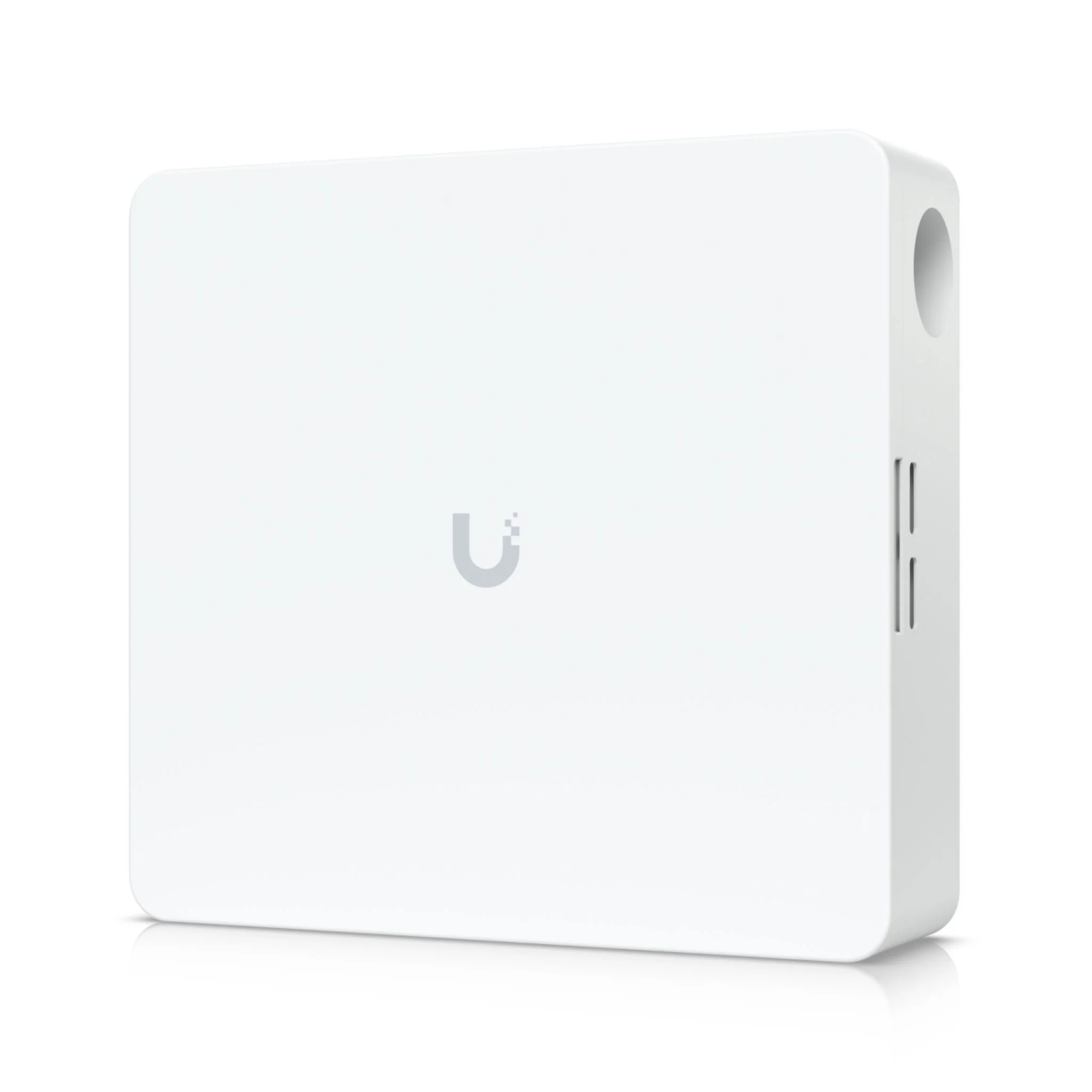

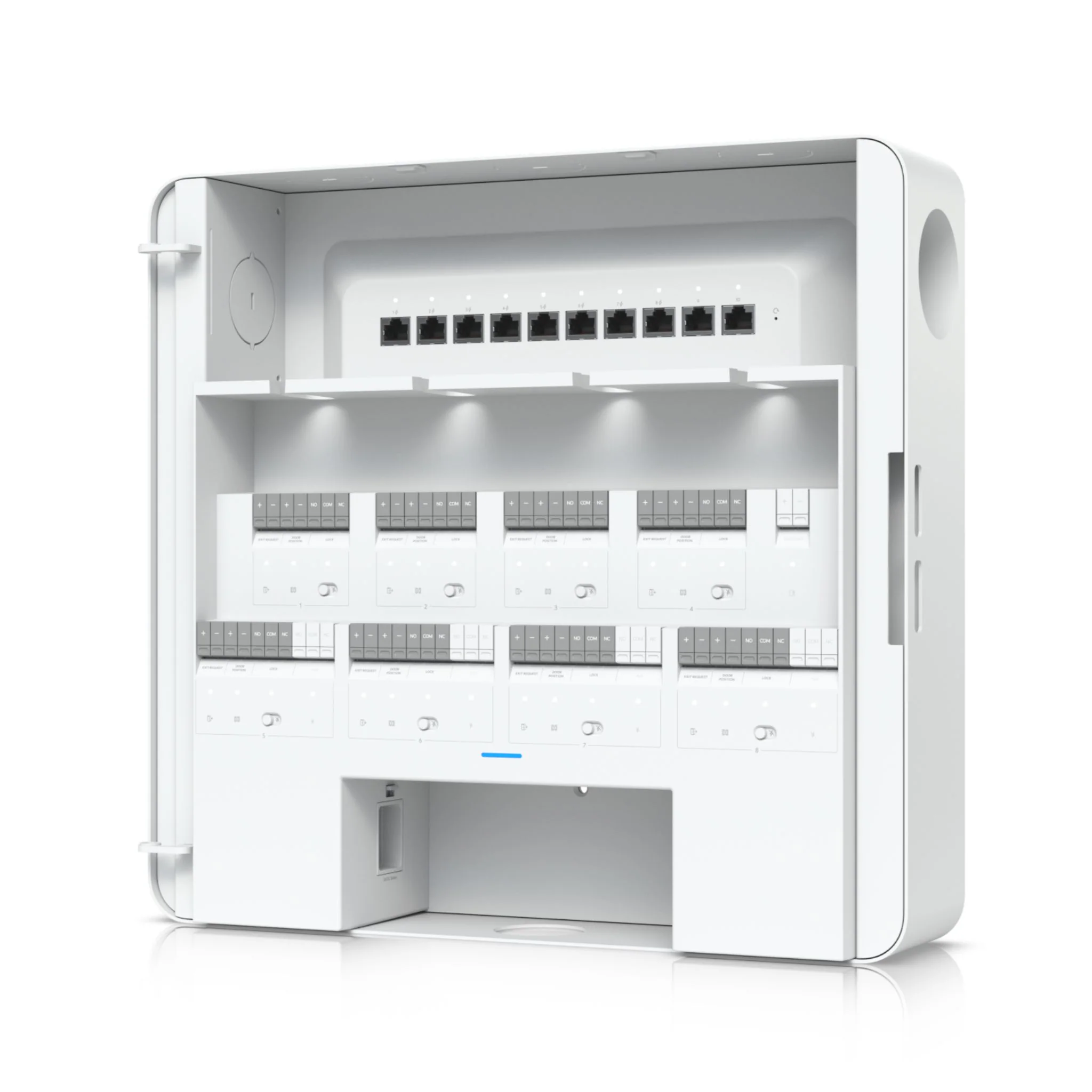

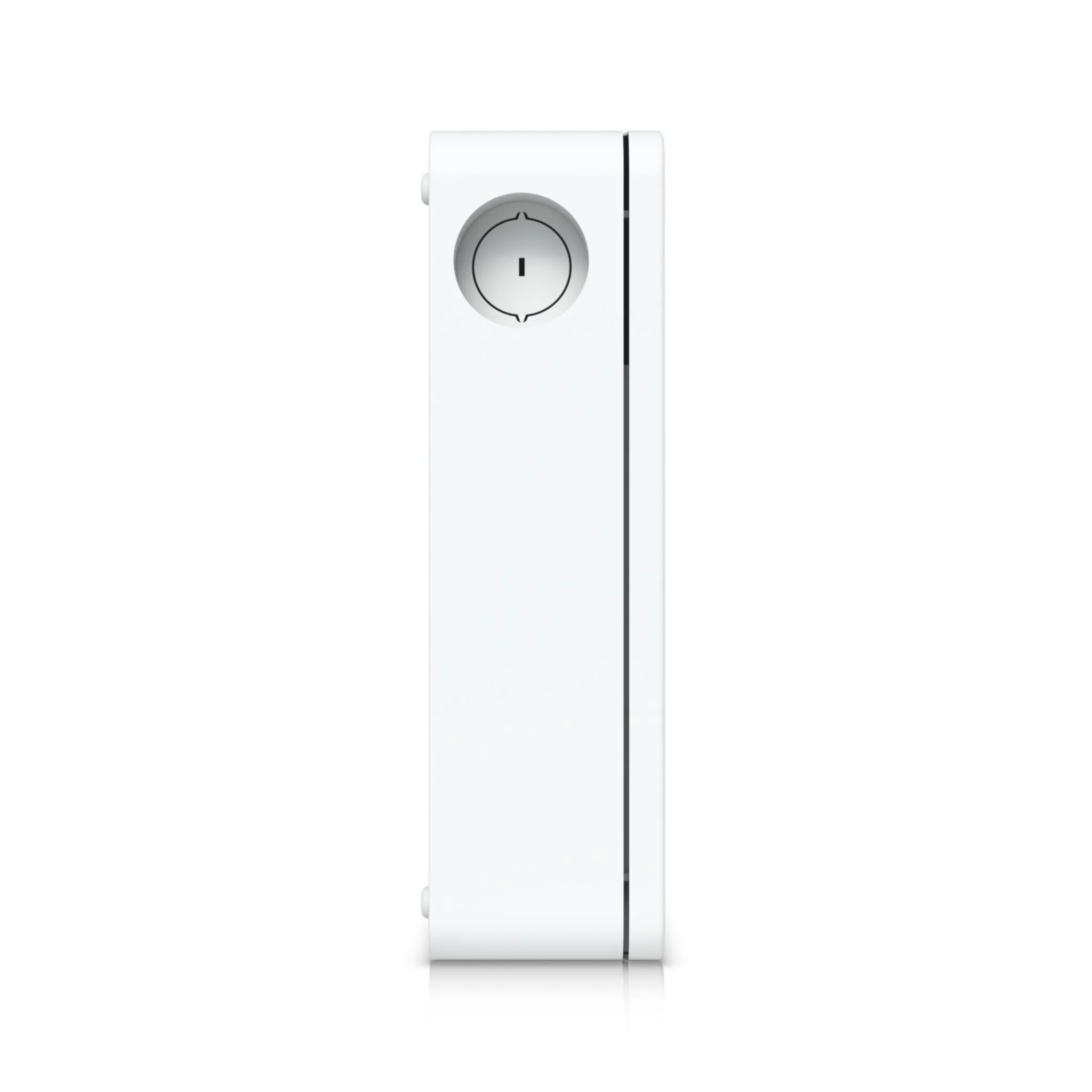

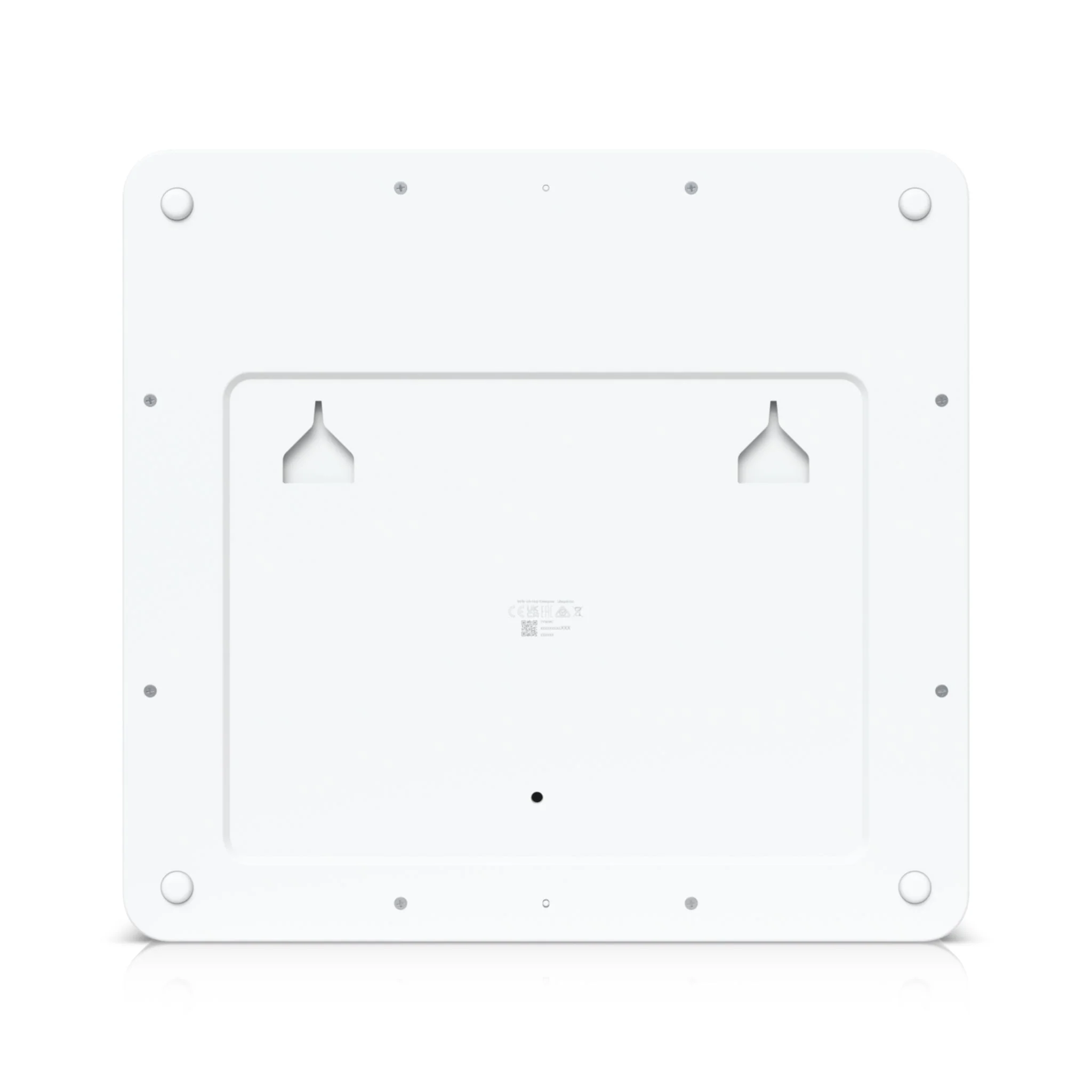

Ubiquiti UniFi Enterprise Access Hub
This Ubiquiti Enterprise Access Hub boasts a high-quality grade that allows for efficient control of up to eight doors, supported by battery backup. The product includes 8 lock terminals (12V or Dry), 8+8 inputs for request-to-exit devices and door position sensors, 8 PoE ports for Access Readers, 4 AUX terminals for chimes, sirens, or door openers, and a battery backup input (32-48V).
Tech Specs
Click here for the UniFi Enterprise Access Hub datasheet.
| Device Specifications | |
|---|---|
| Overview | |
| Dimensions | 379 x 355 x 105 mm (15 x 14 x 4.1") |
| UniFi Application Suite | Access ✓ |
| Supported Doors | 8 |
| Input Terminals | (8) Door exit request (8) Door position (1) Emergency |
| Power Method | Universal input, 100–240V AC, Max. 4.4A, 50/60 Hz 32–48V DC Lead Acid Battery, Max. 7.5A @32V |
| NDAA Compliant | ✓ |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Mechanical | |
| Weight | Device: 9.1 kg (20 lb) Mount: 624 g (1.4 lb) |
| Enclosure Material | SGCC steel housing with polycarbonate cover |
| Mount Material | SGCC steel |
| Mounting | Wall |
| Hardware | |
| Digital Input | (8) Inputs for request-to-exit devices (8) Inputs for door position sensors (1) Emergency |
| Dry Output Relay | (8) Lock terminals (12V or Dry) (4) AUX terminals for advanced setup (Chime/Siren/Door opener) |
| Powered Output Relay | Lock: 12V DC, 1A/Dry Aux: Dry only |
| Indoor and Outdoor Use | Indoor only |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Networking Interface | (10) 10/100/1000 Base-T |
| PoE Interface | (8) PoE outputs, 50V DC, 30W per port (Max 190W aggregated) |
| Power Supply | AC/DC, internal |
| Max. Power Consumption | 240W |
| Max. PoE Wattage per Port | 30W |
| LEDs | W/B Learn More |
| Buttons | (1) Factory-reset |
| Recommend Max. Cable Length | UA-Lock-Electric (400mA) 24 AWG: 25 m (82 ft) 22 AWG: 42 m (138 ft) 20 AWG: 66 m (217 ft) 18 AWG: 100 m (328 ft) UA-Lock-Magnetic-540kg (500mA) 24 AWG: 20 m (66 ft) 22 AWG: 32 m (105 ft) 20 AWG: 51 m (167 ft) 18 AWG: 80 m (262 ft) UA-Lock-Magnetic-270kg (800mA) 24 AWG: 12 m (29 ft) 22 AWG: 20 m (98 ft) 20 AWG: 30 m (167 ft) 18 AWG: 46 m (151 ft) Other locks (1A) 24 AWG: 9 m (30 ft) 22 AWG: 15 m (49 ft) 20 AWG: 24 m (79 ft) 18 AWG: 36 m (118 ft) |
| PoE Cabling Requirements | Cable 5e minimum recommended. Conductor gauge: 26 AWG (0.13 mm²) for patch cords; 24 AWG (0.21 mm²) for horizontal/riser cable. |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment complies with NEC, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document | EAH-8, Ver 01 |
| Software | |
| Management Application | Access |
| Software Information | The software version can be checked at https://unifi.ui.com |
FAQs
Q. What type of device is the Ubiquiti EAH-8?
A: The EAH-8 is an 8-door access hub designed for UniFi Access, enabling centralised management of multiple entry points in a single system.
Q. How does the EAH-8 integrate with UniFi Access?
A: The hub integrates seamlessly with the UniFi Access platform, allowing real-time monitoring, event logging, and scalable multi-door access control.
Q. What networking and power options are available for the EAH-8?
A: The EAH-8 connects via Gigabit Ethernet and is powered through PoE (Power over Ethernet), simplifying installation with combined data and power delivery.
Q. What authentication methods does the EAH-8 support?
A: The EAH-8 works with UniFi Access readers, supporting RFID cards, keyfobs, PIN codes, and mobile credentials for secure access.
Q. What deployment environments are suitable for the EAH-8?
A: The EAH-8 is designed for commercial and enterprise environments requiring multi-door access management with scalable, centralised control.
