Ubiquiti airMAX Lite AP GPS

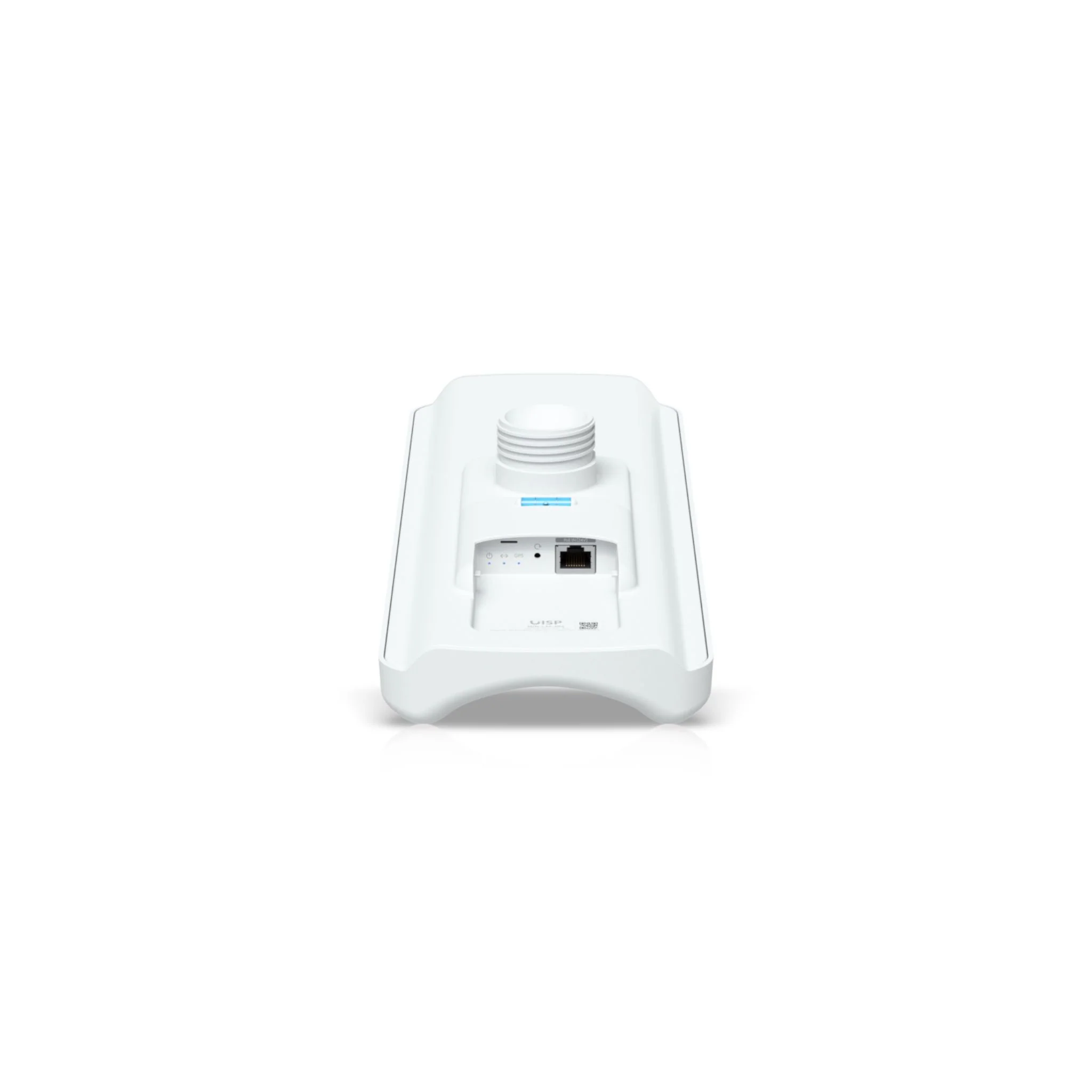

The airMAX Lite AP GPS is a high-performance, lightweight 2x2 MIMO 90° sector antenna with an integrated 5GHz radio. It offers 17dBi gain and up to 450+Mbps throughput speed, with GPS synchronization for improved network stability. Its unique ball joint mount allows for easy alignment and tool-free installation.
Any EU products are supplied with the appropriate UK power method at no extra cost.
Tech Specs
| Device Specifications | |
|---|---|
| Mechanical | |
| Dimensions | 361 x 129.6 x 71.3 mm (14.2 x 5.1 x 2.8") |
| Weight | 752 g (1.66 lb) |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 77 N at 200 km/h (17.3 lbf at 125 mph) |
| Hardware | |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.3A gigabit PoE adapter (Included) |
| Supported Voltage Range | 20—27V DC |
| Max. Power Consumption | 7.1W |
| Max. TX Power | 25 dBm |
| Antenna Gain | 17 dBi |
| ESD/EMP Protection | Air/contact ± 24kV |
| Shock and Vibrations | ETSI300-019-1.4 |
| Ambient Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
| Operating Frequency (MHz) | |
| US/CA | U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz |
| Worldwide | 5150 - 5875 MHz |
| Management Radio (MHz) | |
| US/CA | 2412 - 2462 MHz |
| Worldwide | 2412 - 2472 MHz |
FAQs
Q1: What is the Ubiquiti LAP-GPS?
A1: The LAP-GPS is a 5 GHz airMAX ac sector access point designed for outdoor use. It features a 17 dBi integrated antenna and GPS synchronization, making it ideal for point-to-multipoint (PtMP) deployments.
Q2: What are the key specifications of the LAP-GPS?
A2:
-
Frequency Band: 5 GHz
-
Antenna Gain: 17 dBi
-
Throughput: Up to 450 Mbps real TCP/IP
-
Client Capacity: 50+ clients
-
GPS Synchronization: Integrated
-
Power Method: 24V passive PoE (0.3A)
-
Operating Temperature: -40°C to 70°C
-
Dimensions: 360.98 x 124.57 x 71.28 mm
-
Weight: 752 g
-
Mounting: Pole-mounting kit included
Q3: How does GPS synchronization benefit the LAP-GPS?
A3: GPS synchronization allows multiple LAP-GPS units to operate on the same channel without causing interference. This feature is crucial for large-scale deployments where frequency reuse is necessary.
Q4: What is the typical range of the LAP-GPS?
A4: The LAP-GPS can achieve link distances of over 12 km, depending on environmental conditions and line-of-sight.
Q5: How is the LAP-GPS powered and installed?
A5: The LAP-GPS is powered via 24V passive PoE and includes a pole-mounting kit for easy installation. Its lightweight design and integrated antenna simplify alignment and setup.
