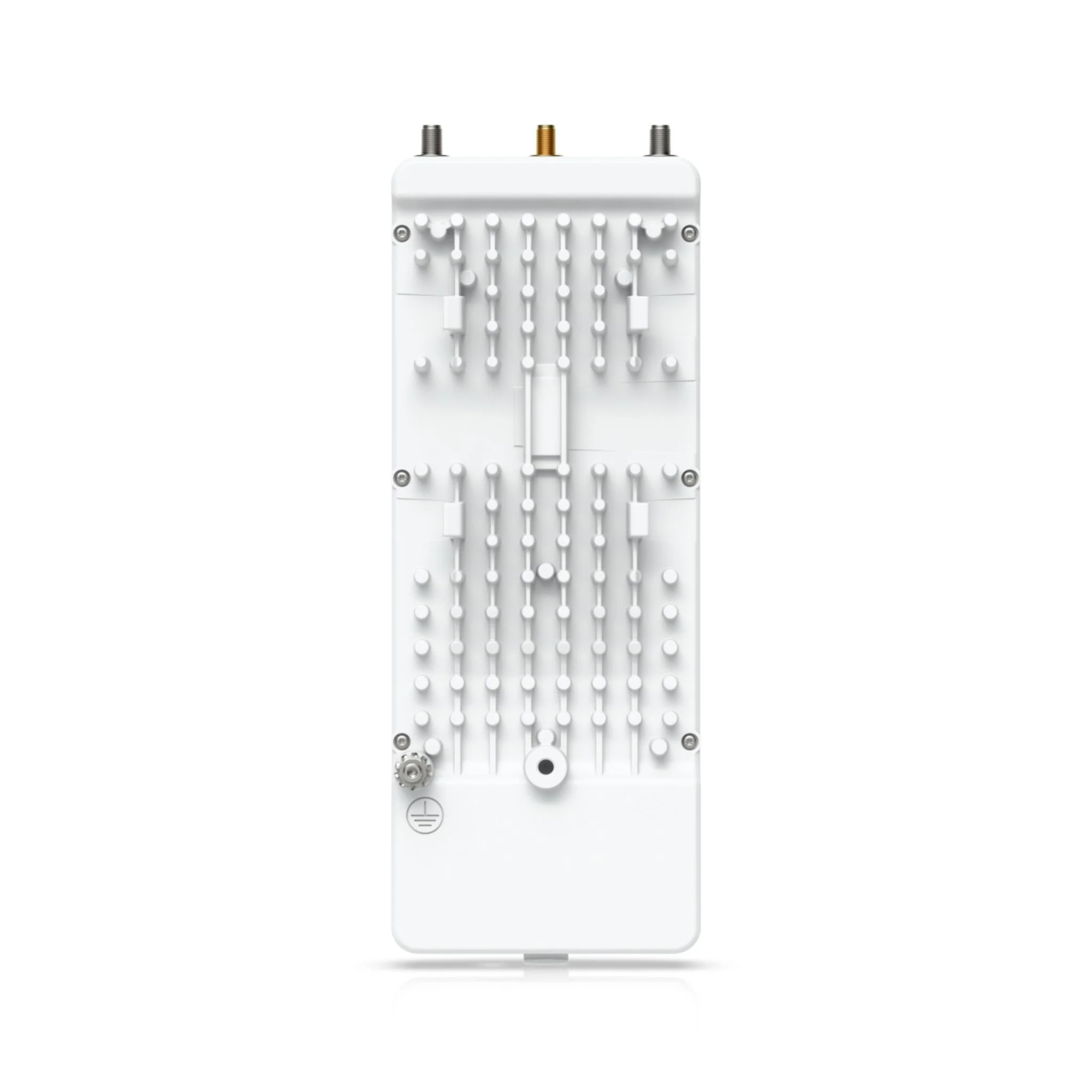

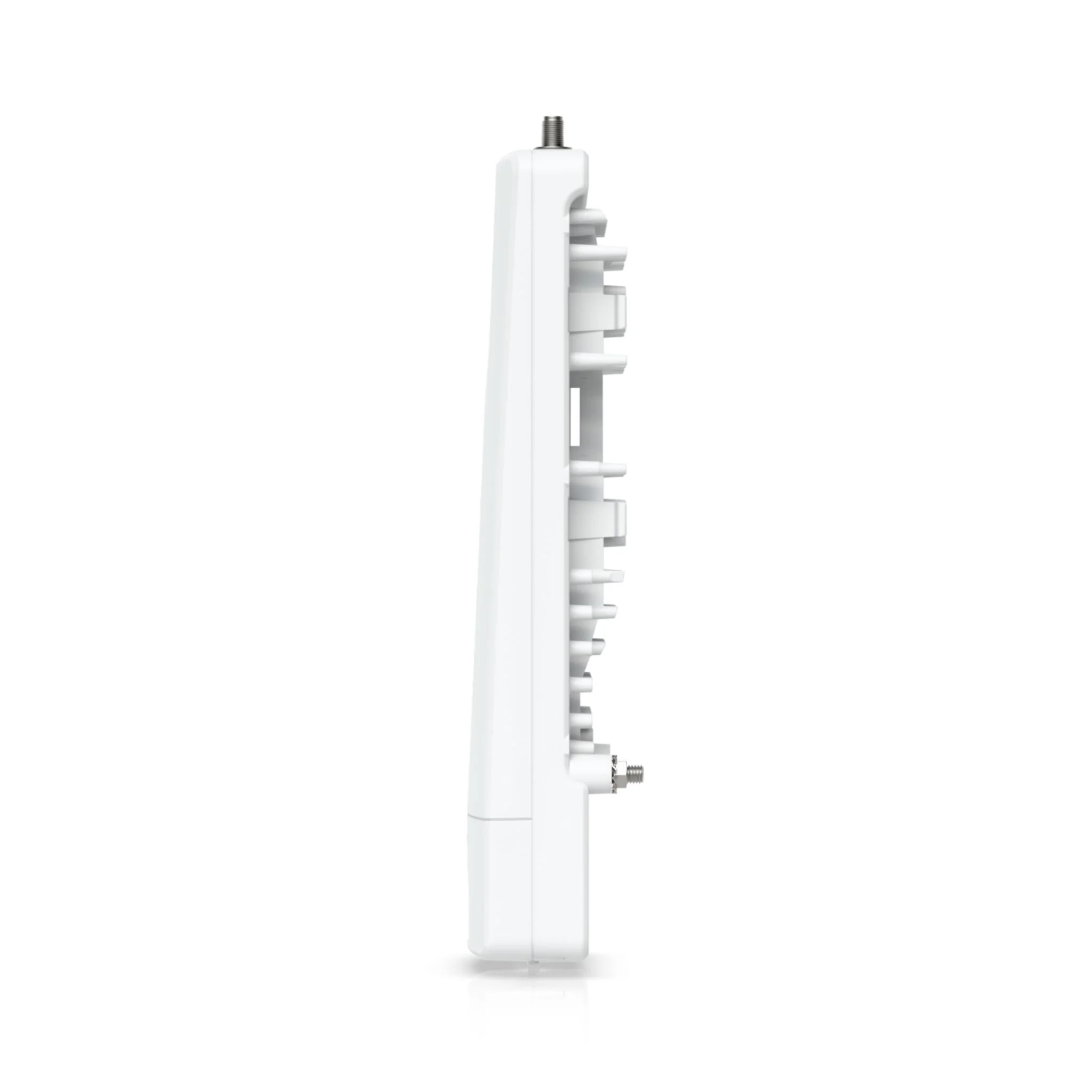

Ubiquiti airFiber 5XHD
The Ubiquiti airFiber 5XHD has a range of over 100 km and a throughput of 1000+ Mbps, is specifically designed for WISPs to provide a noise resilient and spectrally efficient solution. It features a 5 GHz frequency, a dedicated spectral analysis radio, integrated GPS sync, and 2+ Mpps processing capabilities.
Tech Specs
Click here for the Ubiquiti airFiber 5XHD datasheet.
| Device Specifications | |
|---|---|
| Mechanical | |
| Dimensions | 224 x 82 x 48 mm (8.8 x 3.2 x 1.9") |
| Weight | 0.4 kg (0.8 lb) |
| Mounting | airFiber X mount (Rocket mount compatible) GPS Pole Mount (Included) |
| Weatherproofing | IP67* *After installation of IP67 upgrade kit (included) |
| Hardware | |

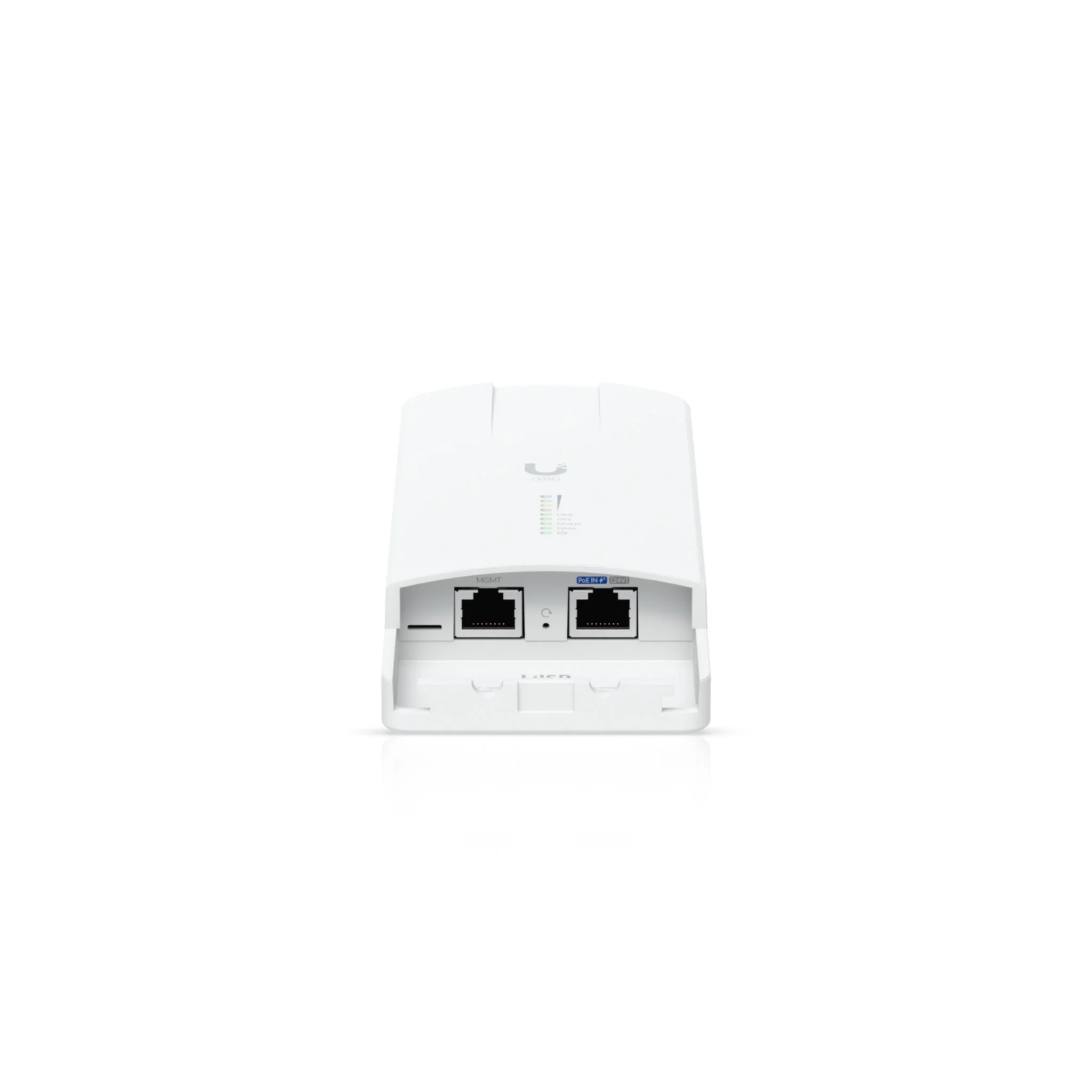

| Networking Interface | (2) GbE RJ45 ports |
| Power Method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-) or (1, 2+; 3, 6-) |
| Power Supply | 24V, 1A gigabit PoE adapter (Included) |
| Supported Voltage Range | 18—54V DC |
| Max. Power Consumption | 12W |
| GPS Antenna | External, magnetic base |
| Ambient Operating Temperature | -40 to 55° C (-40 to 131° F) |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
| Software | |
| Modes | PtP Master/Slave |
| Max. Throughput | 1+ Gbps |
| Max. Range* | 100+ km *Throughput and range values may vary depending on environmental conditions |
| Encryption | AES-256 |
| RF | |
| Max. TX Power* | 29 dBm *Depends on regional regulations |
| Frequency Accuracy | ± 2.5 ppm without GPS Synchronization ± 0.2 ppm with GPS Synchronization |
| Channel Bandwidth | 10/20/30/40/50/60/80/100 MHz selectable Programmable Uplink and Downlink duty cycles |
| Operating Frequency (MHz) | Worldwide: 4800 - 6200 MHz* US/CA: U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz *Depends on regional regulations |
FAQs
Q: What frequency range does the Ubiquiti AF-5XHD operate on?
A: The AF-5XHD operates in the 5.15–5.85 GHz band, delivering reliable high-speed connectivity for outdoor point-to-point and point-to-multipoint networks.
Q: What is the maximum throughput of the AF-5XHD?
A: This device supports up to 450+ Mbps real TCP/IP throughput, ensuring stable, high-capacity links for demanding wireless applications.
Q: Does the AF-5XHD include GPS synchronization?
A: Yes, integrated GPS sync reduces co-location interference, allowing multiple AF-5XHD units to operate in close proximity without signal conflicts.
Q: Can the AF-5XHD handle high-density deployments?
A: Absolutely, its advanced antenna design and airMAX AC technology make it ideal for high-density point-to-multipoint networks, such as campuses or large enterprise sites.
Q: How is the AF-5XHD powered and managed?
A: The device uses 24V Passive PoE and can be configured and monitored via the Ubiquiti Network Management System (UNMS) or airOS interface for streamlined network management.
