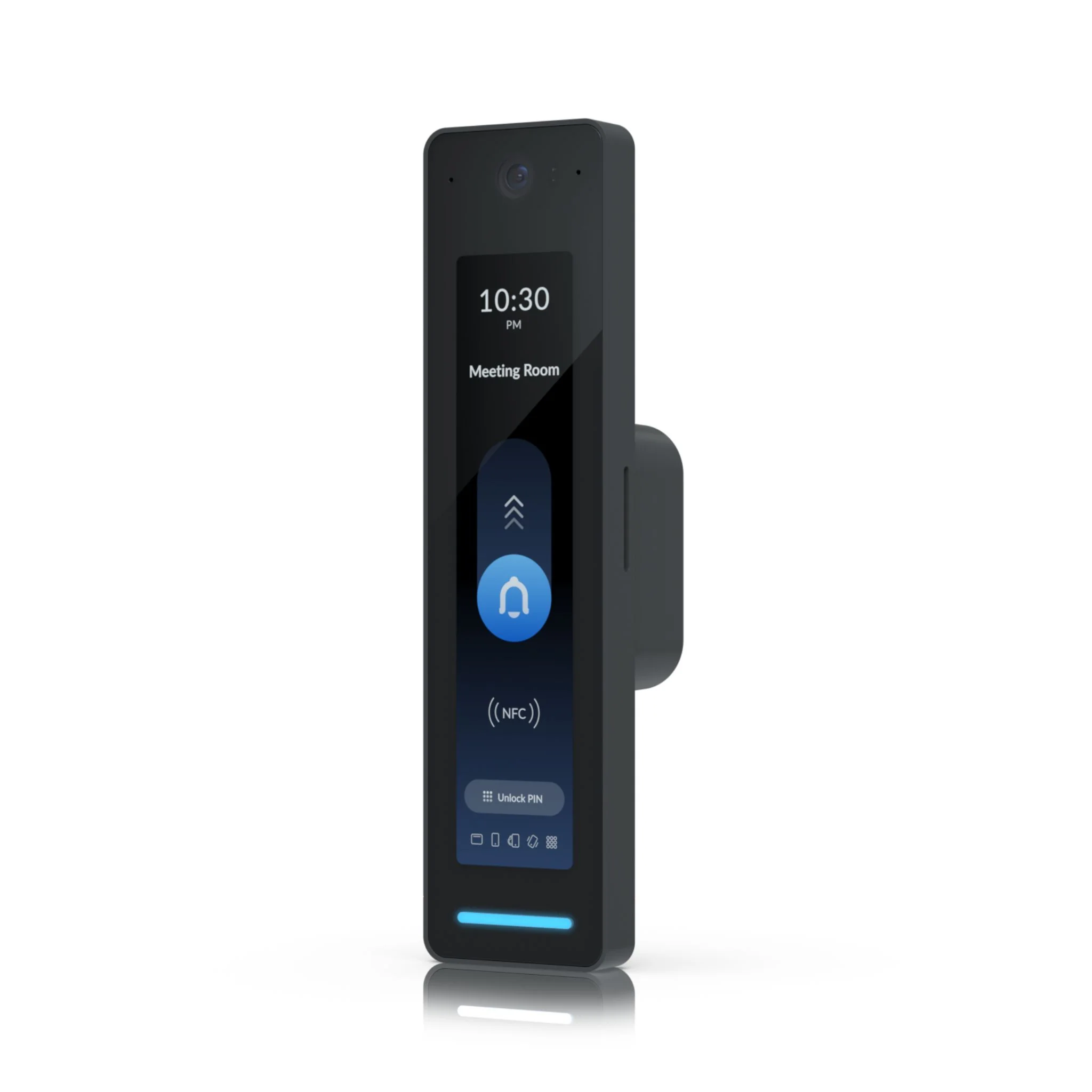

Ubiquiti UniFi Access Reader G2 Professional
This advanced version of NFC card reader and intercom allows for unlocking through an NFC card or the UniFi Identity mobile app, with additional features like a doorbell for visitor unlocking and a two-way intercom with video. The video can be viewed at ADA-compliant mounting height and the screen also allows for PIN unlocking. It connects to the UniFi Access Hub using PoE and is designed to withstand rain and temperatures between -10 to 45° C.
Tech Specs
Click here for the UniFi Access Reader G2 Pro Datasheet.
| Device Specifications | |
|---|---|
| Overview | |
| Dimensions | 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6") |
| Integrated Camera | ✓ |
| NFC Card & Keyfob Access | ✓ |
| PIN Access | ✓ |
| Mobile Unlock | ✓ |
| Two-Way Intercom & Doorbell Access | ✓ |
| NDAA Compliant | ✓ |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Weatherproofing | IP55 |
| Mechanical | |
| Weight | 136 g (4.8 oz) |
| Enclosure Material | Polycarbonate, glass |
| Mount Material | Aluminum alloy |
| Mounting | Wall, gang-box mount (Included) Angle mount, junction box (Optional) |
| Hardware | |
| Indoor and Outdoor Use | Yes |
| Ambient Operating Temperature | Device: -30 to 45° C (-22 to 113° F) Display: -10 to 45° C (14 to 113° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |

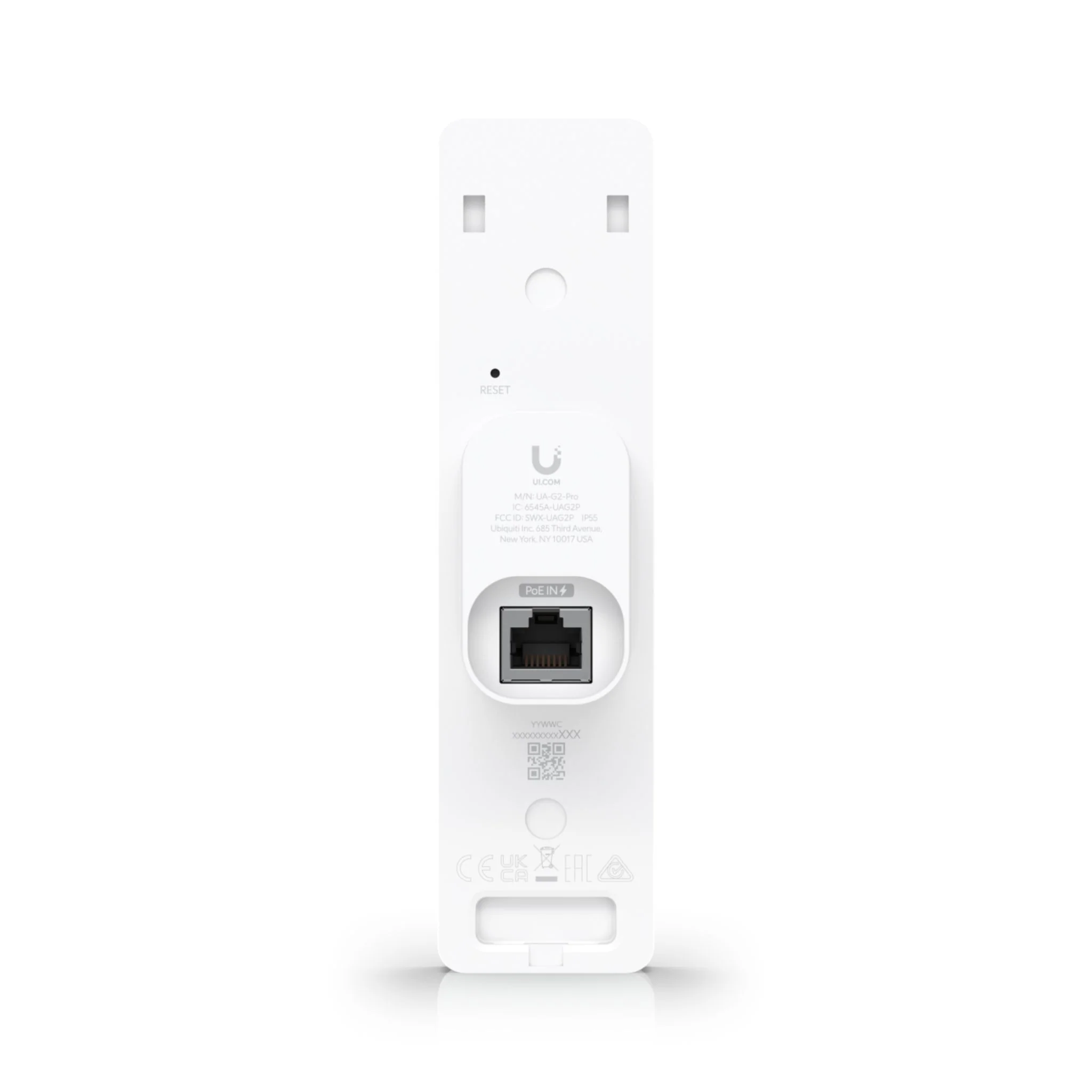

| Networking Interface | (1) GbE RJ45 port |
| Connectivity | BLE 4.2 NFC |
| Power Method | PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 6W |
| Supported Voltage Range | 48V DC |
| ESD/EMP Protection | Air: ±15kV, contact: ±8kV |
| Sensors | Proximity sensor |
| Display | |
| Screen Size | 120 mm (4.7") diagonal |
| Touch Screen Technology | Capacitive touch |
| Display Luminance | 480 nits (Typical) |
| Screen Orientation | Portrait |
| Resolution | 1280 x 286 px |
| Microphone | ✓ |
| Speaker | ✓ |
| LEDs & Button | |
| LEDs | R/G/B/W/Amber |
| Button | (1) Factory-reset |
| NFC | |
| Frequency | 13.56 MHz |
| Read Range | < 30 mm (1.18") |
| Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T |
| PoE & UL | |
| PoE Cabling Requirements | Cat 5e cabling minimum Conductor gauge: 26 AWG for patch cords; 24 AWG for horizontal/riser cable |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. Intended to comply with NEC ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and 3 Circuits |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1 |
| Document Number & Revision | UA-G2-Pro / UA-G2-Pro-Black, V02 |
| Software | |
| Management Application | Access |
| Software Information | The software version can be checked at https://unifi.ui.com |
FAQs
Q. What type of device is the Ubiquiti UA-G2-Pro?
A: The UA-G2-Pro is an RFID keyfob designed for use with UniFi Access readers, enabling secure and convenient contactless entry.
Q. What technology does the UA-G2-Pro use for authentication?
A: The UA-G2-Pro uses RFID technology to provide fast and secure authentication with compatible UniFi Access readers.
Q. How does the UA-G2-Pro integrate with UniFi Access?
A: The keyfob pairs with UniFi Access readers, allowing centralised management, real-time monitoring, and event logging through the UniFi Access platform.
Q. What durability and environmental features does the UA-G2-Pro offer?
A: The UA-G2-Pro is built for everyday use, lightweight, portable, and resistant to wear, making it suitable for long-term deployment.
Q. Can multiple UA-G2-Pro keyfobs be managed together?
A: Yes, multiple UA-G2-Pro keyfobs can be registered in UniFi Access, enabling scalable user and access control across a facility.
