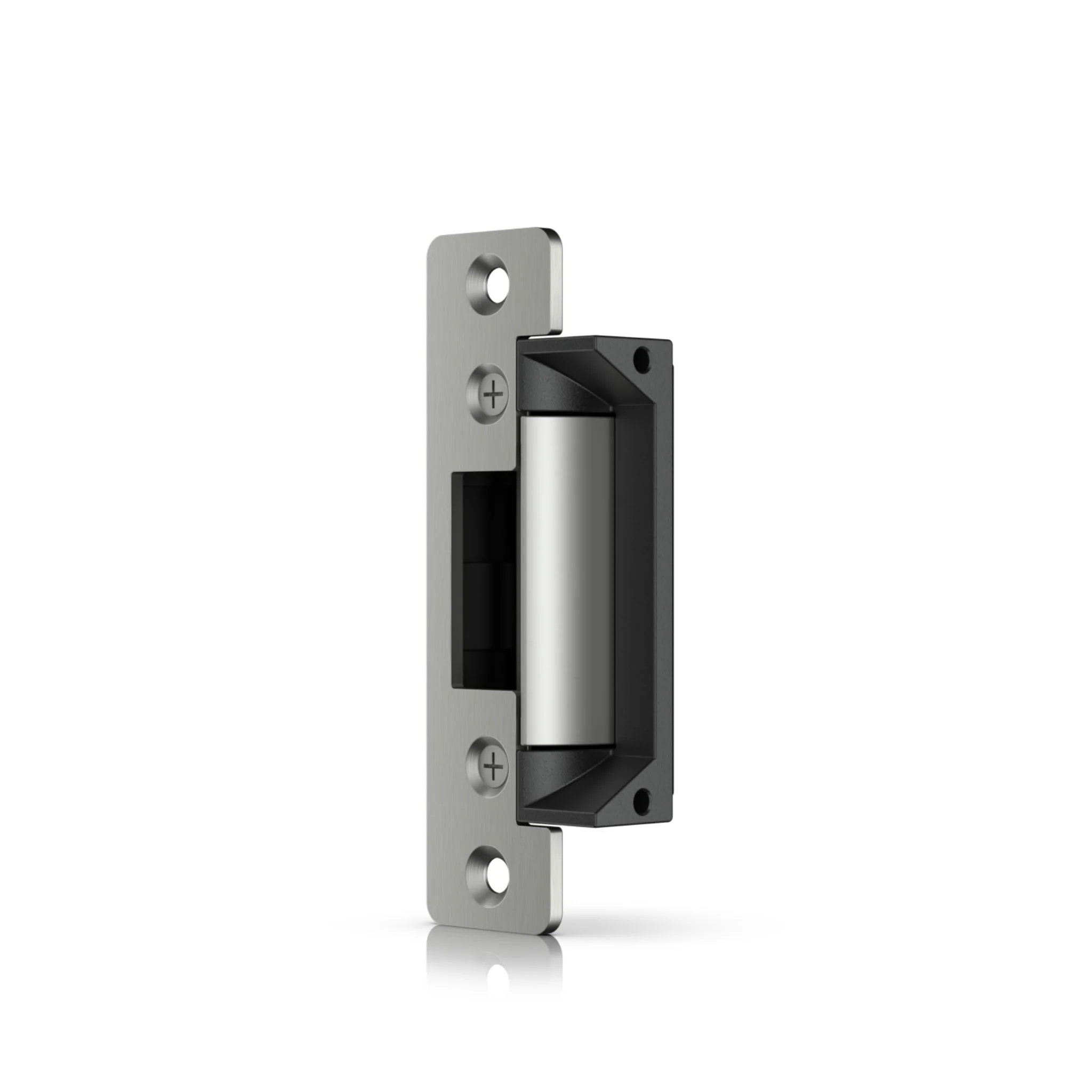

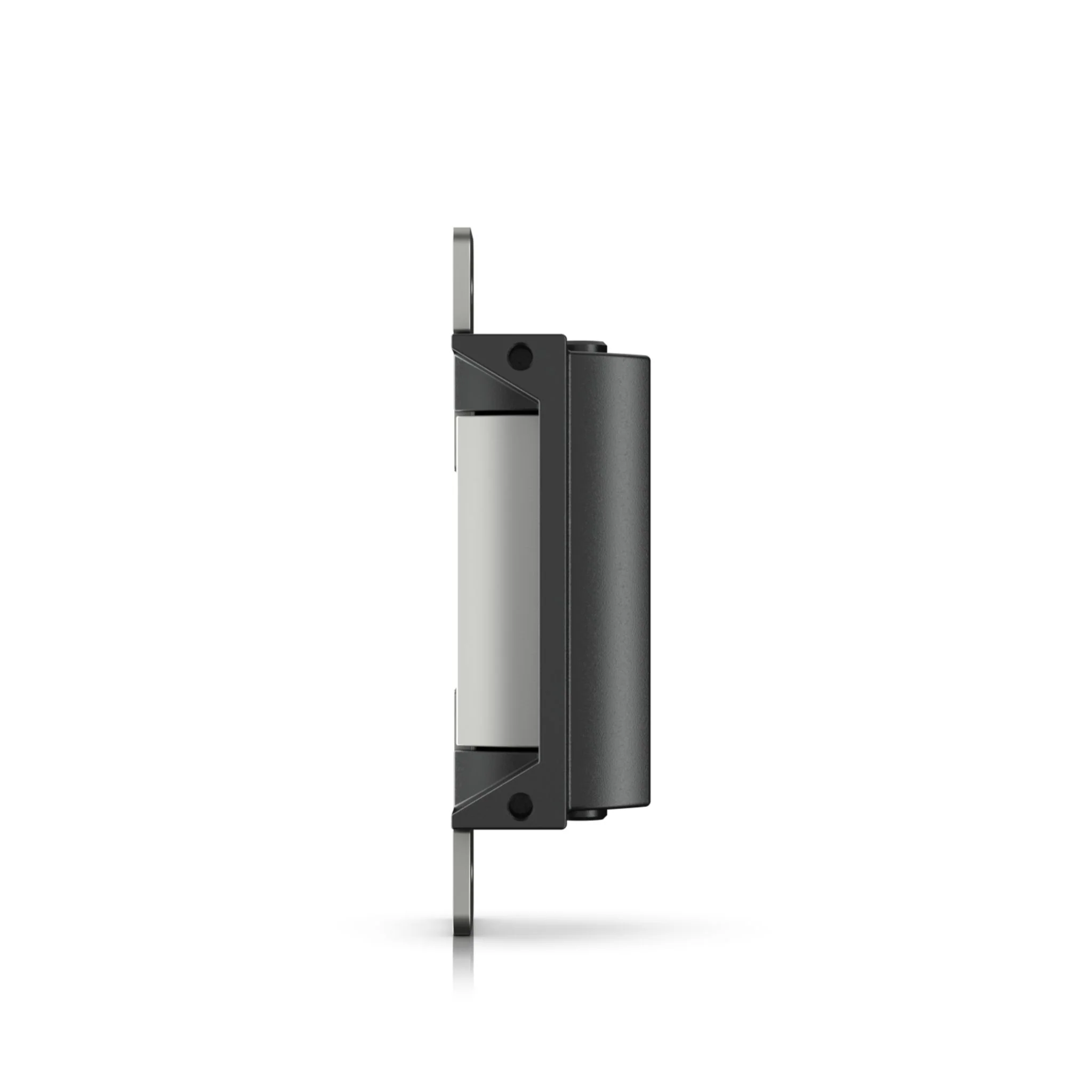

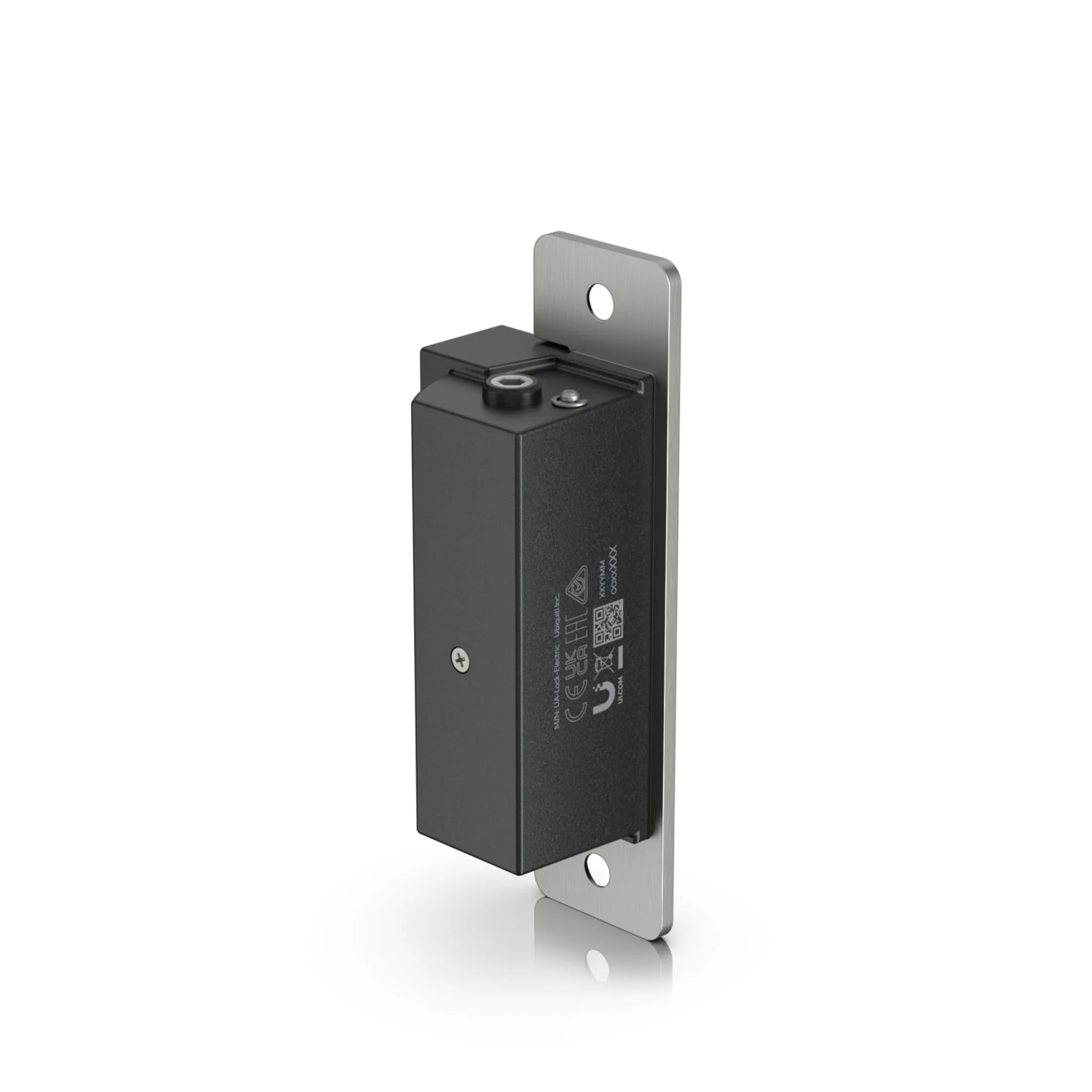

Ubiquiti Access Lock Electric
This electric strike lock, designed to fail-secure, easily connects to a UniFi Access Hub (UA Hub). It can hold an impressive weight of 1,200 kg (2,645 lb) and is compatible with installation on aluminium, steel, or wooden door frames. Additionally, it boasts an ANSI-compliant design.
Tech Specs
| Device Specifications | |
|---|---|
| Mechanical | |
| Dimensions | Lock body: 80 x 40 x 35 mm (3.2 x 1.6 x 1.4") Short front plate: 124 x 32 x 3 mm (4.9 x 1.3 x 0.1") Long front plate: 202 x 36 x 3 mm (7.9 x 1.4 x 0.1") |
| Weight | Lock body: 185 g (6.5 oz) Short front plate: 50 g (1.8 oz) Long front plate: 130 g (4.6 oz) |
| Enclosure Material | Lock body: zinc alloy Front plate/latches: stainless steel |
| Hardware | |
| Holding Force | Lock: 1,200 kg (2,645 lb) |
| Type | Fail secure lock Single door |
| Wiring Connection | Connect the two screw terminals separately to powered lock relay on UA-Hub: NO, COM |
| Current Power | 400mA ±10% |
| Supported Voltage Range | 12V DC |
| Compatibility | Wooden, steel, aluminum door |
| Screw Terminal | + and - |
| Ambient Operating Temperature | -10 to 45° C (14 to 113° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | FCC, IC, CE |
FAQs
Q1: What is the Ubiquiti UA-Lock-Electric used for?
A1: The UA-Lock-Electric is an electric strike lock designed to secure doors while allowing remote or automated access control in professional or residential settings.
Q2: Which doors are compatible with the Ubiquiti UA-Lock-Electric?
A2: It is compatible with standard commercial and residential doors that support electric strike locks, including metal and wooden doors.
Q3: How is the Ubiquiti UA-Lock-Electric installed?
A3: Installation involves fitting the electric strike into the door frame and connecting it to a compatible access control system or power source.
Q4: Can the Ubiquiti UA-Lock-Electric be used with Ubiquiti access systems?
A4: Yes, it is designed to integrate seamlessly with Ubiquiti access control solutions for automated locking and unlocking.
Q5: Is the Ubiquiti UA-Lock-Electric secure?
A5: Yes, the lock provides reliable security while allowing controlled electronic access, ensuring both safety and convenience for users.
