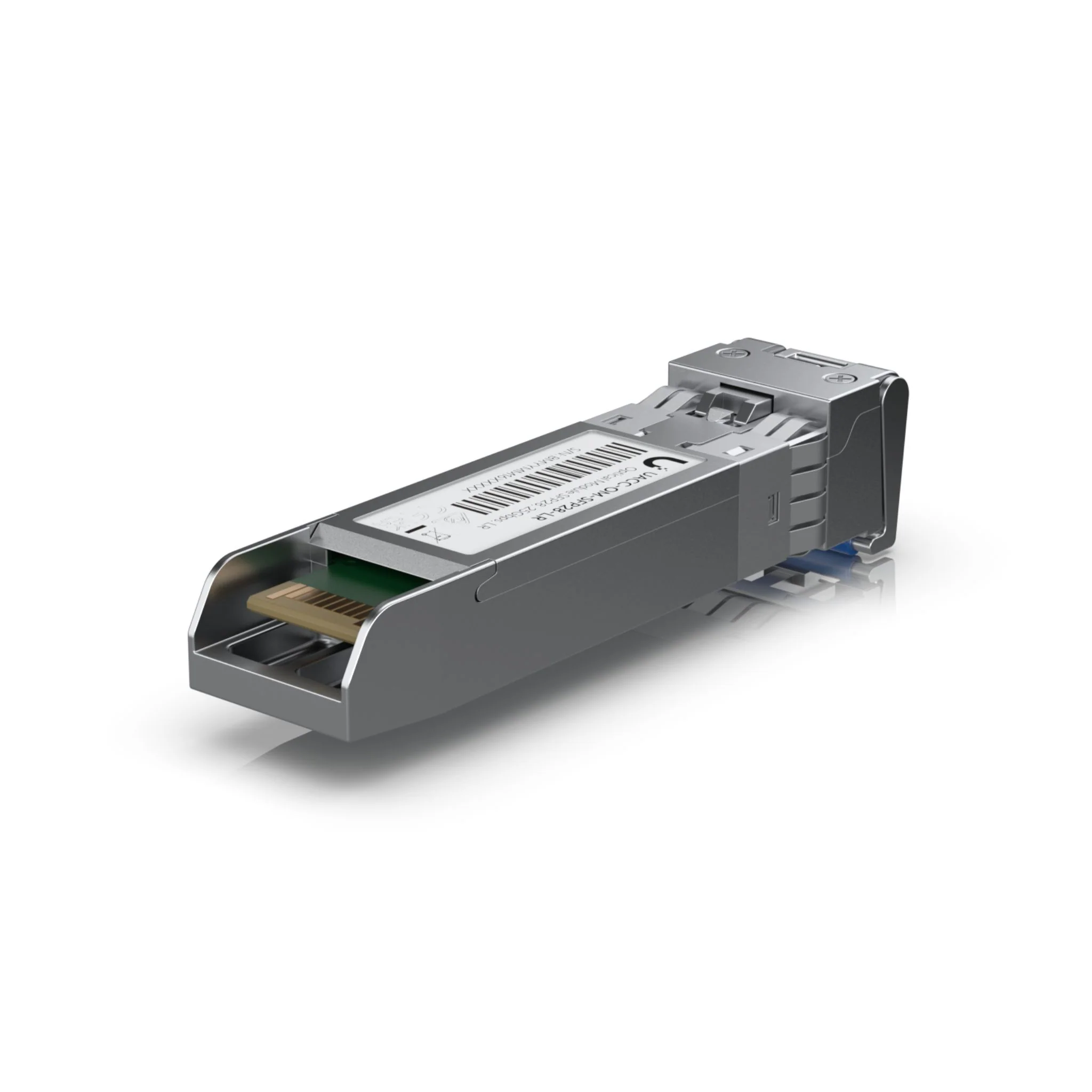

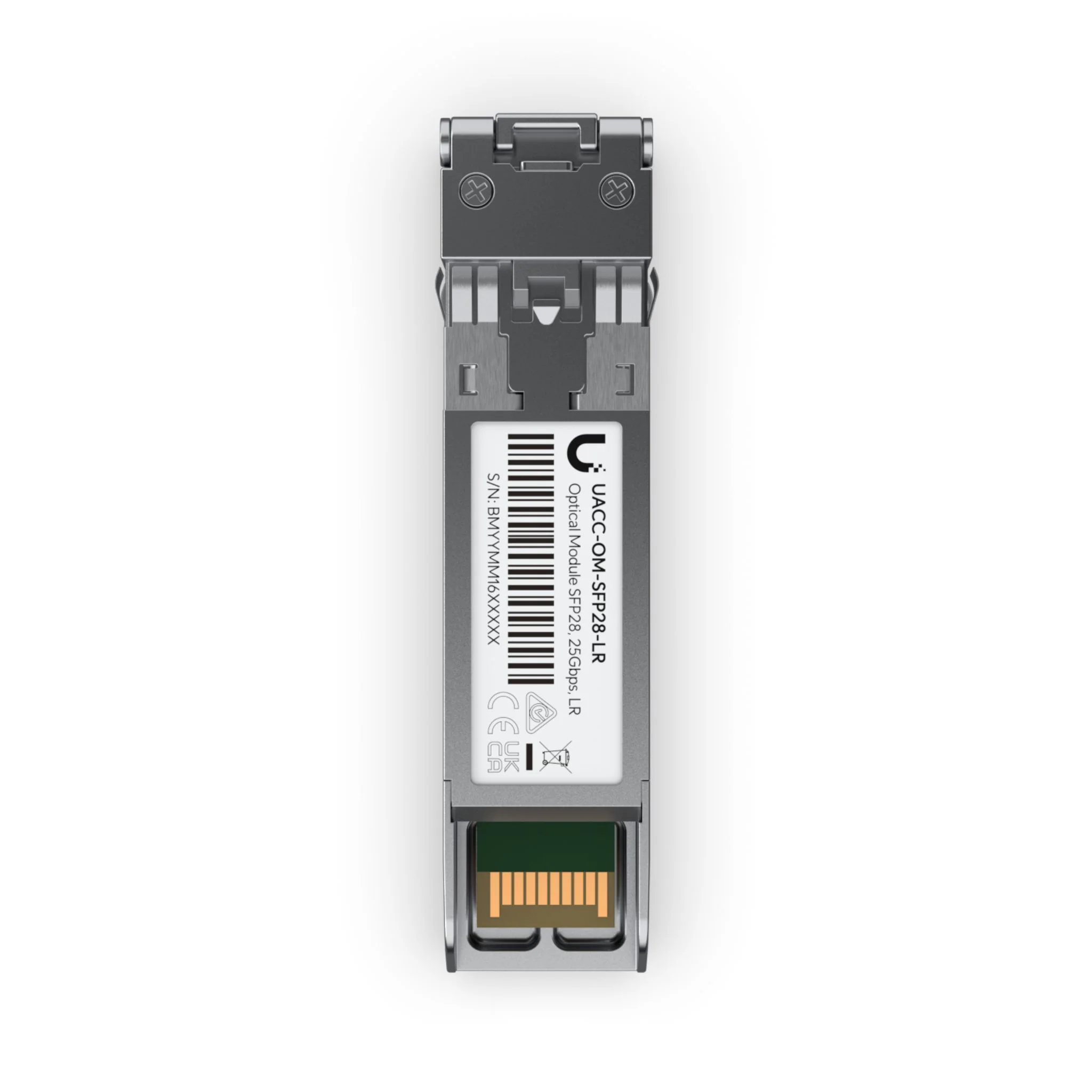

Ubiquiti 25 Gbps Single-Mode Optical Module 10KM

The Ubiquiti 25 Gbps SM Optical Module 10KM provides 25 Gbps throughput and is SFP28-compatible for short-range connections up to 10 km*. *Fiber cable not included.

Tech Specs

Click here for the Ubiquiti 25 Gbps Single-Mode Optical Module 10KM datasheet.

Device Specifications
Overview
Form Factor	SFP
Connector	Duplex LC UPC
Supported Media	Single-Mode Fiber
TX Wavelength	1310 nm
RX Wavelength	1310 nm
Supported Cable Distance	10 km (6.2 mi)
Max. Power Consumption	1.3 W
Pack Options	Single Unit
Ambient Operating Temperature	0 to 70° C (32 to 158° F)
WARNING	CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
NDAA Compliant	✓



FAQs

Q1: What is the Ubiquiti UACC-OM-SFP28-LR?
A1: The UACC-OM-SFP28-LR is a 25G SFP28 optical transceiver module designed for high-speed data transmission over single-mode fiber. It supports 25G Ethernet connections up to 10 km using a 1310 nm wavelength and a duplex LC UPC connector.

Q2: What is the maximum data rate supported by the UACC-OM-SFP28-LR?
A2: The module supports a maximum data rate of 25 Gbps, making it suitable for high-performance networking applications.

Q3: What type of fiber does the UACC-OM-SFP28-LR use?
A3: The transceiver is designed for use with single-mode fiber (SMF), ensuring long-distance data transmission with minimal signal loss.

Q4: What is the operating temperature range of the UACC-OM-SFP28-LR?
A4: The module operates within a temperature range of 0°C to 70°C (32°F to 158°F), making it suitable for various environmental conditions.

Q5: Is the UACC-OM-SFP28-LR compatible with other devices?
A5: Yes, the UACC-OM-SFP28-LR is compatible with SFP28, SFP+, and SFP interfaces, ensuring versatility in networking setups.
