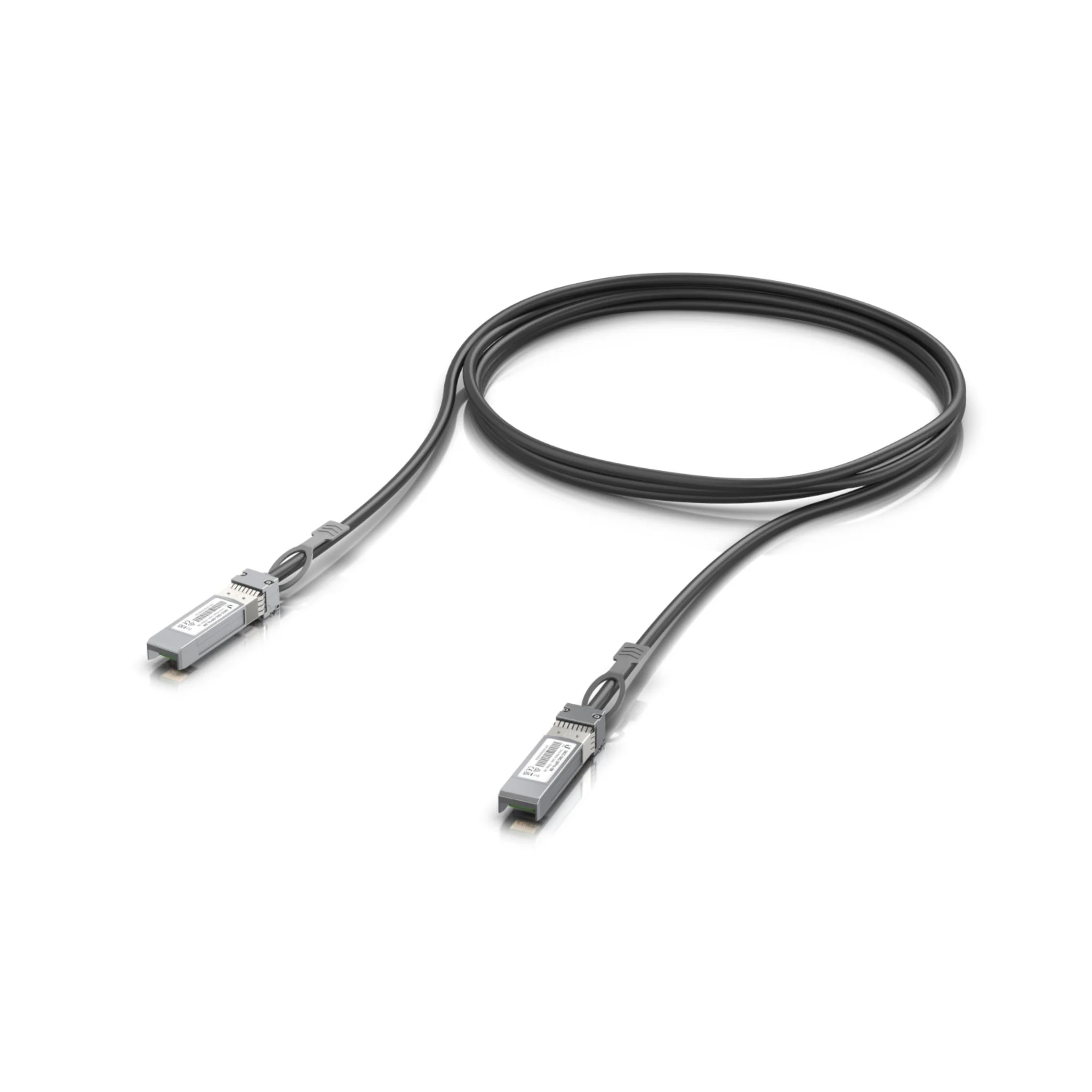

Ubiquiti 10 Gbps SFP+ Direct Attach Cable

This versatile SFP+ direct attach cable comes in a variety of lengths. The product boasts a 10/1 Gbps supported data rate and utilizes an SFP+ to SFP+ connector, with cable lengths ranging from 0.5 to 3 m.

Tech Specs

Device Specifications
Overview
Available Lengths	0.5 / 1 / 3 m (1.6 / 3.3 / 9.8 ft)
Pack Options	Single Unit
Supported Data Rate	10 Gbps
Cable Features	Wire: Copper
Connector Type	SFP+ to SFP+
Jacket Color	Black
Jacket Material	PVC
Jacket Outer Diameter	0.5/1 m: 4.2 mm (0.17") 3 m: 6 mm (0.24")
Bend Radius	0.15 / 1 m: Min. 22 mm (0.87") 3 m: Min. 32 mm (1.26")
Ambient Operating Temperature	0 to 70° C (32 to 158° F)



FAQs

Q. What is the Ubiquiti UACC-DAC-SFP10?
A: The UACC-DAC-SFP10 is a passive copper SFP+ direct attach cable designed for high-speed interconnects between networking devices. It supports data rates up to 10 Gbps and is available in lengths of 0.5, 1, and 3 meters.

Q. What are the key specifications of the UACC-DAC-SFP10?
A:

• Connector Type: SFP+ to SFP+

• Data Rate: 10 Gbps

• Cable Type: Passive copper (Twinax)

• Supported Standards: IEEE 802.3ae, SFF-8431, SFP+ MSA

• Operating Temperature: 0°C to 70°C

• Cable Jacket: PVC, black

• Outer Diameter:

  • 0.5m: 4.2 mm

  • 1m: 4.2 mm

  • 3m: 6.0 mm

• Bend Radius:

  • 0.5m/1m: 22 mm

  • 3m: 32 mm

Q. What are the benefits of using the UACC-DAC-SFP10?
A: The UACC-DAC-SFP10 offers several advantages:

• High-Speed Connectivity: Supports 10 Gbps data rates for fast data transmission.

• Cost-Effective: Provides a budget-friendly solution for short-range interconnects.

• Low Latency: Ideal for applications requiring minimal delay.

• Easy Installation: No need for additional transceivers, simplifying setup.

Q. Where can I use the UACC-DAC-SFP10?
A: This cable is suitable for:

• Data Centers: Connecting servers, switches, and storage devices within racks.

• Network Closets: Establishing high-speed links between networking equipment.

• Enterprise Networks: Facilitating short-range connections in office environments.

Q. Is the UACC-DAC-SFP10 compatible with other brands?
A: While designed for Ubiquiti devices, the UACC-DAC-SFP10 is compatible with other networking equipment that supports SFP+ interfaces and passive copper cables. Always verify compatibility with your specific hardware.
