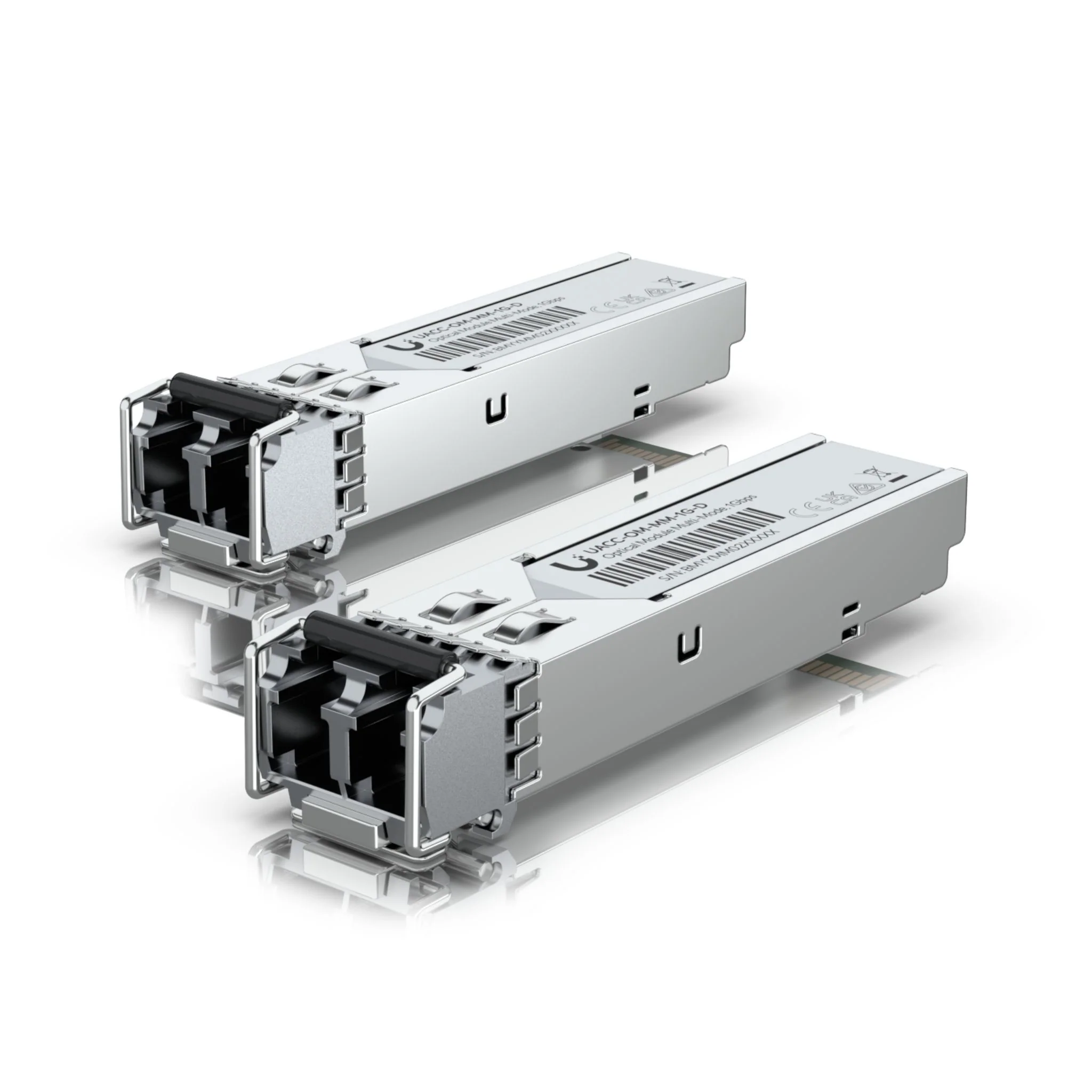

Ubiquiti 1 Gbps Multi-Mode Optical Module 550M
The Ubiquiti 1 Gbps Multi-Mode Optical Module 550M is a fibre transceiver module with a throughput of 1.25 Gbps and a Duplex LC connector. It supports connections up to 550 m, though a fibre cable must be purchased separately.
Tech Specs
Click here for the Ubiquiti 1 Gbps Multi-Mode Optical Module 550M datasheet.
| Device Specifications | |
|---|---|
| Overview | |
| Form Factor | SFP |
| Connector | Duplex LC UPC |
| Supported Media | Multi-Mode Fiber |
| TX Wavelength | 850 nm |
| RX Wavelength | 850 nm |
| Supported Cable Distance | 550 m (1,804 ft) |
| Max. Power Consumption | 0.66 W |
| Pack Options | Single Unit 2-Pack 20-Pack |
| Ambient Operating Temperature | 0 to 70° C (32 to 158° F) |
| Warning | CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 Do not look into the ends of the fiber optic cable or SFP module while converters are powered. |
| NDAA Compliant | ✓ |
FAQs
Q. What is the Ubiquiti UACC-OM-MM-1G-D?
A: The UACC-OM-MM-1G-D is a 1G SFP (Small Form-factor Pluggable) optical transceiver module designed for multi-mode fiber (MMF) connections. It supports 1.25 Gbps speeds over distances up to 550 meters using an 850 nm wavelength and a duplex LC UPC connector.
Q. What are the key specifications of the UACC-OM-MM-1G-D?
A:
-
Form Factor: SFP
-
Connector: Duplex LC UPC
-
Supported Media: Multi-Mode Fiber
-
TX Wavelength: 850 nm
-
RX Wavelength: 850 nm
-
Supported Cable Distance: Up to 550 m (1,804 ft)
-
Max. Power Consumption: 0.66 W
-
Ambient Operating Temperature: 0 to 70°C (32 to 158°F)
-
Compliance: NDAA Compliant
-
Laser Class: Class 1 Laser Product, IEC/EN 60825-1:2014
Q. What is the maximum data rate supported by the UACC-OM-MM-1G-D?
A: The UACC-OM-MM-1G-D supports a maximum data rate of 1.25 Gbps.
Q. What is the maximum cable distance supported by the UACC-OM-MM-1G-D?
A: The module supports multi-mode fiber connections up to 550 meters (1,804 feet).
Q. What type of connector does the UACC-OM-MM-1G-D use?
A: The module uses a duplex LC UPC connector.
Q. What wavelength does the UACC-OM-MM-1G-D operate at?
A: The module operates at an 850 nm wavelength for both transmission and reception.
Q. What is the power consumption of the UACC-OM-MM-1G-D?
A: The maximum power consumption is 0.66 watts.
Q. What is the operating temperature range of the UACC-OM-MM-1G-D?
A: The module operates within an ambient temperature range of 0 to 70°C (32 to 158°F).
Q. Is the UACC-OM-MM-1G-D compliant with industry standards?
A: Yes, the module is NDAA compliant and adheres to Class 1 laser safety standards (IEC/EN 60825-1:2014).
Q. What applications is the UACC-OM-MM-1G-D suitable for?
A: The module is ideal for Gigabit Ethernet (1.25 Gbps) and 1G Fiber Channel (1.0625 Gbps) applications over multi-mode fiber connections.
