Teltonika TSW101
The TSW101 is an easy-to-use switch designed for use in vehicles. With its five Gigabit Ethernet ports, including four with PoE+ capability, the TSW101 can provide power to your devices and connect them to the internet. This automotive switch can be powered by either a 12 V or 24 V car battery, eliminating the need for an additional power supply.
Tech Specs
Click here for the Teltonika TSW101 datasheet.
| Device Specifications | |
|---|---|
| Industrial Protocols | |
| Profinet | Profinet Class A conformance (available with optional order code) |
| Ethernet | |

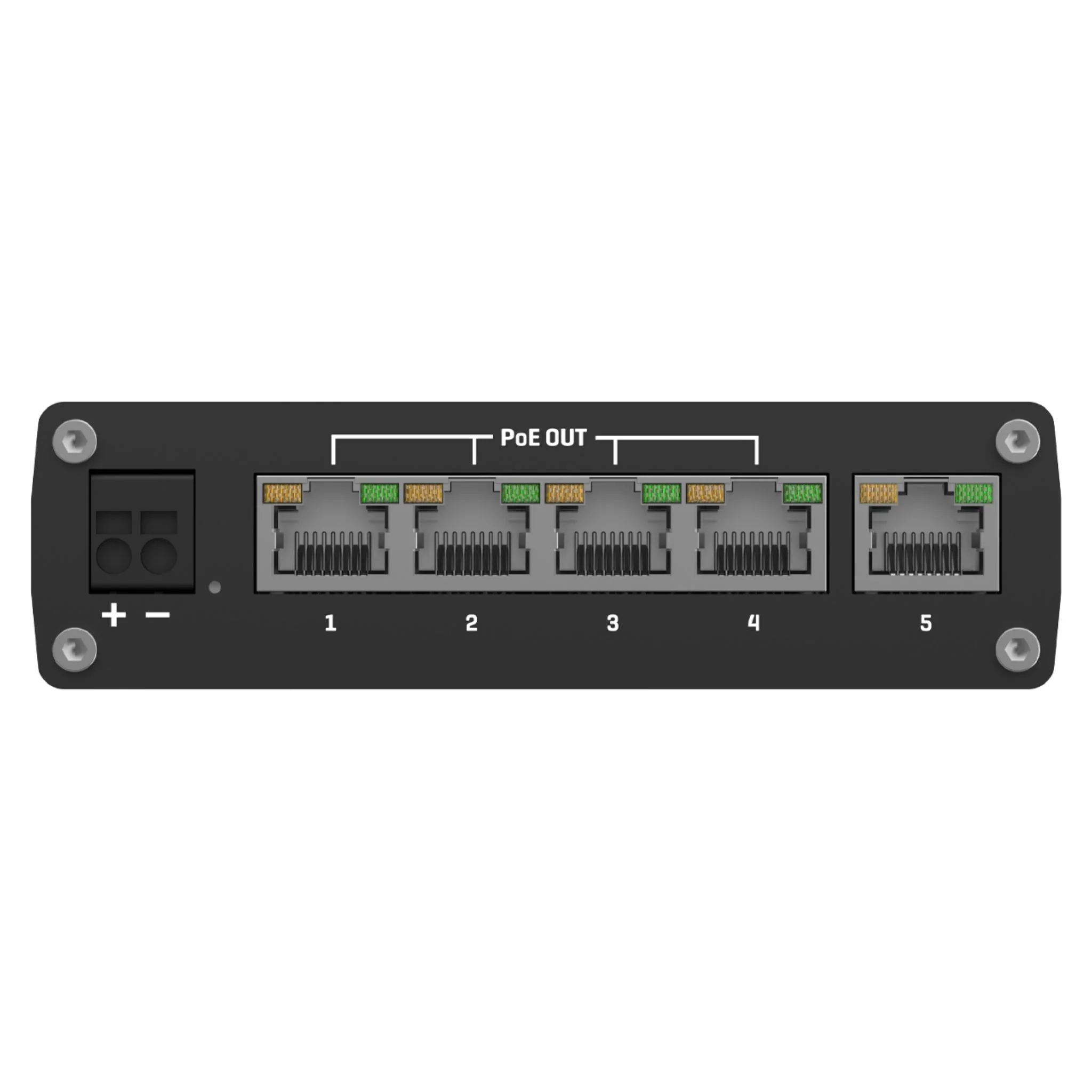

| Ports | 5 x ETH ports, 10/100/1000 Mbps Supports auto MDI/MDIX crossover |
| IEEE 802.3 standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| PoE Out | |
| PoE+ ports | Ports 1 – 4 |
| PoE standards | IEEE 802.3af (PoE, Type 1) IEEE 802.3at (PoE+, Type 2) Alternative A |
| Max PoE power per port (PSE) | 30 W |
| Total PoE power budget (PSE) | 60 W |
| Maximum cable length | 100 m |
| Power | |
| Connector | 2-pin industrial DC power socket |
| Input voltage range | 9 – 30 VDC |
| PoE-out input voltage range | 9 – 30 VDC |
| Power consumption | Idle: 0.64 W Max: 2.31 W PoE Max: 62.3 W |
| PSU | 12 V or 24 V car battery-powered No additional PSU required |
| Physical Interfaces | |
| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| Status LEDs | 1 x Power LED 10 x ETH status LEDs |
| Power | 1 x 2-pin industrial DC power socket |
| Other | 1 x Grounding screw |
| Physical Specification | |
| Casing material | Aluminium housing |
| Dimensions (W × H × D) | 115 x 32 x 95 mm |
| Weight | 384 g |
| Mounting options | DIN rail, wall mount, flat surface (additional kit required) |
| Operating Environment | |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress protection rating | IP30 |
| Regulatory & Type Approvals | |
| Regulatory | CE, REACH, RoHS, WEEE TSW101 CE, UKCA, FCC, IC, CB, RCM E-Mark |
| EMC Emissions & Immunity | |
| Standards | EN 55032:2015 + A11:2020 + A1:2020 EN 55035:2017 + A11:2020 |
| Immunity | ESD: EN 61000-4-2:2009 Radiated: EN IEC 61000-4-3:2020 EFT: EN 61000-4-4:2012 Surge: EN 61000-4-5:2014 + A1:2017 CS: EN 61000-4-6:2014 |
| Safety | |
| Standards | CE: EN IEC 62368-1:2020 + A11:2020 EN IEC 62311:2020 EN 50665:2017 RCM: AS/NZS 62368.1:2022 CB: IEC 62368-1:2018 |
| Performance Specifications | |
| Bandwidth (non-blocking) | 10 Gbps |
| Packet buffer | 128 KB |
| MAC address table | 2K entries |
| Jumbo frame support | 9216 bytes |
FAQs
Q1: What is the Teltonika TSW101 used for?
A: The TSW101 is an unmanaged Gigabit Ethernet switch designed to expand wired network connectivity by providing multiple high-speed Ethernet ports in industrial, IoT, or office environments.
Q2: How many and what type of network ports does the TSW101 have?
A: It includes 5 × 10/100/1000 Mbps RJ45 Ethernet ports, offering full Gigabit connectivity to multiple network devices with auto-MDI/MDIX for plug-and-play installation.
Q3: Does the TSW101 support Power over Ethernet (PoE)?
A: The TSW101 itself does not provide PoE power output. Devices requiring PoE must be powered through an upstream PoE injector or PoE-capable switch.
Q4: What are the mechanical and environmental specifications of the TSW101?
A: The switch is housed in a rugged metal enclosure designed for DIN-rail mounting. It supports wide operating temperatures from -40 °C to +75 °C, making it suitable for harsh environments, industrial cabinets, or outdoor-adjacent enclosures.
Q5: What deployment scenarios is the TSW101 best suited for?
A: It’s ideal for expanding networks in industrial automation, sensor networks, small office deployments, surveillance systems, or any application needing reliable Gigabit port density with simple, unmanaged operation.
