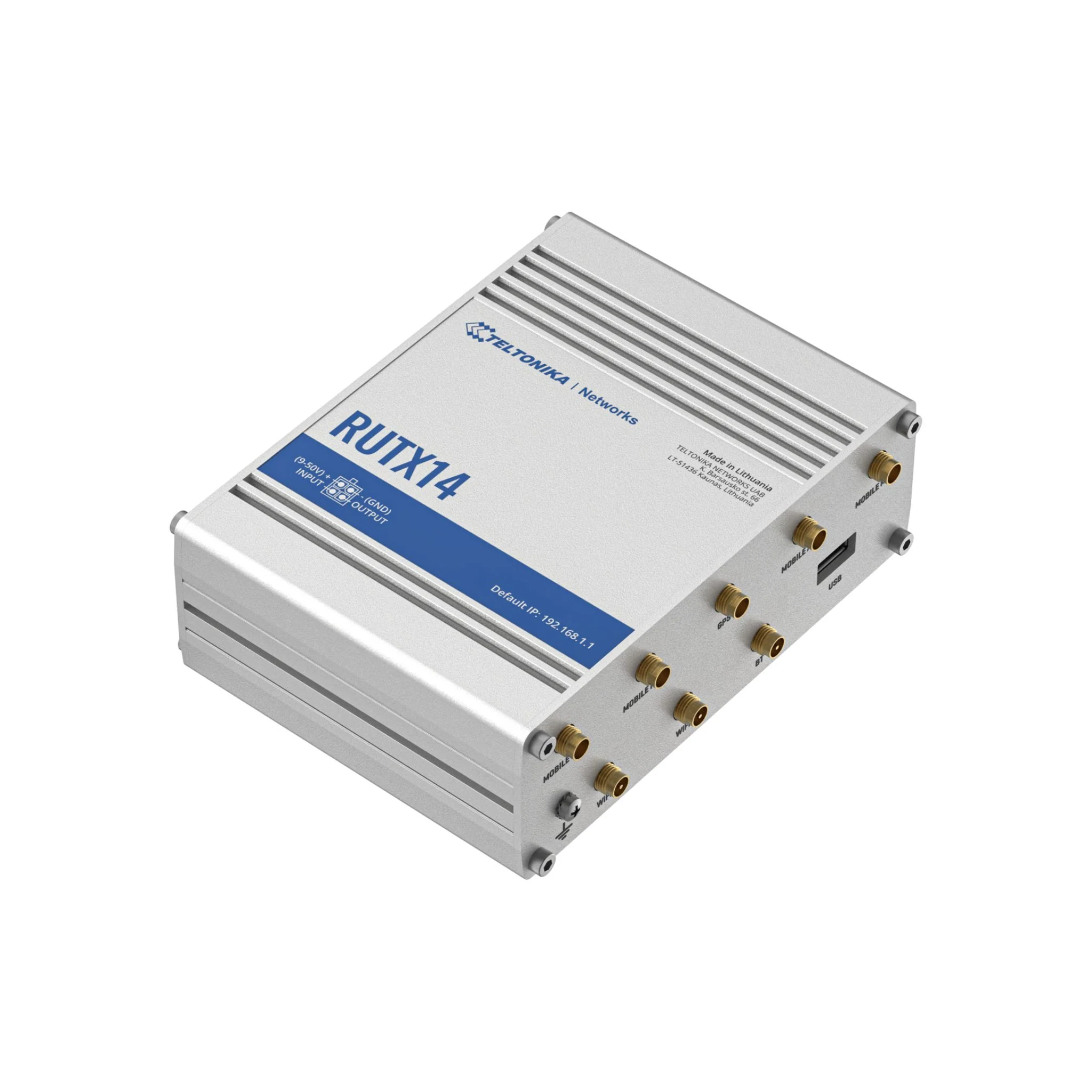

Teltonika RUTX14

The Teltonika RUTX14 stands out as the quickest single modem LTE-A Cat 12 router in its product line, featuring Wave-2 dual-band Wi-Fi, five Gigabit Ethernet ports, and automatic failover with two SIM cards. This exceptional device boasts unbeatable network resilience and impressive speeds, making it the ideal solution for high compatibility. Not to mention, its advanced features include incredible download speeds of up to 600 Mbps and upload speeds of up to 150 Mbps with 4G LTE CAT12, DUAL SIM with auto failover and switching scenarios, and Wave-2 802.11ac Dual Band Wi-Fi and Bluetooth LE. Furthermore, the router supports up to 128 port/tag-based VLANs.

Tech Specs

Click here for the Teltonika RUTX14 datasheet.

Device Specifications
Mobile
Mobile Module	4G LTE Cat 12 up to 600 DL / 150 UL Mbps; 3G up to 42 DL / 11.2 UL Mbps
3GPP Release	Release 12
SIM Switch	2 SIM cards, auto-switch for weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status	IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC
SMS	SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD	Supports sending and reading Unstructured Supplementary Service Data messages
Block / Allow List	Operator block/allow list (by country or separate operators)
Multiple PDN	Use different PDNs for multiple network access and services
Band Management	Band lock, Used band status display
SIM Idle Protection	Router periodically switches to unused SIM card to prevent SIM from being blocked
SIM PIN Management	Enable setting, changing, or disabling the SIM card's PIN
APN	Auto APN
Bridge	Direct connection (bridge) between mobile ISP and device on LAN
Passthrough	Router assigns its mobile WAN IP address to another device on LAN
Wireless
Wireless Mode	802.11b/g/n/ac Wave 2 (Wi-Fi 5), up to 867 Mbps, Dual Band, MU-MIMO, 802.11r fast transition, AP/STA
Wi-Fi Security	WPA2/WPA3 (Enterprise & PSK), OWE, AES-CCMP, TKIP, Auto-cipher, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w PMF
SSID / ESSID	Stealth mode, access control by MAC address
Wi-Fi Users	Up to 150 simultaneous connections
Connectivity Features	Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
MAC Filter	Allowlist, blocklist
QR Code	Scan to automatically join network
TravelMate	Forward Wi-Fi hotspot landing page to subsequent connected device
Bluetooth	Bluetooth 4.0, Low Energy (LE)
Ethernet
WAN	1 x WAN port, 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX
LAN	4 x LAN ports, 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX

Device Specifications
Mobile
Mobile Module	4G LTE Cat 12 up to 600 DL / 150 UL Mbps; 3G up to 42 DL / 11.2 UL Mbps
3GPP Release	Release 12
SIM Switch	2 SIM cards, auto-switch for weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status	IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC
SMS	SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD	Supports sending and reading Unstructured Supplementary Service Data messages
Block / Allow List	Operator block/allow list (by country or separate operators)
Multiple PDN	Use different PDNs for multiple network access and services
Band Management	Band lock, Used band status display
SIM Idle Protection	Router periodically switches to unused SIM card to prevent SIM from being blocked
SIM PIN Management	Enable setting, changing, or disabling the SIM card's PIN
APN	Auto APN
Bridge	Direct connection (bridge) between mobile ISP and device on LAN
Passthrough	Router assigns its mobile WAN IP address to another device on LAN
Wireless
Wireless Mode	802.11b/g/n/ac Wave 2 (Wi-Fi 5), up to 867 Mbps, Dual Band, MU-MIMO, 802.11r fast transition, AP/STA
Wi-Fi Security	WPA2/WPA3 (Enterprise & PSK), OWE, AES-CCMP, TKIP, Auto-cipher, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w PMF
SSID / ESSID	Stealth mode, access control by MAC address
Wi-Fi Users	Up to 150 simultaneous connections
Connectivity Features	Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
MAC Filter	Allowlist, blocklist
QR Code	Scan to automatically join network
TravelMate	Forward Wi-Fi hotspot landing page to subsequent connected device
Bluetooth	Bluetooth 4.0, Low Energy (LE)
Ethernet
WAN	1 x WAN port, 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX
LAN	4 x LAN ports, 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX
Network
Routing	Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network Protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN
VoIP Passthrough	H.323 and SIP-ALG protocol NAT helpers
Connection Monitoring	Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall	Port forward, traffic rules, custom rules, TTL target customisation
Firewall Status	View all Firewall statistics, rules, and counters
Port Management	View ports, enable/disable, auto-configuration, transmission speed change
Network Topology	Visual representation of connected devices
Hotspot	Captive portal, internal/external Radius server, MAC/SMS authentication, SSO, landing page, walled garden, user scripts, URL parameters, user groups, 9 customisable themes
DHCP	Static/dynamic allocation, relay, server config, static leases, MAC wildcards
QoS / SQM	Traffic priority by source/destination, service, protocol or port, WMM, 802.11e
DDNS	Supported >77 service providers, manual configuration possible
DNS over HTTPS	Secure DNS resolution over HTTPS
Network Backup	Wi-Fi WAN, Mobile, VRRP, Wired automatic failover
Load Balancing	Balance Internet traffic over multiple WAN connections
SSHFS	Mount remote file system via SSH
VRF Support	Initial virtual routing and forwarding support
Security
802.1x	Port-based network access control client
Authentication	Pre-shared key, digital certificates, X.509, TACACS+, Internal & External RADIUS, IP/login block, time-based blocking, random password generator
Firewall	Preconfigured rules via WebUI, unlimited via CLI, DMZ, NAT, NAT-T, NAT64
Attack Prevention	DDOS, port scan, SSH, HTTP/HTTPS attack prevention
VLAN	Port and tag-based VLAN separation
Mobile Quota Control	Data limit, customizable period/start/warning, phone number
WEB Filter	Block list, allow list
Access Control	Flexible access for SSH, Web, CLI, Telnet
Certificate Manager	Create CA, server, client, Let's Encrypt, SCEP certificates
VPN
OpenVPN	Multiple clients and server simultaneously, 27 encryption methods
OpenVPN Encryption	DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC, AES-128-CFB, AES-128-CFB1, AES-128-CFB8, AES-128-OFB, AES-128-GCM, AES-192-CBC, AES-192-CFB, AES-192-CFB1, AES-192-CFB8, AES-192-OFB, AES-192-GCM, AES-256-CBC, AES-256-CFB, AES-256-CFB1, AES-256-CFB8, AES-256-OFB, AES-256-GCM
IPsec	XFRM, IKEv1, IKEv2, 14 encryption methods including AES & 3DES
GRE	GRE tunnel, GRE tunnel over IPsec support
PPTP / L2TP	Client/Server instances simultaneously, L2TPv3, L2TP over IPsec
Stunnel	TLS encryption proxy for clients and servers without code changes
DMVPN	Scalable IPsec VPNs, Phase 2/3, Dual Hub support
SSTP	SSTP client instance support
ZeroTier	VPN client support
WireGuard	VPN client and server support
Tinc	Encryption, authentication, compression in tunnels; client & server support
Tailscale	Encrypted point-to-point VPN connections using WireGuard
IoT & Gateway
OPC UA	Client and Server modes, TCP connection
MQTT Gateway	MODBUS Server communication through MQTT broker
MODBUS	Server and Client, TCP & USB, supports custom registers, multiple data formats (INT, UINT, float, HEX, ASCII)
Data to Server	HTTP(S), MQTT, Azure MQTT, custom LUA scripts to aggregate multiple sources
DNP3	Station and Outstation, TCP & USB connection
DLMS/COSEM	Client, TCP & USB connection, utility meter data exchange
API	Teltonika Networks Web API (beta) for data retrieval & control
Monitoring & Management
WEB UI	HTTP/HTTPS, status, config, FW update, CLI, troubleshooting, logs, Internet status
FOTA	Firmware update from server, automatic notification
SSH	SSH v1 & v2
SMS	Status, configuration
Call	Reboot, Status, Mobile on/off, Output on/off, answer/hang-up, Wi-Fi on/off
TR-069	OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT	MQTT Broker & publisher
SNMP	v1, v2, v3, SNMP Trap, Brute force protection
JSON-RPC	Management API over HTTP/HTTPS
RMS	Teltonika Remote Management System
IoT Platforms	ThingWorx, Cumulocity, Azure IoT Hub, AWS IoT Core monitoring and device management support
System Characteristics
CPU	Quad-core ARM Cortex A7, 717 MHz
RAM	256 MB, DDR3
FLASH Storage	256 MB, SPI Flash
Firmware / Configuration
WEB UI	Update FW from file, check FW on server, configuration profiles, backup
FOTA	Firmware update
RMS	Update FW/configuration for multiple devices
Keep Settings	Update FW without losing configuration
Factory Reset	Restore all settings including IP, PIN, and user data to default
Firmware Customisation	RutOS (OpenWrt), SDK tools, GPL customization, Package Manager support
Location Tracking
GNSS	GPS, GLONASS, BeiDou, Galileo, QZSS
Coordinates	WebUI, SMS, TAVL, RMS
NMEA	NMEA 0183
NTRIP	Networked Transport of RTCM via Internet Protocol
Geofencing	Configurable multiple geofence zones
USB
Data Rate	USB 2.0
Applications	Samba share, USB-to-serial
External Devices	HDD, flash drive, modem, printer, USB-serial adapter
Storage Formats	FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4
Input / Output
Input	1 x Digital Input, 0–6 V logic low, 8–30 V logic high
Output	1 x Digital Output, Open collector, max 30 V, 300 mA
Events	Email, RMS, SMS
I/O Juggler	Set I/O conditions to trigger events
Power
Connector	4-pin industrial DC power socket
Input Voltage Range	9–50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (Passive)	LAN1 port, Mode B, 9–50 VDC, not compatible with IEEE802.3af/at/bt
Power Consumption	Idle: < 4 W, Max: < 22 W
Physical Interfaces
Ethernet	5 x RJ45, 10/100/1000 Mbps
I/O’s	1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs	2 x connection, 3 x signal strength, 10 x Ethernet, 4 x WAN, 1 x Power, 2 x 2.4G Wi-Fi, 2 x 5G Wi-Fi
SIM	2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, external holders

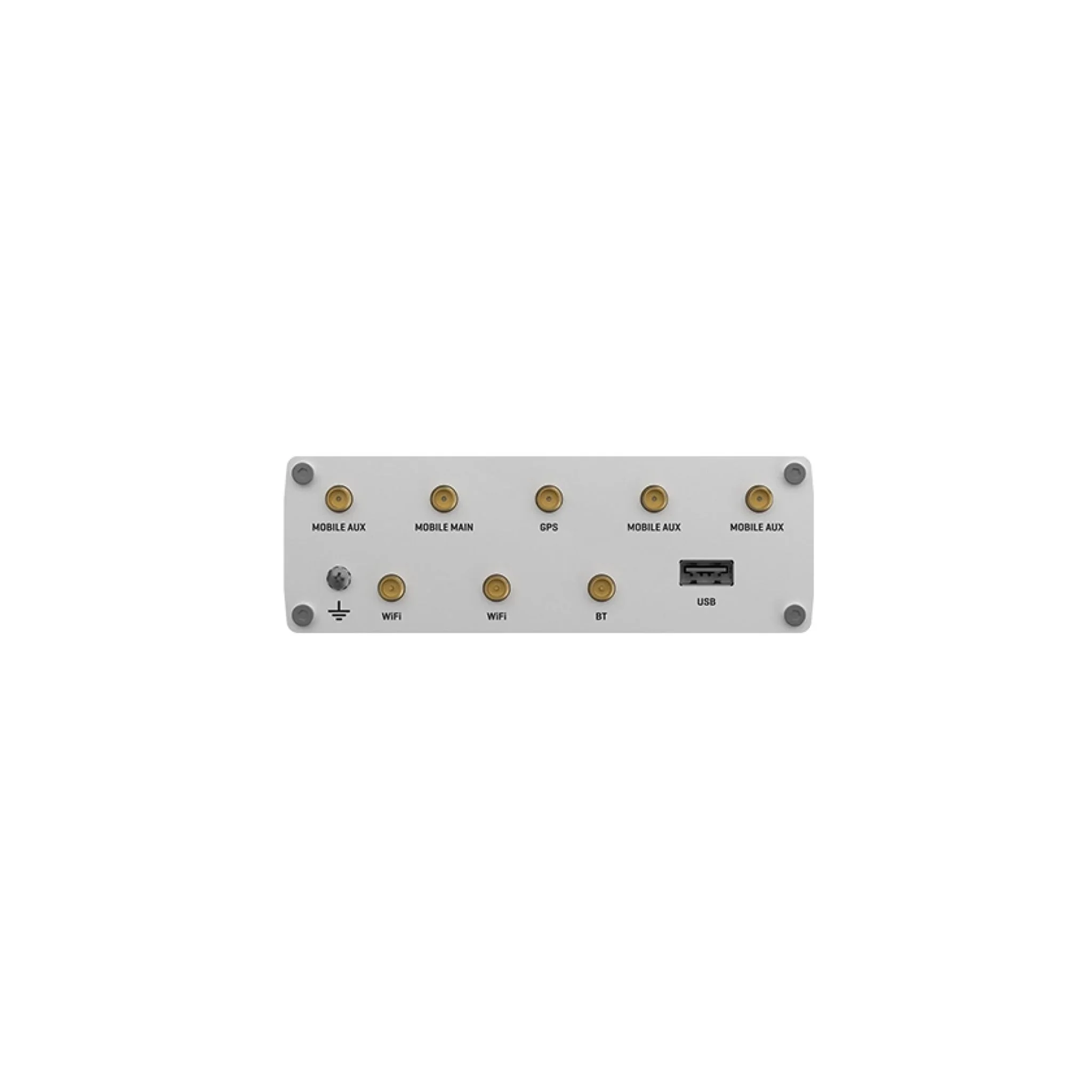

Antennas	4 x SMA LTE, 2 x RP-SMA Wi-Fi, 1 x RP-SMA Bluetooth, 1 x SMA GNSS
USB	1 x USB-A port for external devices
Reset	Reboot/User default/Factory reset button
Other	1 x Grounding screw
Physical Specification
Casing Material	Full aluminium housing
Dimensions (W x H x D)	132 x 44 x 95 mm
Weight	515 g
Mounting Options	DIN rail, wall mount, flat surface (additional kit required)
Operating Environment
Operating Temperature	-40 °C to 75 °C
Operating Humidity	10% to 90% non-condensing
Ingress Protection Rating	IP30
Regulatory & Type Approvals
Regulatory	CE, UKCA, RCM, UCRF, CITC, Kenya, ICASA, ANRT, NTC, SIRIM, GCF, CB, RoHS, REACH
EMC Emissions & Immunity	EN 55032, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 301 489 series, ESD EN 61000-4-2, Radiated immunity EN IEC 61000-4-3, EFT EN 61000-4-4, Surge EN 61000-4-5, CS EN 61000-4-6, DIP EN IEC 61000-4-11
RF	EN 300 328, EN 301 893, EN 300 440, EN 301 908-1/2/13, EN 303 413
Safety Standards	CE EN 62368-1, EN 62232, EN 50385, UL/CSA UL 62368-1, CAN/CSA C22.2 No. 62368-1, CB IEC 62368-1



FAQs

Q1: What is the Teltonika RUTX14 and what is it used for?
A: The Teltonika RUTX14 is an industrial Wi‑Fi 6 access point designed to deliver high‑speed wireless coverage and support a large number of connected devices. It is ideal for enterprise networks, industrial environments, and large‑area deployments requiring robust wireless connectivity.

Q2: What Wi‑Fi standards and bands does the Teltonika RUTX14 support?
A: The RUTX14 supports dual‑band Wi‑Fi 6 (802.11ax), offering enhanced speeds, capacity, and efficiency over traditional Wi‑Fi standards for modern, dense wireless environments.

Q3: What network interfaces are available on the Teltonika RUTX14?
A: This access point includes Gigabit Ethernet ports with Power‑over‑Ethernet (PoE) support, enabling both network connectivity and power over a single cable for flexible installation.

Q4: What performance features does the Teltonika RUTX14 offer?
A: The RUTX14 delivers high‑throughput wireless performance, MU‑MIMO support, and advanced channel management for efficient spectrum use, making it suitable for high‑density client environments.

Q5: What physical and environmental features make the Teltonika RUTX14 suitable for industrial use?
A: The access point has a rugged design, flexible mounting options such as wall or ceiling mounts, and LED status indicators that simplify installation and monitoring, ensuring reliable performance in demanding enterprise and industrial environments.
