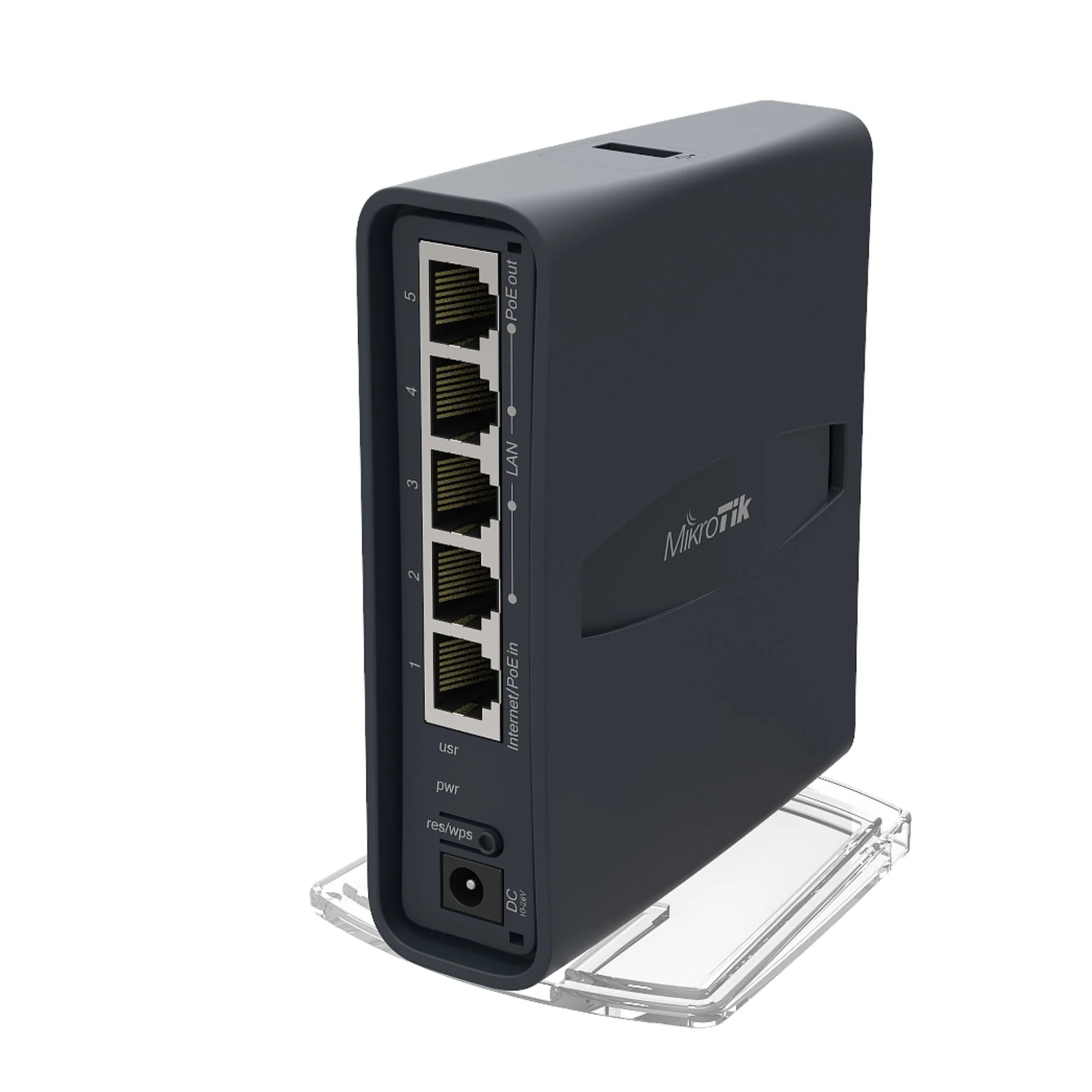

MikroTik RouterBOARD hAP AC Lite RB952UI-5AC2ND with Tower Case
The MikroTik RouterBOARD hAP AC Lite RB952UI-5AC2ND is a compact and versatile router with 5 Ethernet ports and built-in 802.11ac Dual-Band wireless. Equipped with a 600MHz CPU, 64MB RAM, and a USB port, this preconfigured device is ideal for hard-to-reach locations. Includes a Level 4 License for access to features like dynamic routing, hotspot, and MPLS. Tower Case enclosure offers easy installation options and versatile power capabilities.
Tech Specs
Click here for the RB952UI-5AC2ND datasheet.
| Device Specifications | |
|---|---|
| Product code | RB952Ui-5ac2nD-TC |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Switch chip model | QCA9531 |
| Dimensions | 34 x 119 x 98 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25°C |
| Tested ambient temperature | -30°C to 70°C |
| Suggested price | $59.00 |
| Wireless Capabilities | |
| 2.4 GHz Max data rate | 300 Mbit/s |
| 2.4 GHz number of chains | 2 |
| 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi (2.4 GHz) | 1.5 |
| 2.4 GHz chip model | QCA9531 |
| 2.4 GHz generation | Wi-Fi 4 |
| 5 GHz Max data rate | 433 Mbit/s |
| 5 GHz number of chains | 1 |
| 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi (5 GHz) | 2 |
| 5 GHz chip model | QCA9887 |
| 5 GHz generation | Wi-Fi 5 |
| WiFi speed | AC750 |
| Ethernet | |
| 10/100 Ethernet ports | 5 |
| Peripherals | |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
| Powering | |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 10-28 V |
| Max power consumption | 20 W Without attachments: 8 W |
| PoE in | Passive PoE Input Voltage: 10-28 V |
| Cooling type | Passive |
| PoE-out | |
| PoE-out ports | Ether5 |
| PoE out | Passive PoE |
| Low voltage PoE-Out current limit | 500 mA |
| Max total out (A) | 500 mA |
| Certification & Approvals | |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP20 |
| Wireless Specifications | |
| 2.4 GHz Transmit (dBm) / Receive Sensitivity | 1 MBit/s: 22 / -96 11 MBit/s: 22 / -89 6 MBit/s: 20 / -93 54 MBit/s: 18 / -74 MCS0: 20 / -93 MCS7: 16 / -71 |
| 5 GHz Transmit (dBm) / Receive Sensitivity | 6 MBit/s: 23 / -93 54 MBit/s: 20 / -75 MCS0: 23 / -93 MCS7: 19 / -71 MCS9: 16 / -63 |
FAQs
Q: What is the MikroTik RB952Ui‑5ac2nD used for?
A: The RB952Ui‑5ac2nD is an indoor access point and router designed for homes or small offices. It provides dual‑band Wi‑Fi on 2.4 GHz & 5 GHz and wired network connectivity via five 10/100 Mbps Ethernet ports.
Q: What wireless standards and speeds does the RB952Ui‑5ac2nD support?
A: It supports IEEE 802.11b/g/n on 2.4 GHz (dual‑chain) and 802.11a/n/ac on 5 GHz (single‑chain), achieving up to approximately 300 Mbps on 2.4 GHz and ~433 Mbps on 5 GHz in ideal conditions.
Q: How is the RB952Ui‑5ac2nD powered and what PoE features does it offer?
A: The device supports passive PoE input (10‑28 V DC) via jack or PoE‑in, and offers passive PoE‑out on its fifth Ethernet port, allowing it to power another device (with a maximum load limit of 500 mA).
Q: What are the key hardware and management features of the RB952Ui‑5ac2nD?
A: It includes a 650 MHz CPU, 64 MB RAM, 16 MB flash, five 10/100 Mbps LAN ports, USB‑A port (for 3G/4G modem or other uses), a sleek desktop/tower case, and ships with RouterOS license Level 4 for advanced configuration.
Q: Can the RB952Ui‑5ac2nD be integrated into larger networks and managed centrally?
A: Yes. It supports MikroTik’s CAPsMAN or standard RouterOS management, enabling centralised configuration, monitoring and integration into broader Wi‑Fi infrastructures for offices or managed networks.
