MikroTik netPower16P CRS318-16P-2S+OUT Gigabit PoE Router Switch

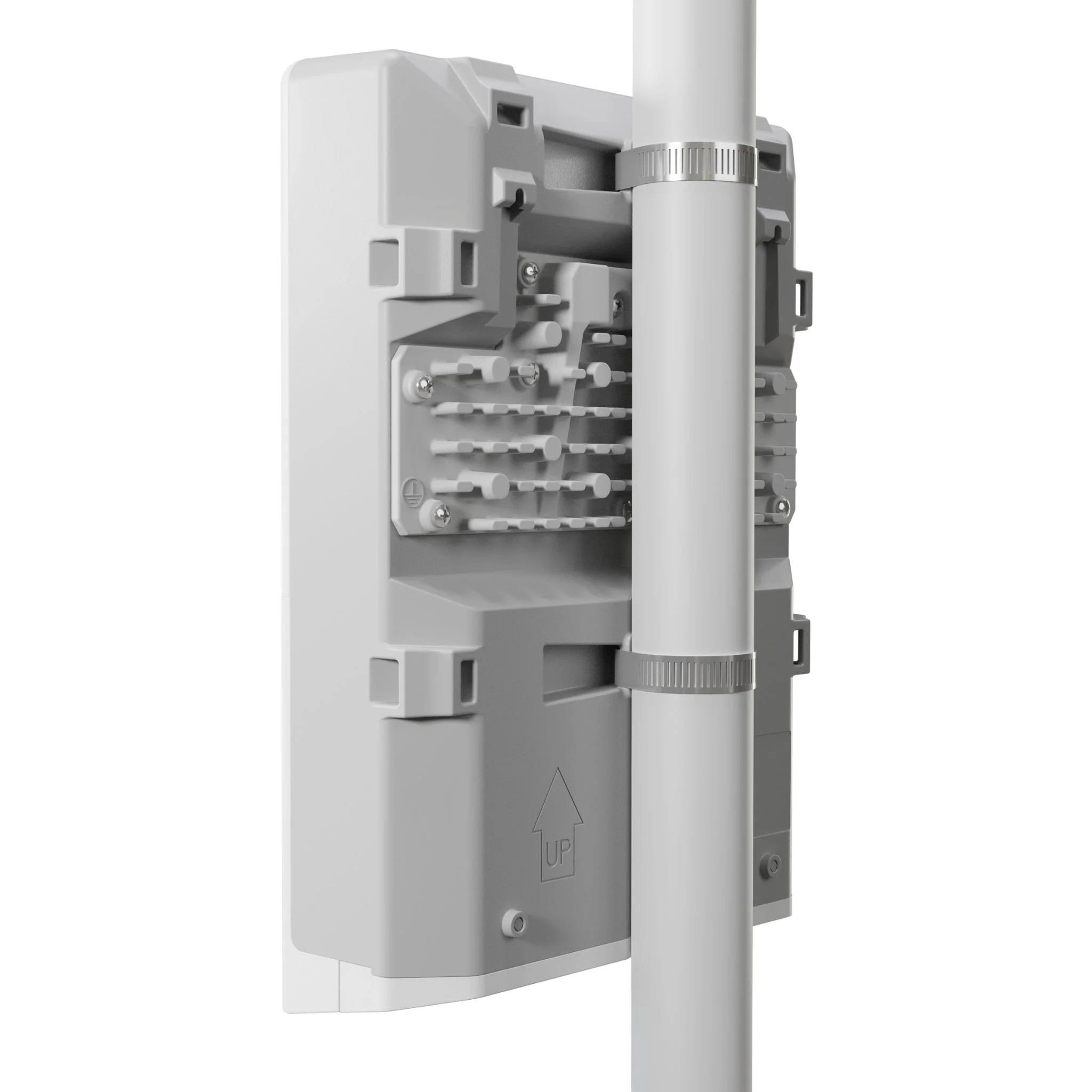

The MikroTik netPower16P is a reliable 18-port outdoor switch with 16 PoE-enabled Gigabit Ethernet ports and 2 SFP+ power ports for 10G fibre uplinks. Its compact and sturdy outdoor enclosure makes it suitable for various environments, including damp attics, shafts, and poles with hose clamps. This switch has a non-blocking throughput of 36 Gbps, a switching capacity of 72 Gbps, and a forwarding rate of 53.6 Mpps. Please note that this product does not include any power supplies.
Tech Specs
Click here for the CRS318-16P-2S+OUT datasheet.
| Device Specifications | |
|---|---|
| Specifications | |
| Product code | CRS318-16P-2S+OUT |
| Architecture | ARM 32bit |
| CPU | 98DX226S |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| Switch chip model | 98DX226S |
| Dimensions | 303 x 212 x 78 mm |
| RouterOS license | 5 |
| Operating System | RouterOS / SwitchOS |
| Size of RAM | 256 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25°C |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $279.00 |
| Powering | |
| Number of DC inputs | 2 (DC jack) |
| DC jack input Voltage | 18-30 V / 48-57 V |
| Max power consumption | 316 W |
| Max power consumption without attachments | 16 W |
| Cooling type | Passive |
| PoE-out | |
| PoE-out ports | Ether1–Ether16 |
| PoE out | 802.3af/at |
| Low voltage PoE-Out current limit | 1.1 A |
| High voltage PoE-Out current limit | 0.6 A |
| Max total out (A) | 2.8A (18V–30V) & 1.4A (48V–57V) ×2 |
| Ethernet | |
| 10/100/1000 Ethernet ports | 16 |
| Number of 1G Ethernet ports with PoE-out | 16 |
| Fiber | |
| SFP+ ports | 2 |
| Other | |
| CPU temperature monitor | Yes |
| Voltage Monitor | Yes |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | IP54 |
FAQs
Q: What is the MikroTik CRS318-16P-2S+OUT?
A: The MikroTik CRS318-16P-2S+OUT is an outdoor-rated 16-port PoE managed switch with 2 SFP+ ports for 10GbE uplinks, designed for reliable network performance in harsh environments.
Q: What types of ports and speeds does the CRS318-16P-2S+OUT support?
A: It offers 16 Gigabit Ethernet ports with full PoE output and 2 SFP+ ports supporting 10GbE, providing high-speed connectivity for devices like access points, cameras, and uplinks.
Q: Can the CRS318-16P-2S+OUT deliver Power over Ethernet?
A: Yes, all 16 Ethernet ports support PoE output, enabling connected devices to receive both power and data over a single cable, simplifying outdoor network installations.
Q: How is the CRS318-16P-2S+OUT powered and installed?
A: The switch is powered via 48–57V DC input and is housed in a weatherproof, IP54-rated case, allowing safe outdoor installation or mounting on walls and poles.
Q: What software and management features does the MikroTik CRS318-16P-2S+OUT provide?
A: It runs RouterOS v7 or SwitchOS, offering VLANs, link aggregation, QoS, firewall filtering, and monitoring tools, giving full control over network performance, PoE management, and security.
Resources
