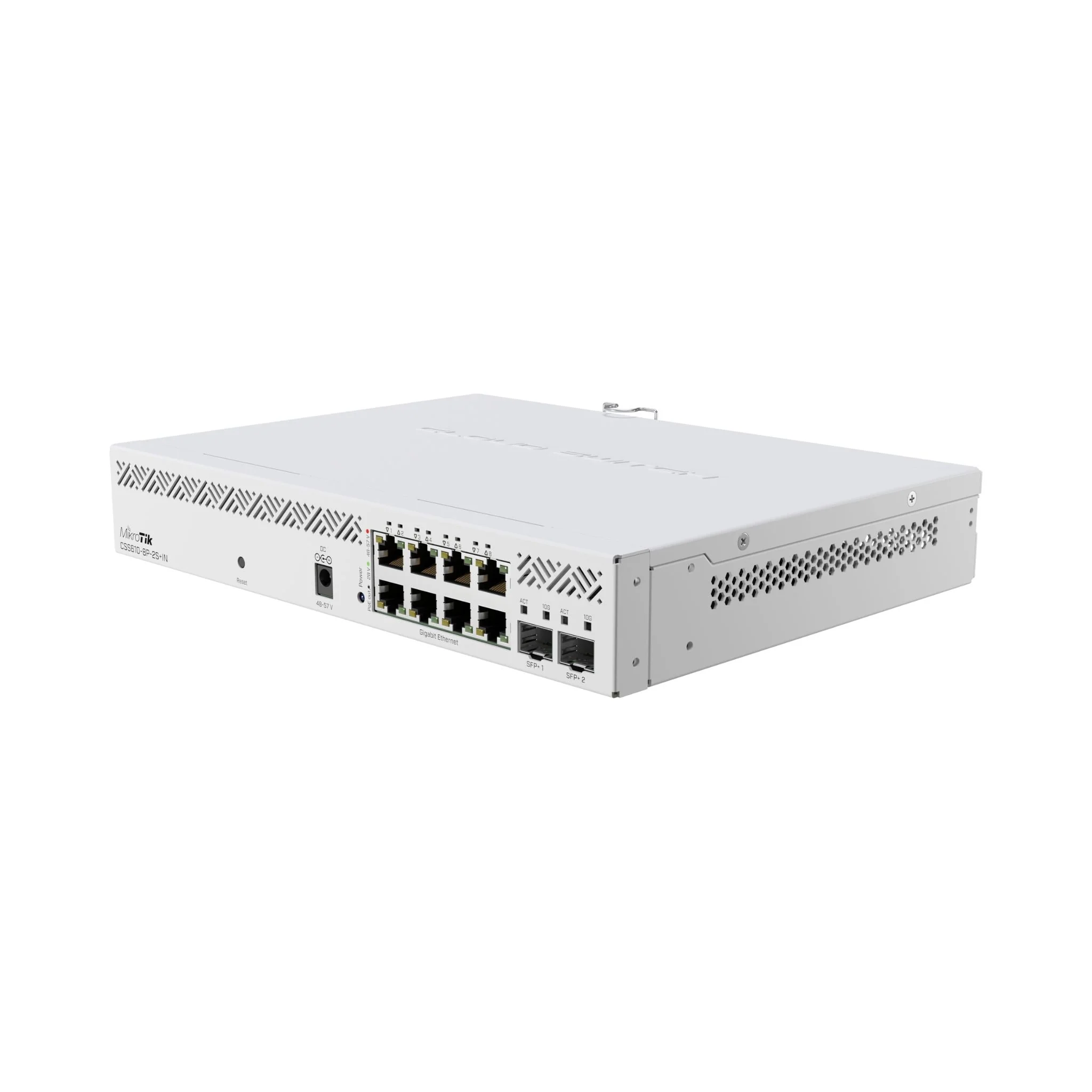

MikroTik CSS610-8P-2S+IN
The CSS610-8P-2S+IN switch is compact and easy to configure, making it perfect for a variety of setups. It has 8 Gigabit Ethernet ports and 2 SFP+ ports for 10 Gigabit fiber connectivity. With a total PoE-out budget of 140W, it offers impressive scalability potential, making it ideal for hotels, call centers, and more. This switch also has the core functionality of a managed switch, such as port-to-port forwarding, VLANs, and bandwidth limitations.
Tech Specs
Click here for the CSS610-8P-2S+IN datasheet.
| Device Specifications | |
|---|---|
| Specifications | |
| Product code | CSS610-8P-2S+IN |
| Switch chip model | 88E6193X |
| Dimensions | 272 x 208 x 44 mm |
| Operating System | SwitchOS Lite |
| Storage size | 64 KB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $229.00 |
| Powering | |
| Number of AC inputs | 1 |
| AC input range | 100-240 V |
| Number of DC inputs | 1 (DC jack) |
| DC jack input Voltage | 48-57 V |
| Number of PSU slots | 1 |
| Frequency (Hz) | 50-60 |
| Max power consumption | 162 W |
| Max power consumption without attachments | 12 W |
| Cooling type | Passive |
| PoE-out | |
| PoE-out ports | Ether1-Ether8 |
| PoE out | 802.3af/at |
| Low voltage PoE-Out current limit | 1000 mA |
| High voltage PoE-Out current limit | 625 mA |
| Total output power | 140 W |
| Ethernet | |
| 10/100/1000 Ethernet ports | 8 |
| Number of 1G Ethernet ports with PoE-out | 8 |
| Fiber | |
| SFP+ ports | 2 |
| Other | |
| CPU temperature monitor | Yes |
| Voltage Monitor | Yes |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | 20 |
FAQs
Q: What is the MikroTik CSS610‑8P‑2S+IN used for?
A: The CSS610‑8P‑2S+IN is a compact smart switch designed for small offices, hotel floors, retail networks or VOIP/camera deployments. It combines eight Gigabit Ethernet PoE‑out ports with two 10 Gb SFP+ fiber uplinks, making it ideal where both power and high‑speed uplinks are needed.
Q: What port configuration and PoE features does the CSS610‑8P‑2S+IN include?
A: It features 8 × 10/100/1000 Mbps RJ‑45 Ethernet ports with PoE‑out (802.3af/at and passive) and 2 × 10 Gb SFP+ ports for fiber uplinks. The total PoE‑out budget is 140 W, enabling you to power multiple devices off one switch.
Q: What power and input requirements are there for the CSS610‑8P‑2S+IN?
A: The switch supports a single AC input (100‑240 V) and a DC‑jack input (48‑57 V). It consumes approximately 12 W at idle and up to ~162 W with all PoE ports loaded.
Q: What switching performance and management features does the CSS610‑8P‑2S+IN provide?
A: It is built on the 88E6193X switch‑chip, supports non‑blocking switching (~56 Gbps), and runs SwOS Lite via web browser. Features include VLANs, MAC filtering, port‑to‑port forwarding, traffic mirroring and bandwidth limits, giving managed‑switch control at a compact price point.
Q: In what deployment scenarios is the CSS610‑8P‑2S+IN best applied, and how should it be installed?
A: It is ideal for edge racks or network closets needing PoE for access points or cameras and a high‑speed fiber uplink. Mounting is rack‑compatible (rack ears included) or desktop. Ensure sufficient ventilation, and use quality power and fiber uplink modules to maximise performance.
Resources
Original: $233.25
-70%$233.25
$69.97More Images
MikroTik CSS610-8P-2S+IN
The CSS610-8P-2S+IN switch is compact and easy to configure, making it perfect for a variety of setups. It has 8 Gigabit Ethernet ports and 2 SFP+ ports for 10 Gigabit fiber connectivity. With a total PoE-out budget of 140W, it offers impressive scalability potential, making it ideal for hotels, call centers, and more. This switch also has the core functionality of a managed switch, such as port-to-port forwarding, VLANs, and bandwidth limitations.
Tech Specs
Click here for the CSS610-8P-2S+IN datasheet.
| Device Specifications | |
|---|---|
| Specifications | |
| Product code | CSS610-8P-2S+IN |
| Switch chip model | 88E6193X |
| Dimensions | 272 x 208 x 44 mm |
| Operating System | SwitchOS Lite |
| Storage size | 64 KB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $229.00 |
| Powering | |
| Number of AC inputs | 1 |
| AC input range | 100-240 V |
| Number of DC inputs | 1 (DC jack) |
| DC jack input Voltage | 48-57 V |
| Number of PSU slots | 1 |
| Frequency (Hz) | 50-60 |
| Max power consumption | 162 W |
| Max power consumption without attachments | 12 W |
| Cooling type | Passive |
| PoE-out | |
| PoE-out ports | Ether1-Ether8 |
| PoE out | 802.3af/at |
| Low voltage PoE-Out current limit | 1000 mA |
| High voltage PoE-Out current limit | 625 mA |
| Total output power | 140 W |
| Ethernet | |
| 10/100/1000 Ethernet ports | 8 |
| Number of 1G Ethernet ports with PoE-out | 8 |
| Fiber | |
| SFP+ ports | 2 |
| Other | |
| CPU temperature monitor | Yes |
| Voltage Monitor | Yes |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | 20 |
FAQs
Q: What is the MikroTik CSS610‑8P‑2S+IN used for?
A: The CSS610‑8P‑2S+IN is a compact smart switch designed for small offices, hotel floors, retail networks or VOIP/camera deployments. It combines eight Gigabit Ethernet PoE‑out ports with two 10 Gb SFP+ fiber uplinks, making it ideal where both power and high‑speed uplinks are needed.
Q: What port configuration and PoE features does the CSS610‑8P‑2S+IN include?
A: It features 8 × 10/100/1000 Mbps RJ‑45 Ethernet ports with PoE‑out (802.3af/at and passive) and 2 × 10 Gb SFP+ ports for fiber uplinks. The total PoE‑out budget is 140 W, enabling you to power multiple devices off one switch.
Q: What power and input requirements are there for the CSS610‑8P‑2S+IN?
A: The switch supports a single AC input (100‑240 V) and a DC‑jack input (48‑57 V). It consumes approximately 12 W at idle and up to ~162 W with all PoE ports loaded.
Q: What switching performance and management features does the CSS610‑8P‑2S+IN provide?
A: It is built on the 88E6193X switch‑chip, supports non‑blocking switching (~56 Gbps), and runs SwOS Lite via web browser. Features include VLANs, MAC filtering, port‑to‑port forwarding, traffic mirroring and bandwidth limits, giving managed‑switch control at a compact price point.
Q: In what deployment scenarios is the CSS610‑8P‑2S+IN best applied, and how should it be installed?
A: It is ideal for edge racks or network closets needing PoE for access points or cameras and a high‑speed fiber uplink. Mounting is rack‑compatible (rack ears included) or desktop. Ensure sufficient ventilation, and use quality power and fiber uplink modules to maximise performance.
