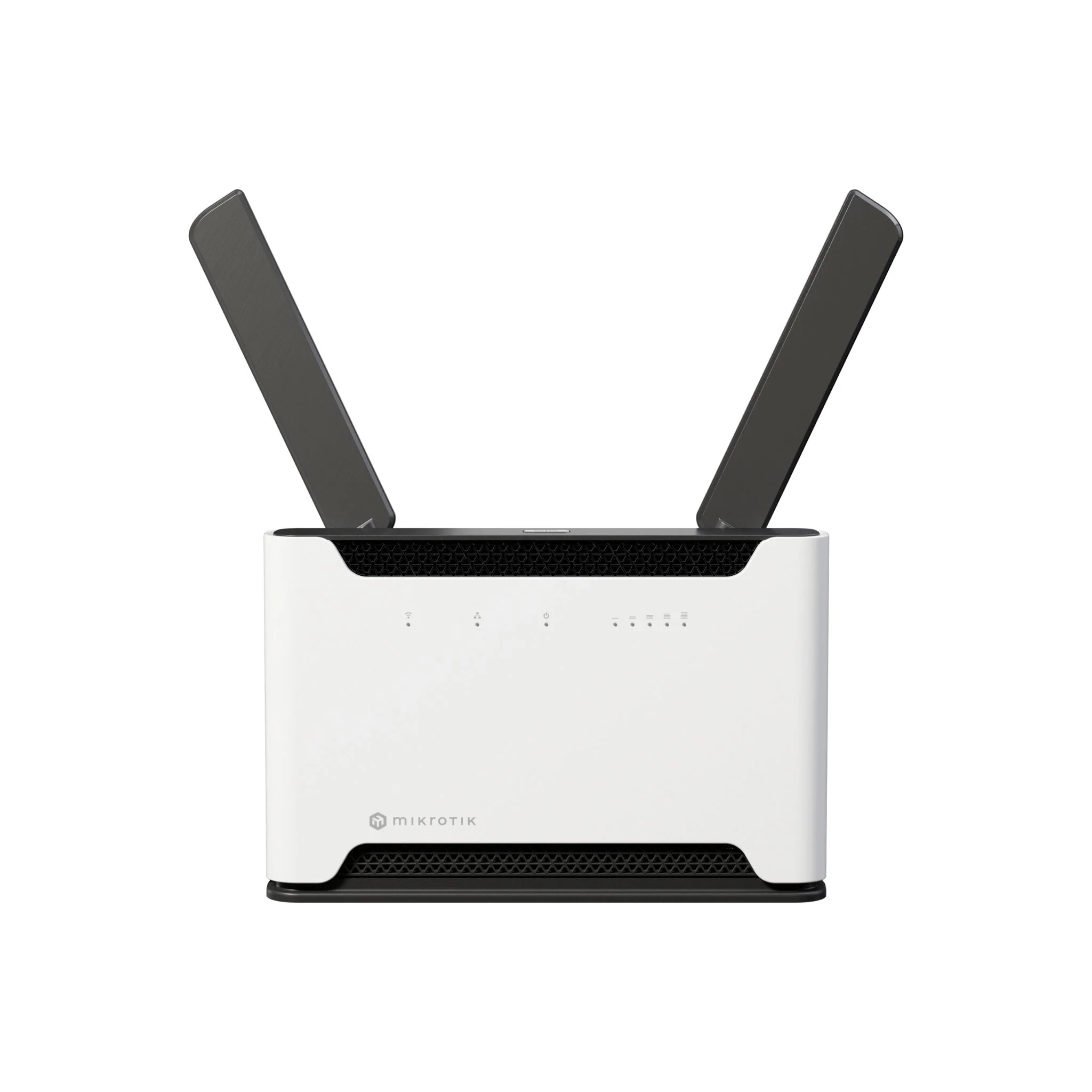

MikroTik Chateau PRO ax
The MikroTik Chateau PRO ax is the ideal WiFi 6 home access point for professional users who need top-notch traffic handling. Boasting a 2.2 GHz quad-core ARM CPU and the latest wireless chip, it utilises 4 spatial streams to provide twice the data rate of standard dual-chain devices, delivering seamless performance for even the most demanding tasks.
To fully take advantage of its capabilities, you'll need a compatible 4 spatial stream device on the other end of the connection. Equipped with 5 Gigabit Ethernet ports and a USB 3.0 port, the Chateau PRO ax can easily serve as a home media server with an SSD or function as an LTE modem backup. It's a standout choice for advanced container setups, bonding, and high-speed 4x4 MIMO wireless configurations. The increased number of radio transceivers boosts wireless coverage and beamforming performance, ensuring a strong network in any setting.
Note: This product is shipped with an EU plug and UK adaptor
View the MikroTik Chateau PRO ax datasheet here.
Tech Specs
| Device Specifications | |
|---|---|
| Specifications | |
| Product code | H53UiG-5HaxQ2HaxQ |
| Architecture | ARM 64bit |
| CPU | IPQ-8072A |
| CPU core count | 4 |
| CPU nominal frequency | 2208 MHz |
| Switch chip model | IPQ-8072 |
| RouterOS license | 6 |
| Operating System | RouterOS v7 |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25°C |
| Tested ambient temperature | -40°C to 70°C |
| IPsec hardware acceleration | Yes |
| Suggested price | $199.00 |
| Wireless Capabilities | |
| 2.4 GHz Max data rate | 1148 Mbit/s |
| 2.4 GHz number of chains | 4 |
| 2.4 GHz standards | 802.11b/g/n/ax |
| 2.4 GHz antenna gain | 5 dBi |
| 2.4 GHz chip model | QCN-5024 |
| 2.4 GHz generation | Wi-Fi 6 |
| 5 GHz Max data rate | 2400 Mbit/s |
| 5 GHz number of chains | 4 |
| 5 GHz standards | 802.11a/n/ac/ax |
| 5 GHz antenna gain | 6 dBi |
| 5 GHz chip model | QCN-5054 |
| 5 GHz generation | Wi-Fi 6 |
| WiFi speed | AX3600 |
| Ethernet | |
| 10/100/1000 Ethernet ports | 5 |
| 1G Ethernet ports with PoE-out | 1 |
| Peripherals | |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB 3.0 type A |
| Max USB current | 1.5 A |
| Powering | |
| Number of DC inputs | 1 (DC jack) |
| DC jack input voltage | 18–57 V |
| Max power consumption | 55 W |
| Max power consumption without attachments | 18 W |
| Cooling type | Passive |
| PoE-out | |
| PoE-out ports | Ether5 |
| PoE out | Passive PoE up to 57V |
| Low voltage PoE-Out current limit | 600 mA |
| High voltage PoE-Out current limit | 500 mA |
| Max total out (A) | 0.600 A |
| Total output current | 0.600 A |
| Total output power | 22.8 W |
| Certification & Approvals | |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | 20 |
| Other | |
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
FAQs
Q: What is the MikroTik H53UiG‑5HaxQ2HaxQ used for?
A: The H53UiG‑5HaxQ2HaxQ is designed for high‑performance home, small office or enterprise edge deployments. It offers quad‑band WiFi (2.4 GHz + two 5 GHz radios + 6 GHz), high throughput and multiple wired connection options.
Q: What wireless standards and speeds does the H53UiG‑5HaxQ2HaxQ support?
A: It supports IEEE 802.11 b/g/n/ax on 2.4 GHz, 802.11 a/n/ac/ax on 5 GHz, and 802.11ax on 6 GHz (where allowed). With tri‑chain configurations, it delivers extremely high aggregate throughput for streaming, gaming and device‑dense environments.
Q: What networking ports and PoE or power capabilities does the H53UiG‑5HaxQ2HaxQ offer?
A: It features a multi‑gig WAN port (2.5 Gb/s or 10 Gb/s depending on the variant), five Gigabit LAN ports, a USB 3.0 port for external storage or modem support, and supports PoE‑in and PoE‑out for flexible deployment.
Q: What are the key hardware specifications and management features of the H53UiG‑5HaxQ2HaxQ?
A: It includes a quad‑core ARM CPU running at high clock speed, 1 GB RAM, 256 MB NAND storage, and ships with RouterOS v7 (Licence Level 5) for advanced routing, VPN, firewall, hotspot and centralised wireless management.
Q: Who is the H53UiG‑5HaxQ2HaxQ best suited for and how is it deployed?
A: This router is ideal for high‑end users such as content creators, gaming households, small businesses or branch offices requiring reliable WiFi for many simultaneous clients. Deployment is best on a wall or desktop in a central location to optimise quad‑band coverage.
