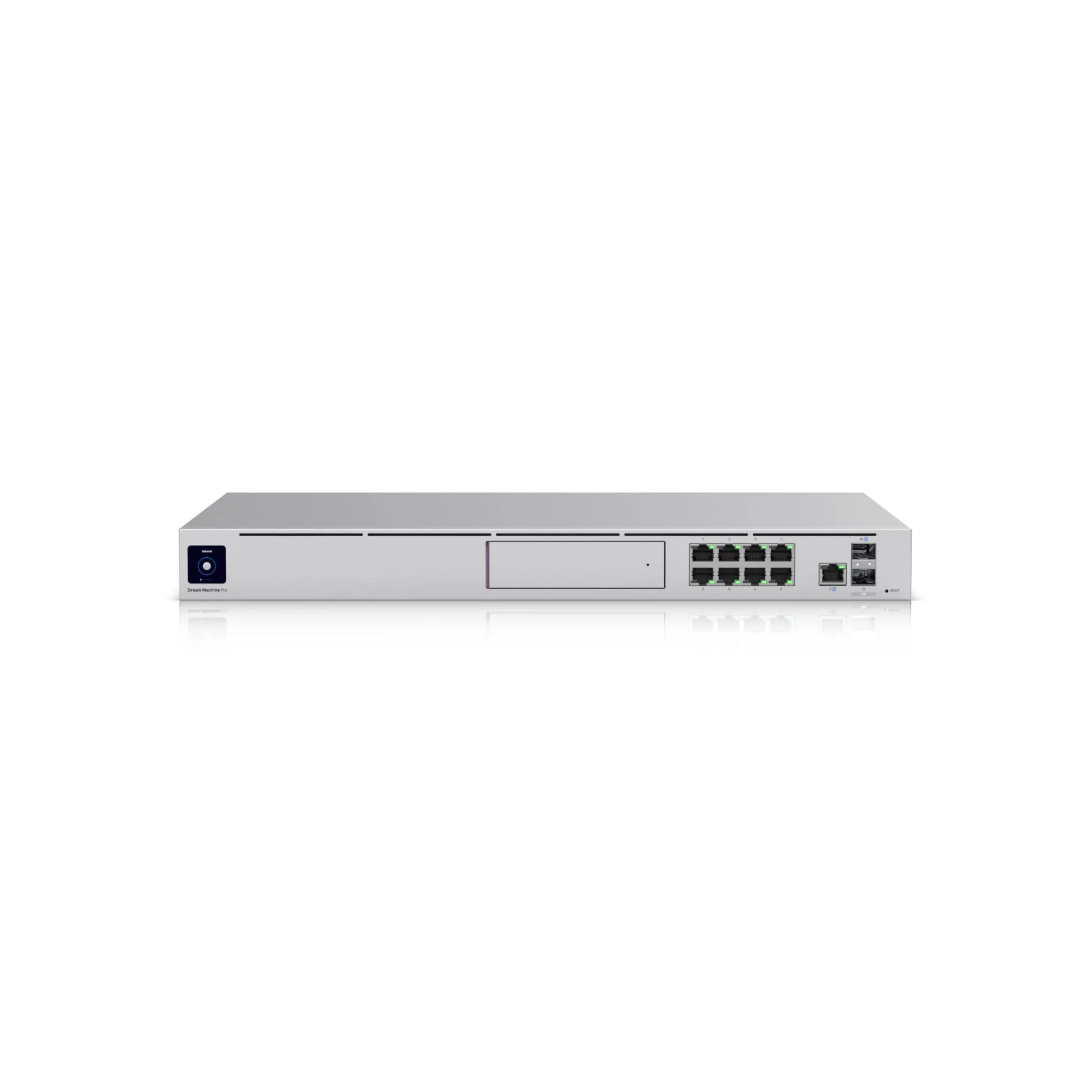

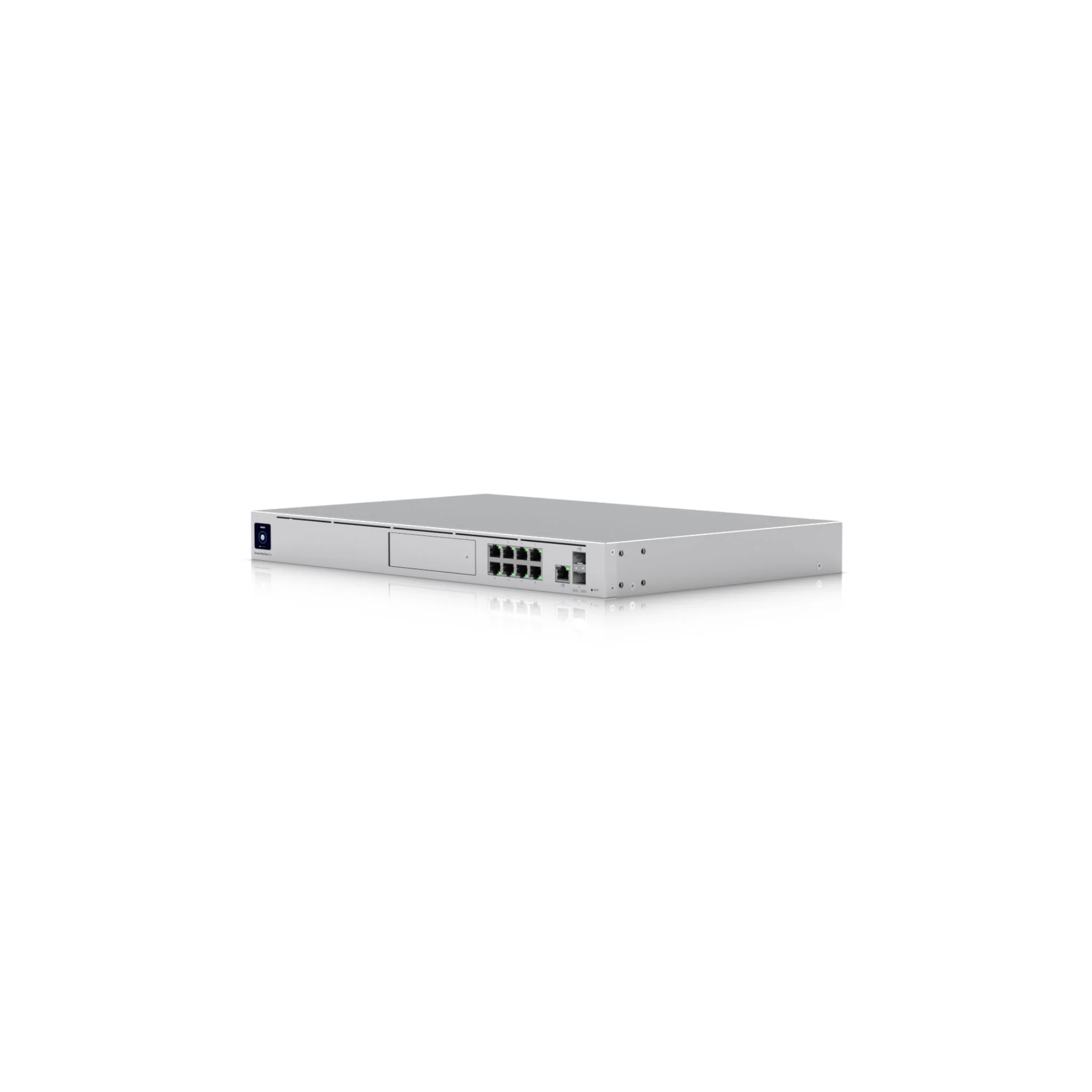

UniFi Dream Machine Pro – 10G UniFi Cloud Gateway with Full UniFi OS Support

The UniFi Dream Machine Pro (UDM-Pro) is a high-performance gateway firewall that combines routing, security, and centralised UniFi application management in a single rackmount unit. Supporting over 100 UniFi devices and 1,000+ clients, it delivers scalable, enterprise-grade performance for professional UniFi deployments.

With 3.5+ Gbps IDS/IPS routing, the UDM-Pro offers advanced security without compromising speed. It features (1) 10G SFP+ and (1) GbE WAN port, plus (1) 10G SFP+ and (8) GbE LAN ports for flexible, high-speed connectivity. The integrated 3.5" NVR HDD bay and built-in UniFi Protect support allow for centralised video storage, while UniFi Power Backup readiness ensures power redundancy.

A 1.3" touchscreen provides real-time network insights, and official SFP+ modules or SFP+ to RJ45 adapters can be paired for optimal performance. The UDM-Pro is ideal for businesses, campus networks, and multi-site UniFi installations needing advanced control in a single device.

Any EU products are supplied with the appropriate UK power method at no extra cost.

Tech Specs

Click here to see the Unifi Dream Machine Pro Datasheet.

Device Specifications
Overview
Dimensions	442.4 x 43.7 x 285.6 mm
UniFi Application Suite	Network ✓ Protect ✓ Access ✓ Talk ✓ Connect ✓
Managed UniFi Devices	100+
Managed Cameras	(24) HD (14) 2K (8) 4K
Simultaneous Users Connected	1,000+
Max. WAN Port Count	8
Default WAN Ports	(1) 10G SFP+ (1) GbE RJ45
Port Layout	1 GbE RJ45: 9 (1G/100M/10M) 10G SFP+: 2 (10G/1G)
IDS/IPS Throughput	3.5 Gbps
Form Factor	Rack mount (1U)
Redundancy	Shadow Mode (VRRP) Gateway Failover DC Power Backup
Security
Features	Stateful Firewall ✓ Application-Aware Layer 7 Firewall ✓ DPI & Traffic Identification ✓ Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) ✓ Content Filtering ✓ Intrusion Prevention (IPS/IDS) ✓ Ad Blocking ✓ IDS/IPS Signatures: 55,000+ with CyberSecure VLAN/Subnet-based Traffic Segmentation ✓
VPN & SD-WAN
Features	License-Free SD-WAN ✓ Site-to-Site VPN: Site Magic ✓, IPsec ✓, OpenVPN ✓ VPN Server: Identity Endpoint One-Click VPN ✓, Teleport Zero-Configuration VPN ✓, WireGuard ✓, OpenVPN ✓, L2TP ✓ VPN Client: OpenVPN ✓, WireGuard ✓
Networking
Features	Multi-WAN Load Balancing ✓ Shadow Mode (VRRP) High Availability ✓ Dynamic Routing: OSPF ✓, BGP ✓ Advanced QoS ✓ Multicast DNS (mDNS) ✓ Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) ✓ Integrated RADIUS Server ✓ RADIUS over TLS (RadSec) ✓ Additional Internet Failover with UniFi LTE Backup ✓ Internet Quality and Outage Reporting ✓ MAC Address Table Size: 4,000 Policy-based WAN and VPN Routing ✓ Customizable DHCP Server ✓ IPv6 ISP Support ✓ IGMP Proxy ✓
Hardware
NVR Storage	(1) 3.5" NVR HDD bay
Max. Power Consumption	33W
Power Method	(1) Universal AC input, 100—240V AC, 50/60 Hz (1) USP-RPS DC input
Power Supply	AC/DC, internal, 50W
Supported Voltage Range	100—240V AC
Processor	Quad-core ARM® Cortex®-A57 at 1.7 GHz
System Memory	4 GB
On-board Storage	16 GB
Weight	3.9 kg (8.6 lb)
Enclosure Material	Aluminium CNC, SGCC steel
Mount Material	SGCC steel
LCM Display	1.3" touchscreen
Management	Ethernet Bluetooth
LEDs	Ethernet ✓ SFP+ ✓ RPS ✓ PSU ✓ HDD ✓
Button	(1) Factory-reset
ESD/EMP Protection	Air: ± 15kV Contact: ± 8kV
Ambient Operating Temperature	-10 to 40° C (14 to 104° F)
Ambient Operating Humidity	5 to 95% noncondensing
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel, SRRC

FAQs

Q: What is the Ubiquiti UDM-Pro and what is it used for?
A: The UDM-Pro is a UniFi OS Console that integrates a security gateway, network controller, NVR, and an 8-port Gigabit switch with 10G SFP+ uplink for professional network management.

Q: What WAN and LAN capabilities does the UDM-Pro offer?
A: It features dual WAN with failover, one 10G SFP+ WAN port, one Gigabit RJ45 WAN port, eight Gigabit LAN ports, and a 10G SFP+ LAN port for high-speed connections.

Q: Does the UDM-Pro include UniFi Protect NVR functionality?
A: Yes, it includes a built-in NVR with a 3.5" HDD bay, supporting UniFi Protect for IP camera management and video storage.

Q: What security features are built into the UDM-Pro?
A: It supports a next-generation firewall, IDS/IPS, VPN server, VLANs, and deep packet inspection to safeguard enterprise networks.

Q: How is the UDM-Pro managed and updated?
A: It’s managed through the UniFi Network application or UniFi OS web interface, with cloud access, remote management, and automatic firmware updates.
