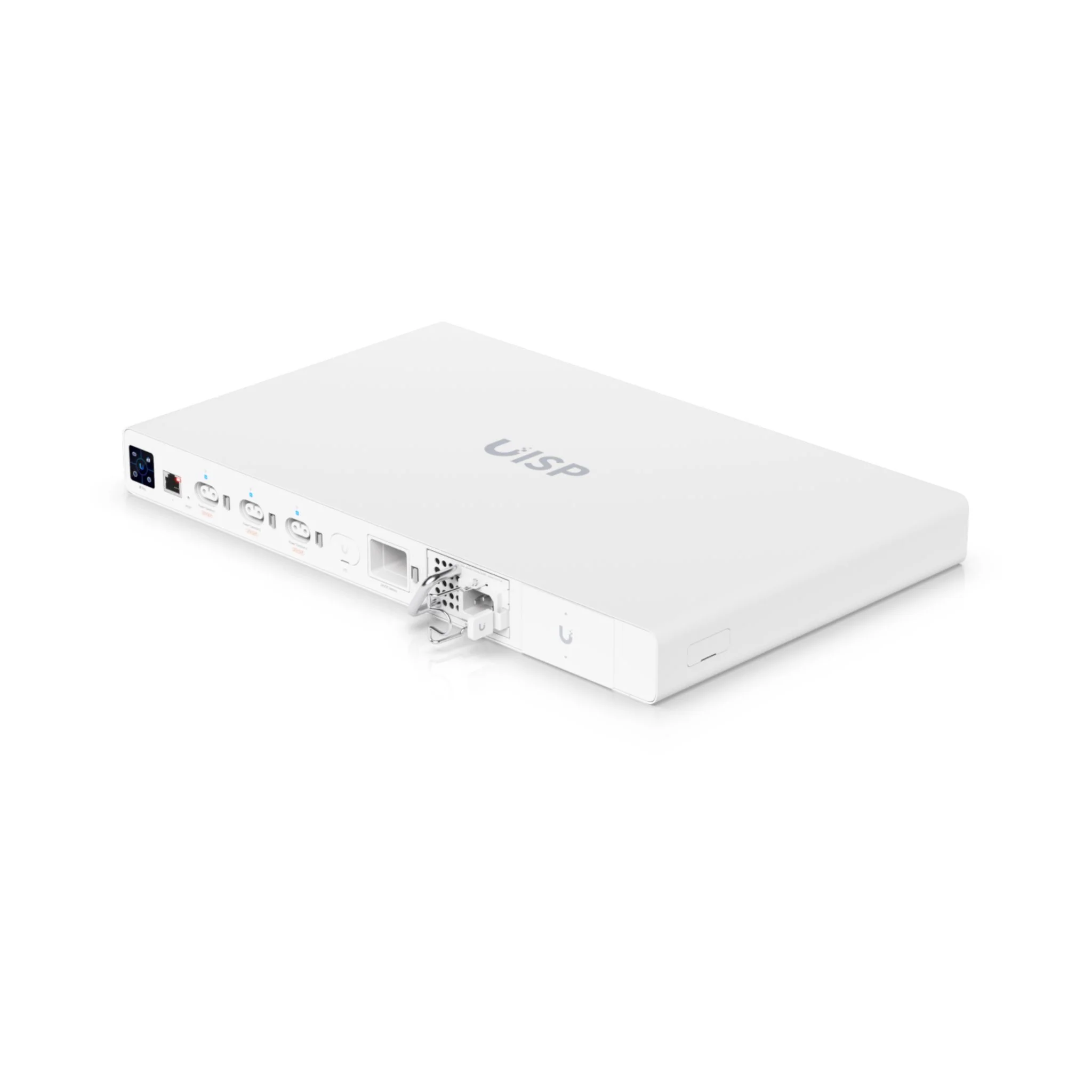

The UISP Power Pro supports high-capacity WISP deployment sites with uninterruptible power management and up to 480W power delivery to UISP devices. Includes (1) 250W AC/DC Power Supply, (2) PSU bays, and (1) DC battery port (battery not included). Compatible with UISP Console, Router, and Switch, and requires a nano-SIM card for SMS-over-LTE notifications.

Any EU products are supplied with the appropriate UK power method at no extra cost.

Tech Specs

Click here for the Ubiquiti UISP Power Pro datasheet.

Device Specifications
Mechanical
Dimensions	442.4 x 267.5 x 43.7 mm (17.4 x 10.5 x 1.7")
Weight	4.16 kg (9.2 lb)
Enclosure materials	SGCC steel, polycarbonate/ABS
Hardware
Networking interface	(1) 10/100 MbE RJ45 LAN port
Management interface	Ethernet In-Band Bluetooth
Power TransPort interface	(3) Power TransPort ports [up to 250W (27V DC) output each] Total output: 240W (27V DC) with 1 PSU / 480W (27V DC) with 2 PSUs
Primary power	(2) Universal AC inputs (100–240V AC, 3.5A Max., 50/60Hz) (1) PSU included (Additional modules sold separately)
Backup power	(1) 24V DC, 20.83A lead-acid battery input* (Battery not included) *Connect to a lead-acid battery only. Using another battery type could be hazardous.
Supported voltage range	100 to 240V AC
Max. power consumption	3W (Excludes Power TransPort output and battery charger)
ESD/EMP protection	Air: ±15 kV / Contact: ± 8 kV
LCM display	1.3" touchscreen
Ambient operating temperature	-10 to 50° C (14 to 122° F)
Ambient operating humidity	5 to 95% non-condensing
Certifications	CE, FCC, IC, PTCRB, AT&T
LTE
Antenna	External (included)
SIM	Nano-SIM
Category	Cat M1
Bands	US/Canada: FDD-LTE Bands 2, 4, 12, 13 (AT&T Network-Ready) EU: FDD-LTE Bands 1, 3, 8, 20, 28
Notification type	SMS (Requires a nano-SIM card from a Cat M1 SMS provider)
Input rating	5V DC, 0.5A
LEDs
System	Status
RJ45 data ports	Link/activity
Power TransPort	On/Off
Compatibility
Supported models	UISP Console UISP Router (installed with UISP Box) UISP Router Pro UISP Switch (installed with UISP Box) UISP Switch Pro
Software
Management application	UISP: Version 1.4.8 and later

FAQs

Q: What is the Ubiquiti UISP-P-Pro used for?
A: The UISP-P-Pro is an outdoor-rated, high-capacity 24V Passive PoE power supply designed to provide reliable power to UISP devices in network deployments.

Q: Which devices are compatible with the UISP-P-Pro?
A: It is compatible with UISP routers, switches, and other 24V Passive PoE-powered devices, enabling stable operation across your network.

Q: Is the UISP-P-Pro suitable for outdoor installations?
A: Yes, it features a weather-resistant and robust enclosure, making it ideal for harsh outdoor conditions and remote deployment sites.

Q: What power output does the UISP-P-Pro provide?
A: The UISP-P-Pro delivers 24V Passive PoE with high current capacity, ensuring consistent and reliable power for multiple UISP devices simultaneously.

Q: Can the UISP-P-Pro be used in enterprise or ISP networks?
A: Yes, its high-capacity PoE output and durable design make it perfect for ISP towers, wireless links, and enterprise outdoor network deployments.

Resources

UISP-P-Pro QIG
