UniFi Pro Max 16 – 16-Port 2.5G Layer 3 Switch with Etherlighting

The UniFi Pro Max 16 is a versatile 16-port Layer 3 switch designed to deliver high-speed, reliable connectivity with advanced network visibility. It features 12 GbE RJ45 ports, 4 × 2.5 GbE RJ45 ports, and 2 × 10G SFP+ uplinks, making it a flexible choice for a wide range of UniFi deployments.

Equipped with Ubiquiti’s Etherlighting technology, the Pro Max 16 provides port illumination to indicate location, speed, link status, and native VLAN or network assignment when paired with UniFi Etherlighting Patch Cables. This enhances troubleshooting and visibility in both rack-mounted and distributed environments.

Its silent, fanless cooling system ensures quiet operation, while versatile mounting options - desktop, wall, or rack (with accessory) - allow for flexible installation. Fully managed through the UniFi Network application, the Pro Max 16 is well-suited to offices, hospitality, education, and other environments requiring dependable, high-capacity switching.

Tech Specs

Click here for the UniFi Pro Max 16 Switch datasheet.

Device Specifications
Overview
Dimensions	325.1 x 160 x 43.7 mm
Port Layout	1 GbE RJ45: 12 (1G/100M/10M) 2.5 GbE RJ45: 4 (2.5G/1G/100M/10M) 10G SFP+: 2 (10G/1G)
Layer 3	✓
Form Factor	Rack mount (1U), desktop, wall
Etherlighting™	✓
Performance
Switching Capacity	84 Gbps
Total Non-Blocking Throughput	42 Gbps
Forwarding Rate	62 Mpps
Supported VLANs	1,000
MAC Address Table Size	16,000
L3 Table Size	ARP Entries: 6,000 IPv4 Routes: 512
Packet Buffer Size	1.5 MB
Access Lists	IPv4: 128 MAC: 128
Layer 3 Features
DHCP Server (Local Networks)	✓
DHCP Relay	✓
Inter-VLAN Routing (Local Networks)	✓
Static Routing (Local Networks)	✓
Layer 2 Features
LACP Port Aggregation	✓
STP & RSTP	✓
QoS (DSCP)	✓
Pro AV Profiles	Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron
Advanced IGMP Configuration	Querier, Fast Leave, Router Port
IGMP Snooping	✓
802.1X Control	✓
MAC-Based ACLs & Device Isolation	✓
DHCP Snooping & Guarding	✓
Egress Rate Limit	✓
Flow Control	✓
Storm Control	✓
Multicast & Broadcast Rate Limiting	✓
MAC Address Blocking	✓
IP-Based ACLs & Network Isolation	✓
MAC-Based Port Restriction	✓
Port Isolation	✓
Port Mirroring	✓
Jumbo Frames	✓
LLDP-MED	✓
Voice VLAN	✓
Loop Protection	✓
Hardware
Max. Power Consumption	25W
Power Method	AC/DC Adapter (included)
Power Input Method	USB Type-C, 5V DC, 5A
Power Supply	AC/DC, external, 25W
Supported Voltage Range	4.8—5.2V DC/USB
Management	Ethernet AR
Heat Dissipation (Excluding PoE Output)	85.3 BTU/hr
Weight	1.95 kg (4.3 lb)
Enclosure Material	SGCC steel
Mount Material	SGCC steel
Supported Rack Depth	400~1200 mm (15.7-47.2")
LCM Display	1.3" touchscreen
Ambient Operating Temperature	-5 to 40° C (23 to 104° F)
Ambient Operating Humidity	10 to 90% noncondensing
Etherlighting™	Ethernet: ✓ SFP+: ✓
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel
Software
Application Requirements	UniFi Network Version 8.1.127 and later

FAQs

Q: What is the Ubiquiti USW-Pro-Max-16 and who is it designed for?
A: The USW-Pro-Max-16 is a compact Layer 3 Etherlighting switch featuring 12 × 1 GbE ports, 4 × 2.5 GbE ports, and 2 × 10 G SFP+ uplinks—ideal for high-performance, space-efficient network deployments.

Q: What is the switching capacity and throughput of the USW-Pro-Max-16?
A: It offers 84 Gbps switching capacity and 42 Gbps non-blocking throughput, with a forwarding rate of 62 million packets per second.

Q: What advanced Layer 2 and Layer 3 features does it support?
A: Equipped with Layer 2 features like IGMP snooping, STP/RSTP, VLANs, ACLs, QoS, port mirroring, and Etherlighting. Layer 3 features include DHCP server/relay, inter-VLAN routing, and static routing.

Q: How is the USW-Pro-Max-16 powered and mounted?
A: It uses an external 5 V, 25 W USB-C (AC/DC) adapter, is fanless and silent, and supports desktop, wall, or 1U rack (with optional kit) mounting.

Q: How is the USW-Pro-Max-16 managed?
A: Managed via the UniFi Network Application, with features like Etherlighting visual port indicators and a 1.3″ touchscreen for local diagnostics.

Resources

Guide: UniFi Network for Retail and Hospitality — MS Dist

Guide: Setting Up a Ubiquiti UniFi Network for a Small Office or Business — MS Dist

Discount

Ubiquiti airMAX Rocket AC Lite

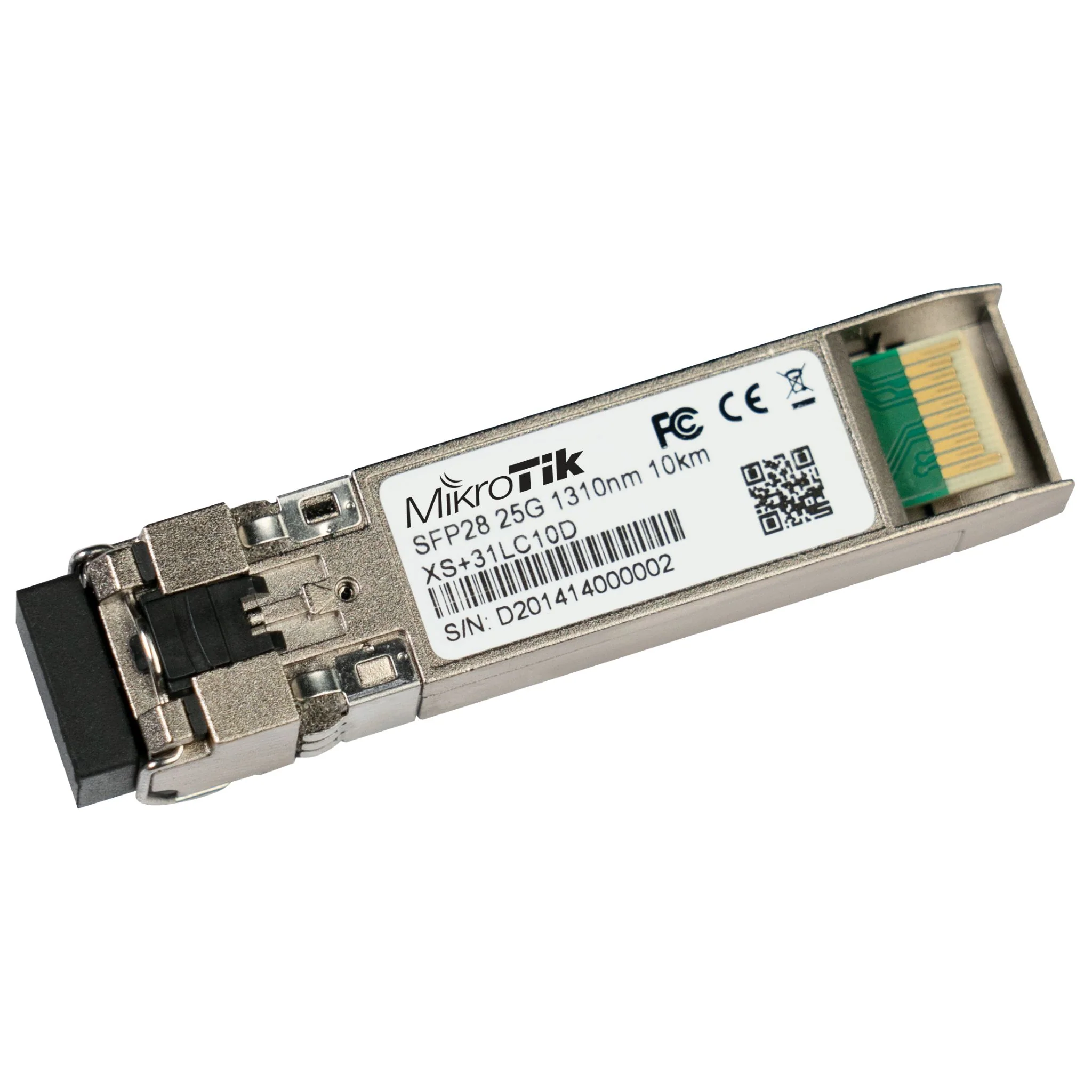

MikroTik XS+31LC10D SFP/SFP+/SFP28 1/10/25G Single Mode 10km 1310nm Fibre Module

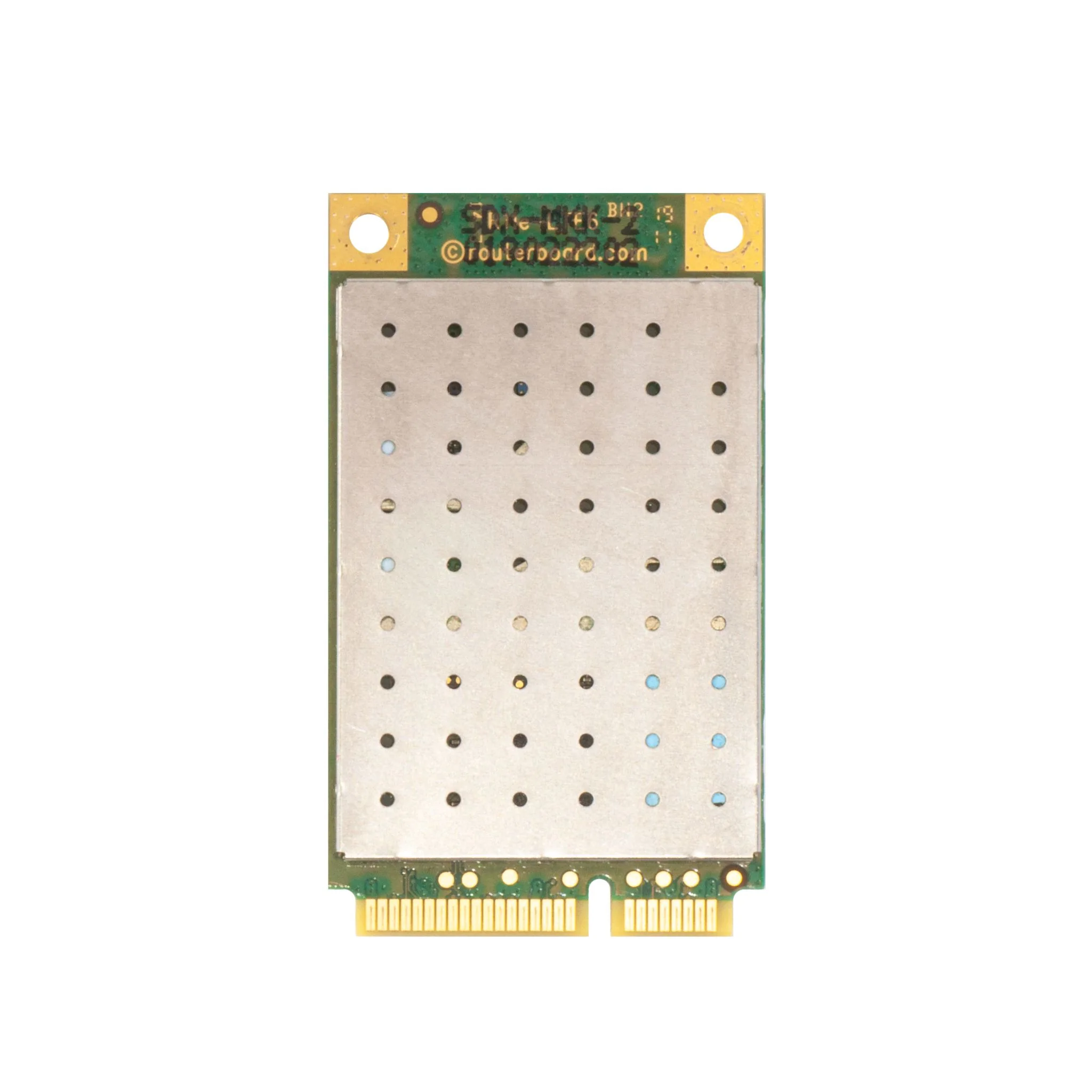

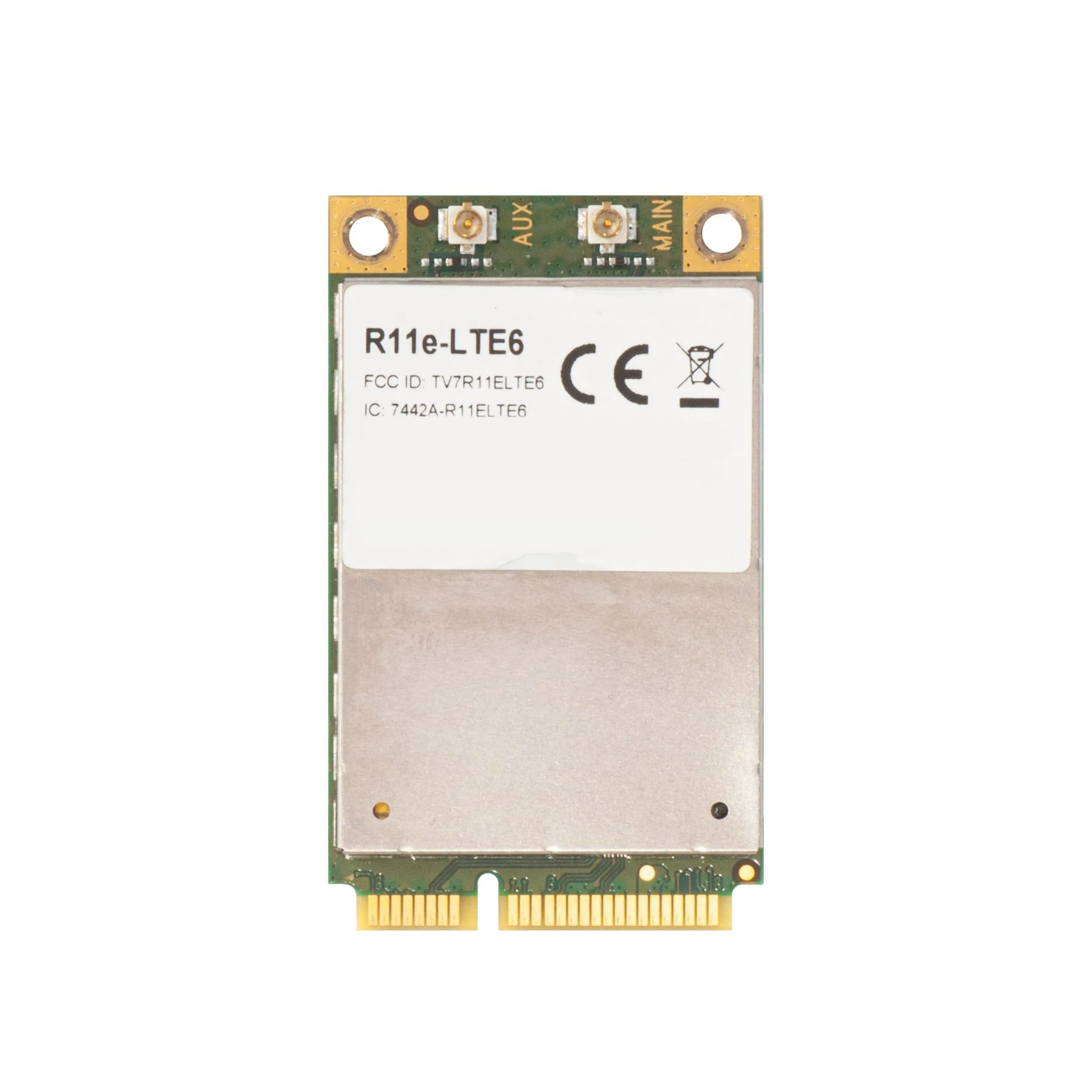

MikroTik MiniPCI-e 2G/3G/4G/LTE card
