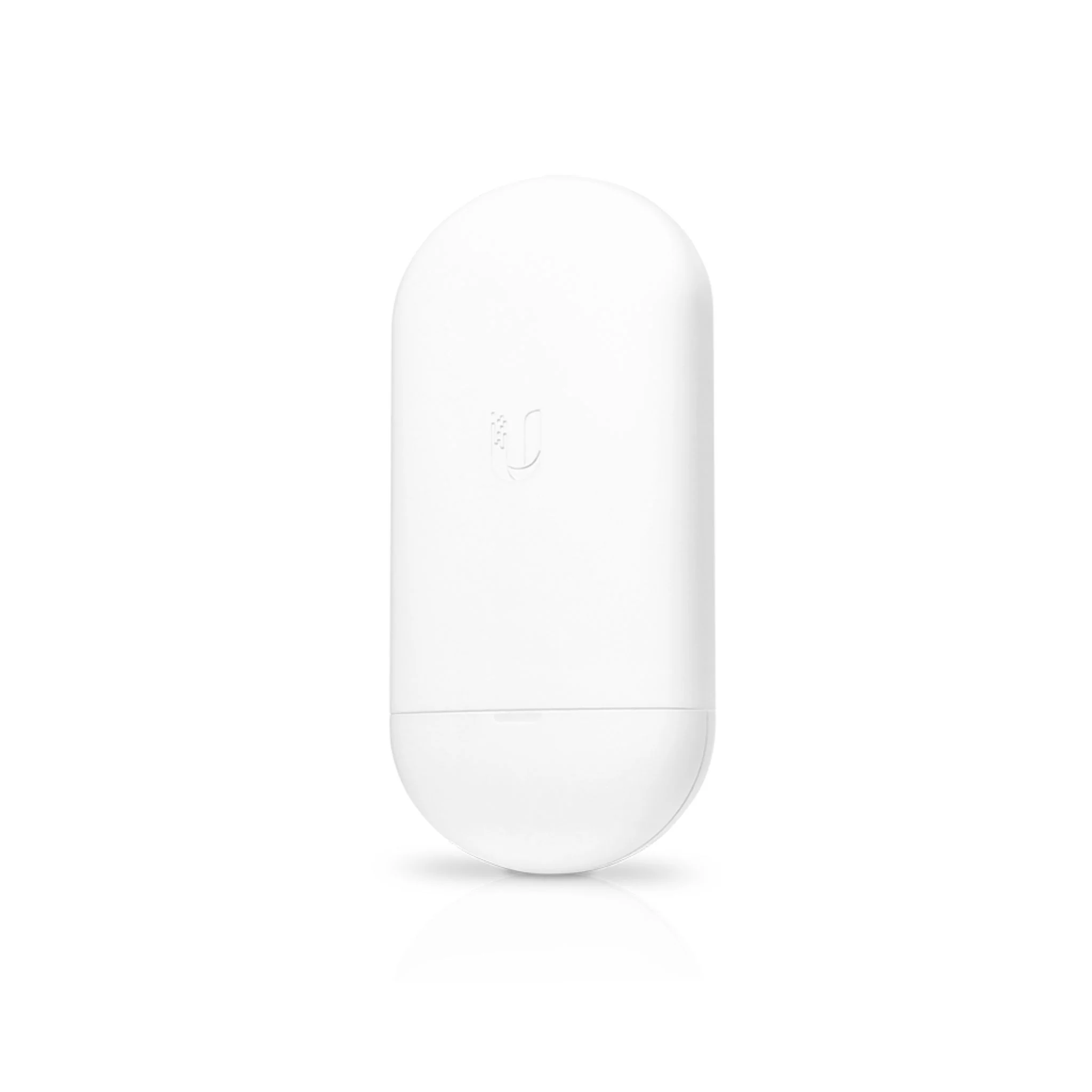

The Ubiquiti UISP airMAX NanoStation 5AC Loco is a powerful 5 GHz outdoor WiFi bridge designed for homes and small businesses needing fast, long-range wireless connectivity. Whether extending WiFi to a garage, garden office, or outbuilding, or linking remote security cameras and smart devices, this compact device delivers 450+ Mbps speeds with low latency and strong signal reliability.

With airMAX AC technology and a 10+ km range, the NanoStation 5AC Loco ensures stable, interference-free connections. Its weather-resistant housing makes it ideal for outdoor installations, while easy setup and UISP compatibility provide simple network management. Perfect for homeowners and small businesses looking to eliminate WiFi dead zones and extend coverage seamlessly.

Tech Specs

Click here for the Ubiquiti airMAX NanoStation 5AC Loco datasheet.

Device Specifications
Mechanical
Dimensions	179 x 77.5 x 59.1 mm (7.1 x 3.1 x 2.3")
Weight	180 g (6.4 oz)
Enclosure material	UV-stabilized plastic
Mounting	Pole mounting kit (Included)
Hardware
Networking interface	(1) GbE RJ45 port
Power method	Passive PoE 2-pair (4, 5+; 7, 8 return)
Power supply	24V, 0.3A gigabit PoE supply (Not included)
Supported voltage range	22–27V DC
Max. power consumption	7W
LEDs	Power, Ethernet, (4) signal strength
Ambient operating temperature	-40 to 70° C (-40 to 158° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
NDAA Compliant	Yes
System
Gain	13 dBi
Channel bandwidths	10/20/30/40/50/60/80 MHz
Cross-pol isolation	20 dB min.
Max. VSWR	1.8:1
Beamwidth	45° (H-pol) / 45° (V-pol) / 45° (Elevation)
Polarization	Dual linear
Operating Frequency (MHz)
Worldwide	5150-5875 MHz
USA	U-NII-1: 5150-5250 MHz U-NII-2A: 5250-5350 MHz U-NII-2C: 5240-5725 MHz U-NII-3: 5725-5850 MHz
Management Radio (MHz)
Worldwide	2412 - 2472 MHz
US/CA	2412 - 2462 MHz

FAQs

Q1: What is the Ubiquiti Loco5AC?
A1: The Loco5AC is a compact, high-performance 5 GHz outdoor Wi-Fi radio designed for long-range point-to-point (PtP) and point-to-multipoint (PtMP) wireless links. It features an updated airMAX AC chipset for improved performance and reliability.

Q2: What throughput and range does the Loco5AC support?
A2: The Loco5AC offers up to 450 Mbps real TCP/IP throughput and supports link distances of 10+ km in optimal conditions.

Q3: What are the key hardware specifications of the Loco5AC?
A3: Key specifications include:

Processor: Atheros MIPS 74Kc, 560 MHz
Memory: 64 MB DDR2
Networking Interface: (1) 10/100/1000 Ethernet Port
Antenna Gain: 13 dBi
Power Method: Passive PoE 2-pair (Pairs 4, 5+; 7, 8 Return)
Power Supply: 24V, 0.3A Gigabit PoE Supply (Not included)
Max. Power Consumption: 7W
Supported Voltage Range: 24V ±10%
Operating Temperature: -40 to 70°C (-40 to 158°F)
Weight: 180 g (6.35 oz)
Dimensions: 179 x 77.5 x 59.1 mm (7.05 x 3.05 x 2.33")
Mounting: Pole mounting kit included
Enclosure Material: UV-stabilized plastic

Q4: Does the Loco5AC include a backup radio?
A4: No, the Loco5AC does not include a backup radio. For redundancy, consider pairing it with another Loco5AC or a compatible device.

Q5: What software features does the Loco5AC support?
A5: The Loco5AC supports features such as UISP management, airMAX ac protocol, and a dedicated Wi-Fi radio for management and spectral analysis. It operates in bridge mode and is compatible with UISP web and mobile applications.

Resources

MS Dist | Getting a WiFi Link

MS Dist | Spectrum and Licensing

Bundles

Ubiquiti airMAX NanoStation 5AC Loco

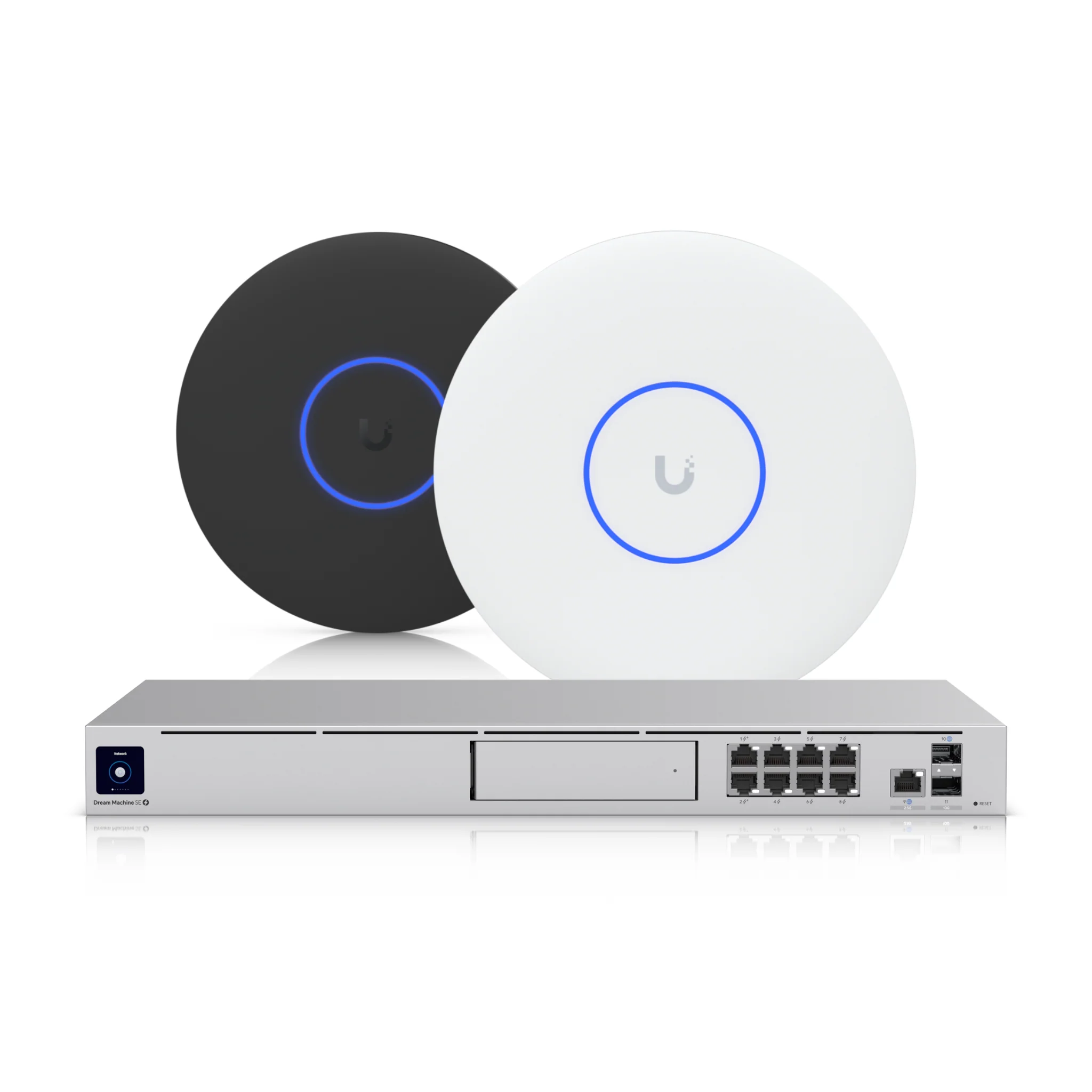

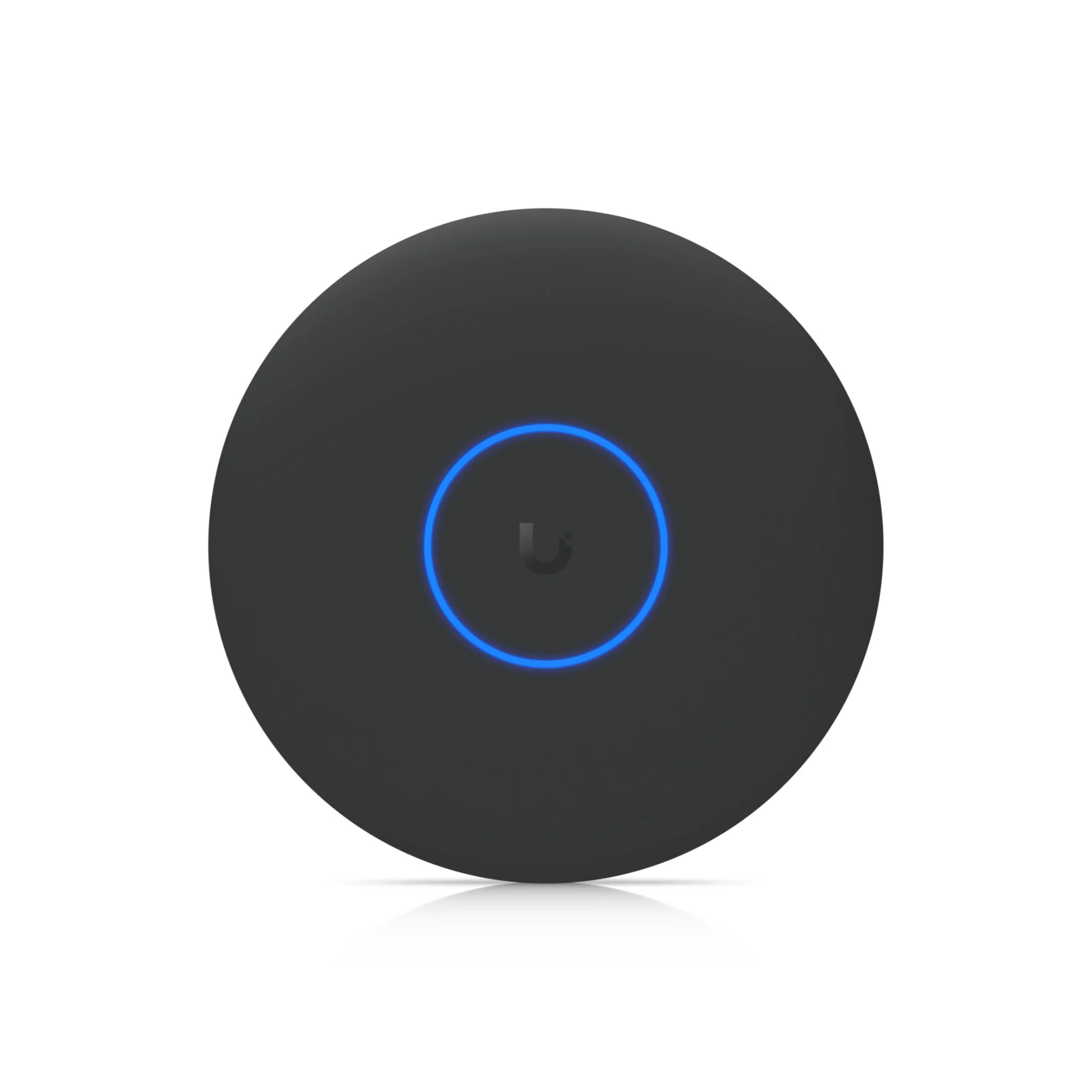

UniFi Business Network Setup

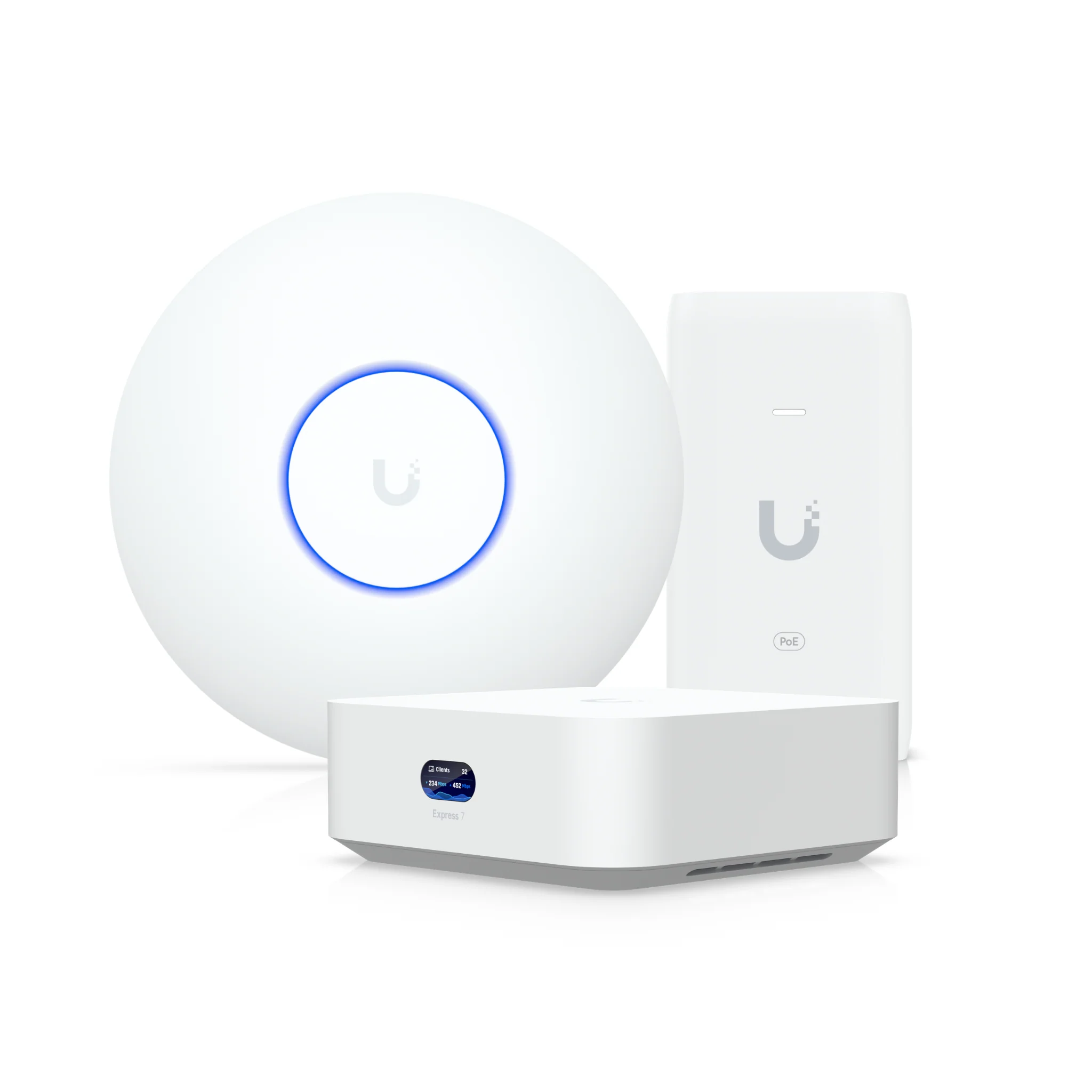

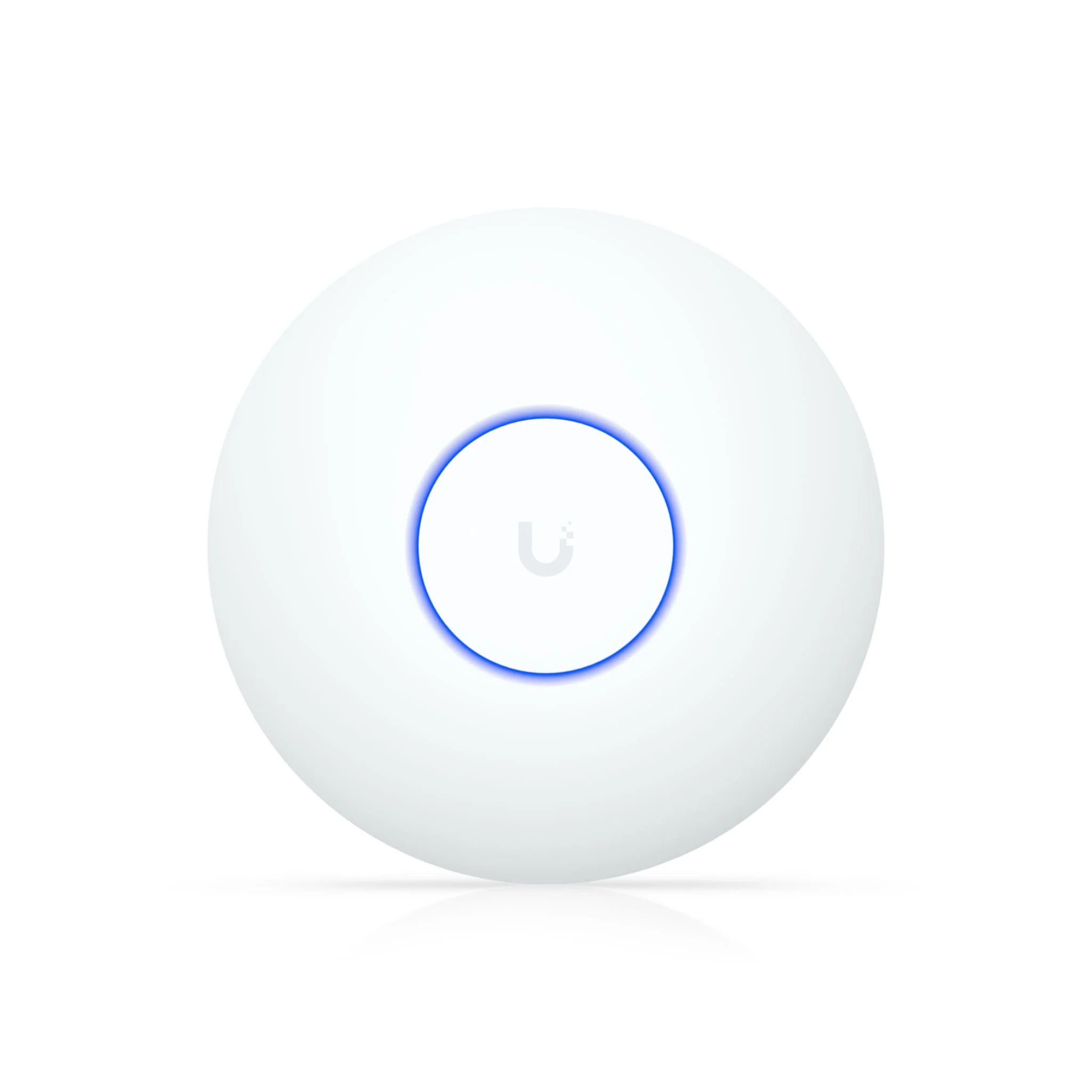

UniFi Small Home Setup

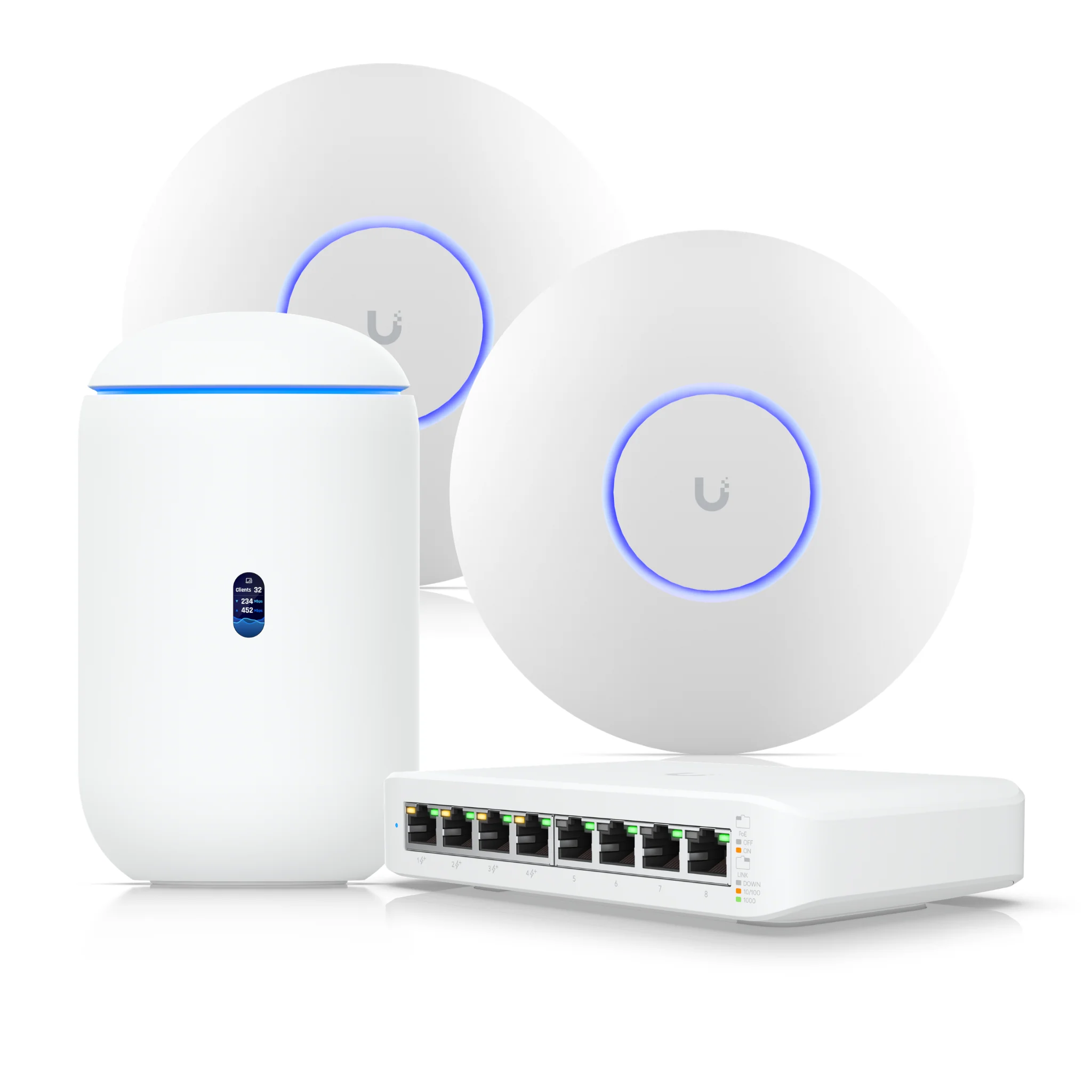

UniFi Large Home Setup
