The Teltonika RUTX50 is a future-proof, multi-network industrial router with 5G mobile communication, 5 SIM cellular communication, 5 Gigabit Ethernet ports, and dual-band WiFi for enhanced data transfer. It also features advanced security and specialised industrial protocols for professional applications.

Tech Specs

Click here for the Teltonika RUTX50 datasheet.

Device Specifications
Mobile
Mobile Module	5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2) 4G LTE Cat 20 up to 2.0 Gbps DL / 200 Mbps UL 3G up to 42 Mbps DL / 5.76 Mbps UL
3GPP Release	Release 15/16 depending on hardware version
eSIM*	Consumer type eSIM, profile download/removal operations, up to 7 profiles; does not include data plans *Feature availability varies by order code
SIM Switch*	Dual SIM and eSIM, auto-switch for weak signal, data/SMS limits, roaming, no network, network denied, data fail, SIM idle protection *Feature availability varies by order code
Status	IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC
SMS	SMS status, configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD	Supports sending and reading Unstructured Supplementary Service Data messages
Block/Allow List	Operator block/allow list (by country or operator)
Multiple PDN	Possibility to use different PDNs for multiple network access and services
Band Management	Band lock, used band status display
SIM Idle Protection Service	Router periodically switches to unused SIM to prevent SIM blocking
SIM PIN Code Management	Setting, changing, or disabling SIM PIN
APN	Auto APN
Bridge	Direct connection (bridge) between mobile ISP and device on LAN
Passthrough	Router assigns its mobile WAN IP address to another device on LAN
Framed Routing	Support an IP network behind 5G UE
Wireless
Wireless Mode	802.11b/g/n/ac Wave 2 (Wi-Fi 5), Dual Band, MU-MIMO, up to 867 Mbps, 802.11r fast transition, Access Point (AP), Station (STA)
Wi-Fi Security	WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w PMF
SSID/ESSID	SSID stealth mode and access control based on MAC address
Wi-Fi Users	Up to 150 simultaneous connections
Wireless Connectivity Features	Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC Filter	Allowlist, Blocklist
Wireless QR Code Generator	Once scanned, a user will automatically enter your network without login
TravelMate	Forward Wi-Fi hotspot landing page to a connected device
Ethernet
WAN	1 x WAN port 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az, supports auto MDI/MDIX crossover
LAN	4 x LAN ports 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az, supports auto MDI/MDIX crossover
Network
Routing	Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network Protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP Passthrough Support	H.323 and SIP-ALG protocol NAT helpers
Connection Monitoring	Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP link inspection
Firewall
Firewall	Port forward, traffic rules, custom rules, TTL target customization
Firewall Status Page	View all firewall statistics, rules, and counters
Port Management	View, enable/disable, auto-configuration on/off, change transmission speed
Network Topology	Visual representation of connected devices
Hotspot
Hotspot	Captive portal, internal/external RADIUS, SMS authorisation, SSO authentication, landing page options, walled garden, user scripts, URL parameters, user groups, 9 default customisable themes, custom theme upload/download
DHCP	Static/dynamic IP allocation, DHCP relay/server configuration, status, static leases (MAC with wildcards)
QoS / SQM	Traffic priority queuing by source/destination, service, protocol, or port; WMM, 802.11e
DDNS	Supported >77 service providers, others configurable manually
DNS over HTTPS	DNS queries routed over HTTPS for secure resolution
Network Backup	Wi-Fi WAN, Mobile, VRRP, Wired; automatic failover
Load Balancing	Balance internet traffic over multiple WAN connections
Security
802.1x	Port-based network access control client
Authentication	Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS authentication, IP & login attempt block, time-based login blocking, random password generator
Attack Prevention	DDOS prevention (SYN flood, SSH, HTTP/HTTPS), port scan prevention (SYN-FIN, SYN-RST, Xmas, NULL, FIN scan)
VLAN	Port and tag-based VLAN separation
Mobile Quota Control	Mobile data limit, customizable period, start time, warning limit, phone number
WEB Filter	Allow/block list for websites
Access Control	Flexible access control for SSH, Web UI, CLI, Telnet
TPM*	Identification/authentication module, TPM 2.0 standard *Feature availability varies by order code
Certificate Manager	Creation of CA, server, client, Let’s Encrypt, SCEP certificates
VPN
OpenVPN	Multiple clients and server can run simultaneously, 27 encryption methods
IPsec	XFRM, IKEv1, IKEv2, 14 encryption methods (3DES, DES, AES128/192/256, AES-GCM, etc.)
GRE	GRE tunnel, GRE over IPsec support
PPTP/L2TP	Client/Server, L2TPv3, L2TP over IPsec support
Stunnel	TLS encryption proxy for existing clients/servers without code changes
DMVPN	Phase 2 & 3, Dual Hub support
SSTP	Client instance support
ZeroTier	VPN client support
WireGuard	VPN client and server support
Tinc	Encryption, authentication, compression; client/server support
Tailscale	Point-to-point WireGuard-based VPN, fast and simple
OPC UA
Supported Modes	Client, Server
Connection Types	TCP
MODBUS
Supported Modes	Server, Client
Connection Types	TCP, USB
Custom Registers	MODBUS TCP custom register block requests, read/write to file inside router
Supported Data Formats	8/16/32-bit INT/UINT/float, HEX, ASCII; multiple byte orders (ABCD, DCBA, CDAB, BADC)
DLMS/COSEM
DLMS Support	Standard protocol for utility meter data exchange
Supported Modes	Client
Supported Connection Types	TCP, USB
API
Teltonika Networks Web API	Beta support; configurable endpoints to retrieve/change data documentation
Monitoring & Management
WEB UI	HTTP/HTTPS, status, config, FW update, CLI, logs, Internet status
FOTA	Firmware update from server, automatic notification
SSH	SSH v1/v2 access
SMS	Status, configuration
Call	Reboot, status, mobile/Wi-Fi/power toggle, timer, answer/hang-up
TR-069	OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP
MQTT	Broker, Publisher
SNMP	v1/v2/v3, SNMP Trap, brute-force protection
JSON-RPC	Management API over HTTP/HTTPS
RMS	Teltonika Remote Management System
IoT Platforms
ThingWorx	Monitor WAN Type, WAN IP, Mobile Operator, Signal, Network Type
Cumulocity - Cloud of Things	Monitor device model, serial, WAN Type/IP, Mobile Cell ID, ICCID, IMEI, Connection, Operator, Signal; reboot & FW upgrade actions
Azure IoT Hub	Send all parameters to cloud, Direct method support, Plug & Play device provisioning
AWS IoT Core	Interact with AWS cloud, Jobs support via device API
System Characteristics
CPU	Quad-core ARM Cortex A7, 717 MHz
RAM	256 MB
FLASH Storage	256 MB
USB
Data Rate	USB 2.0
Applications	Samba share, USB-to-serial
External Devices	HDD, flash drive, additional modem, printer, USB-serial adapter
Storage Formats	FAT, FAT32, exFAT, NTFS (read-only), ext2/3/4
Input/Output
Digital Input	1 x DI, 0-6 V low, 8-30 V high
Digital Output	1 x DO, Open collector, max 30 V, 300 mA
Events	Email, RMS, SMS
I/O Juggler	Set conditions to trigger events
Power
Connector	4-pin industrial DC power socket
Input Voltage Range	9 – 50 VDC, reverse polarity protection, surge >51 VDC 10µs
PoE (Passive)	LAN1 port, 9-50 VDC, Mode B, not IEEE802.3af/at/bt compatible
Power Consumption	Idle: <4 W, Max: <16.5 W
Physical
Ethernet Ports	5 x RJ45, 10/100/1000 Mbps
I/O Ports	1 x DI, 1 x DO on 4-pin power connector
Status LEDs	4 WAN type, 3 Mobile type, 3 Mobile strength, 10 Ethernet, 1 Power, 2 Wi-Fi 2.4G/5G
SIM	2 x Mini SIM (2FF), 1.8V/3V
Antennas	4 x SMA Mobile, 2 x RP-SMA Wi-Fi, 1 x SMA GNSS
USB	1 x USB A for external devices
Reset	Reboot/User default/Factory reset button
Other	1 x Grounding screw
Physical Specification
Casing Material	Aluminium housing
Dimensions (W x H x D)	132 x 44.2 x 95.1 mm
Weight	533 g
Mounting Options	DIN rail, wall mount, flat surface (additional kit required)
Operating Temperature	-40 °C to 75 °C
Operating Humidity	10% to 90% non-condensing
Ingress Protection	IP30
Regulatory & Type Approvals
Regulatory	CE/RED, UKCA, RCM, IMDA, CB, E-mark, SIRIM, ETSI EN 303 645, SDPPI (POSTEL)
Operator	NOS (Portugal)
EMC Emissions & Immunity	EN 55032, EN 55035, EN IEC 61000-3-2/3, EN 301 489-x series, etc.
ESD	EN 61000-4-2
Radiated Immunity	EN IEC 61000-4-3
EFT	EN 61000-4-4
Surge	EN 61000-4-5
Safety Standards	CE: EN IEC 62368-1:2020 + A11:2020, EN 62311:2020; RCM: AS/NZS 62368.1:2022; CB: IEC 62368-1:2018

FAQs

Q1: What is the Teltonika RUTX50 and what is it used for?
A: The Teltonika RUTX50 is an industrial‑grade 5G router that delivers ultra‑fast cellular connectivity alongside wired and wireless local networking. It’s designed for high‑speed internet access in remote, industrial, and IoT applications where reliable network performance is needed.

Q2: What cellular and wireless technologies does the Teltonika RUTX50 support?
A: The RUTX50 supports 5G Sub‑6 GHz networks for high‑speed data and low latency, with backward compatibility to 4G LTE Cat 20 and 3G. It also includes dual‑band Wi‑Fi to provide local wireless connectivity for multiple devices.

Q3: How many Ethernet ports does the Teltonika RUTX50 have and what speeds do they support?
A: This router features five Gigabit Ethernet ports that can be configured for WAN or LAN roles, delivering 10/100/1000 Mbps wired connectivity to network devices and local networks.

Q4: What advanced routing and failover features are included in the Teltonika RUTX50?
A: The RUTX50 offers dual SIM auto‑failover for resilient cellular connectivity, advanced routing tools, secure firewall options, and support for various VPN protocols, making it suitable for critical network infrastructures.

Q5: What physical and industrial features does the Teltonika RUTX50 provide?
A: Built with a robust industrial design, the RUTX50 can operate in a wide temperature range and includes multiple antenna connections for improved cellular and Wi‑Fi performance, making it suitable for harsh environments and mission‑critical deployments.

Resources

RUTX50 Manual - Teltonika Networks Wiki

Featured Products

Teltonika RUTX50

Ubiquiti UniFi G4 Doorbell Pro

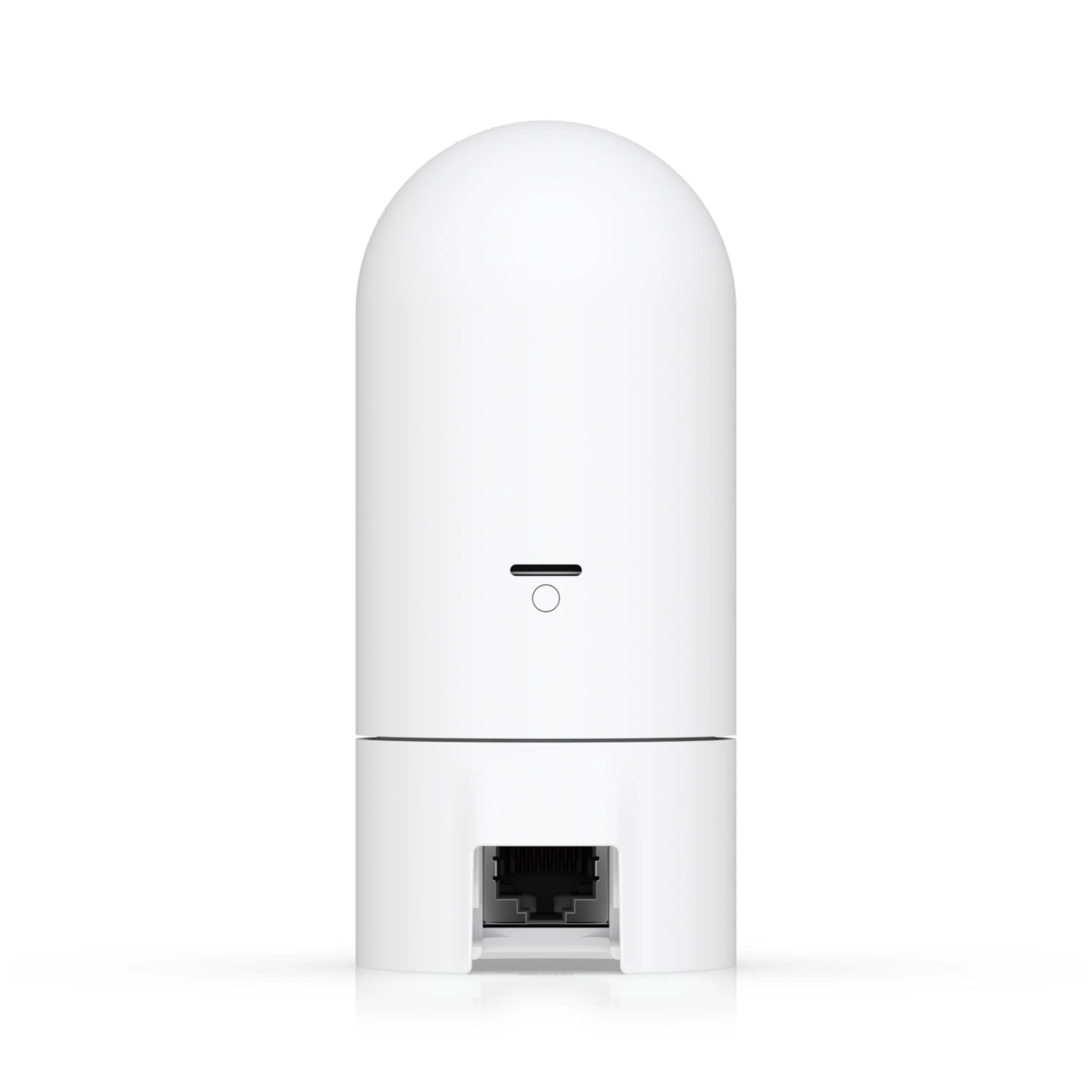

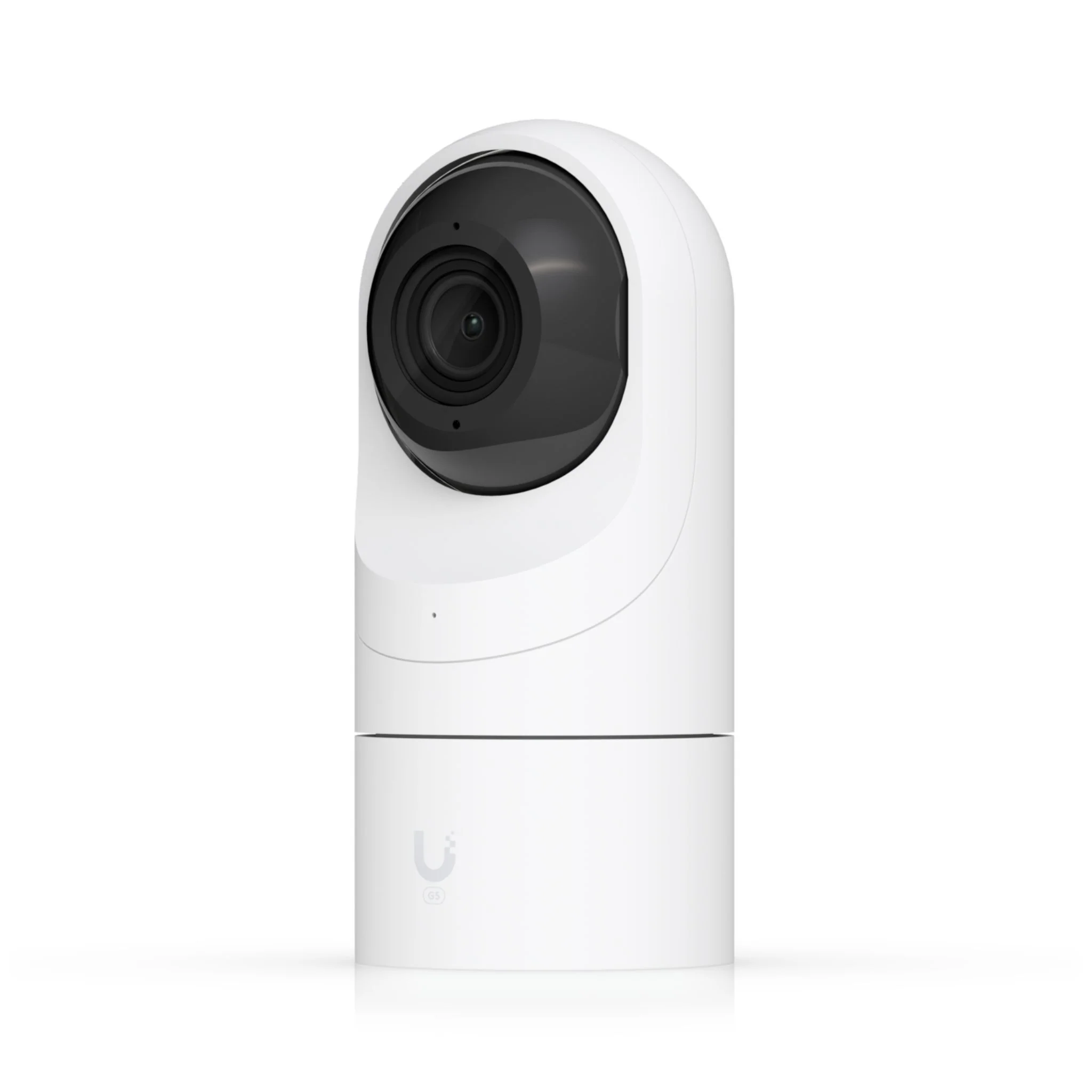

Ubiquiti UniFi G5 Flex

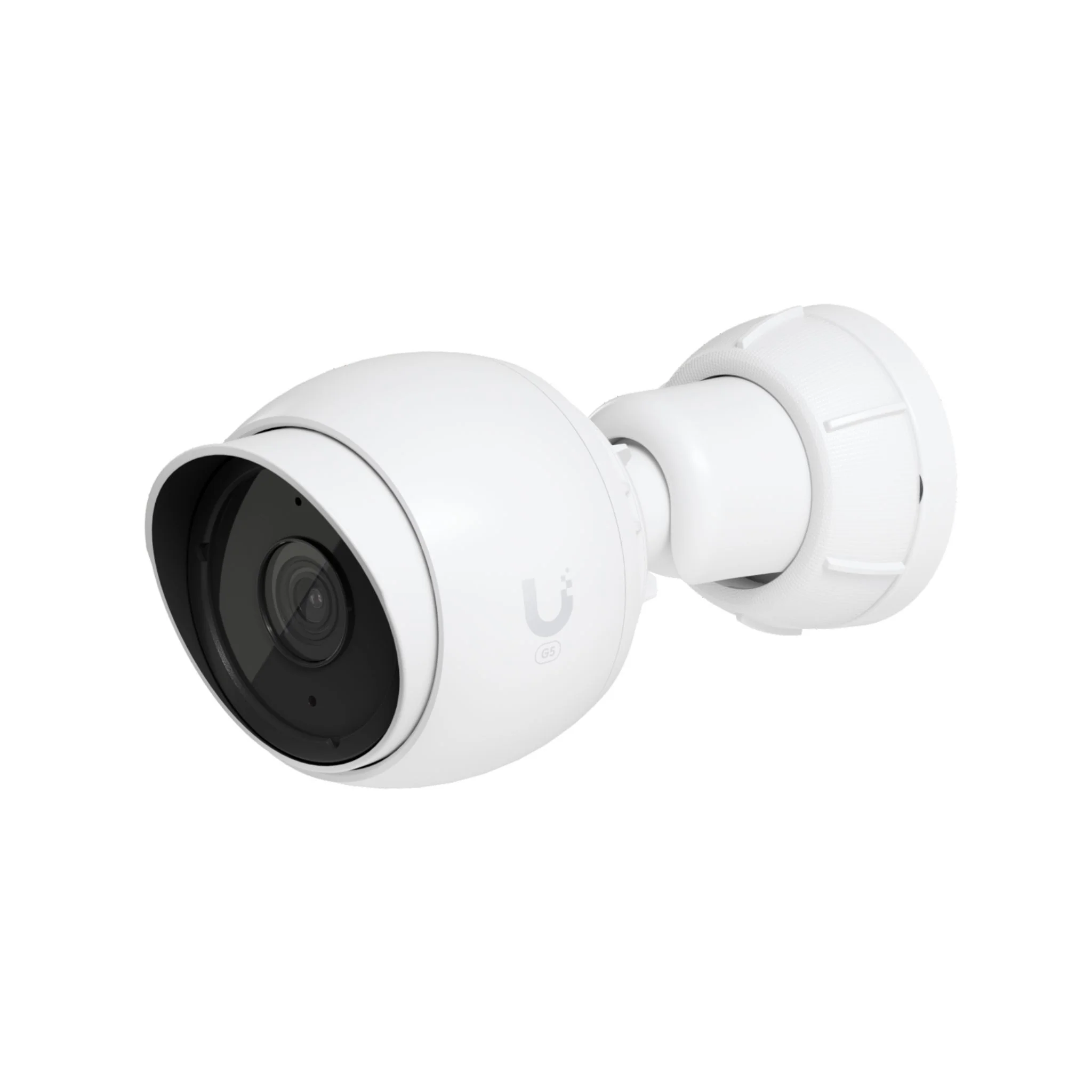

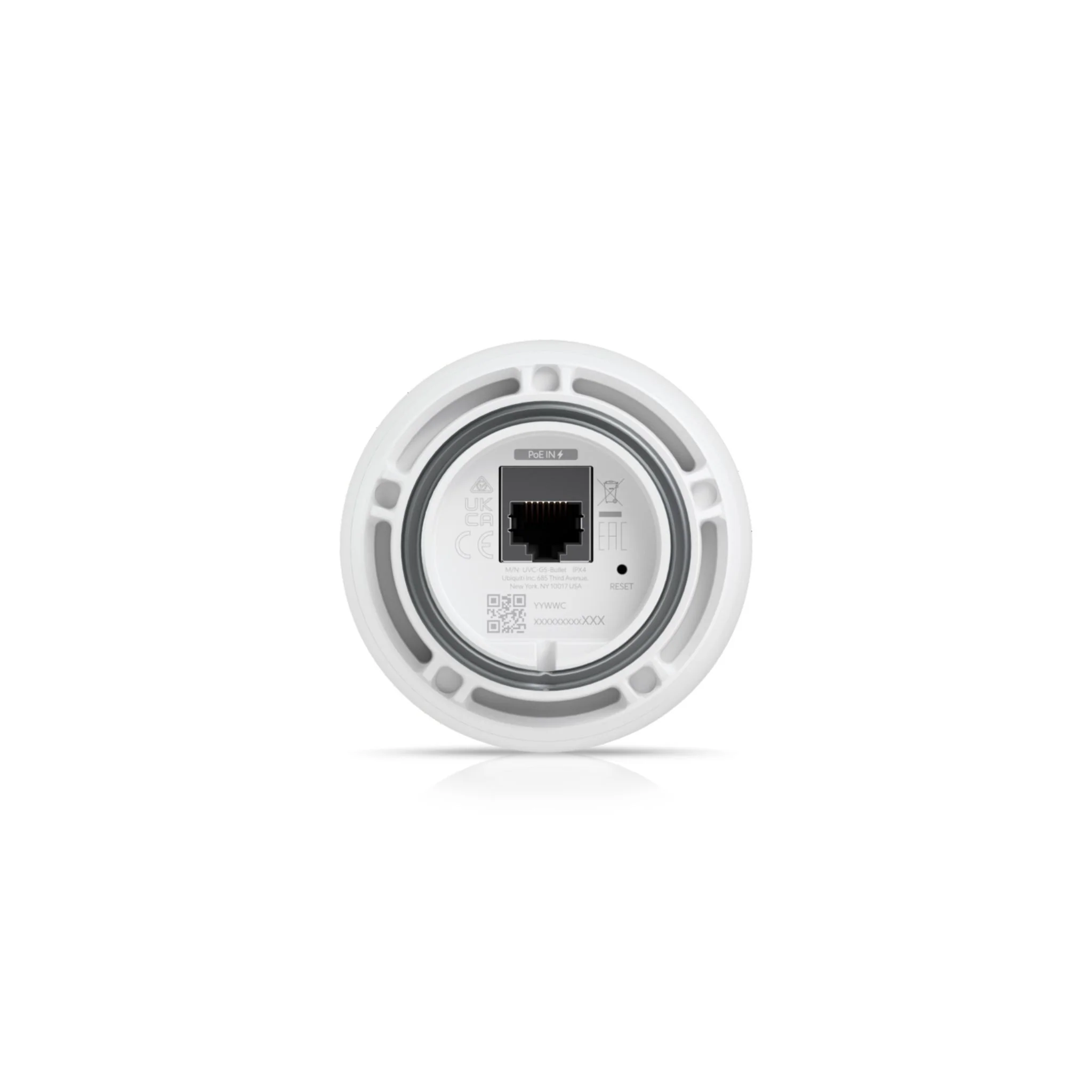

Ubiquiti UniFi G5 Bullet
